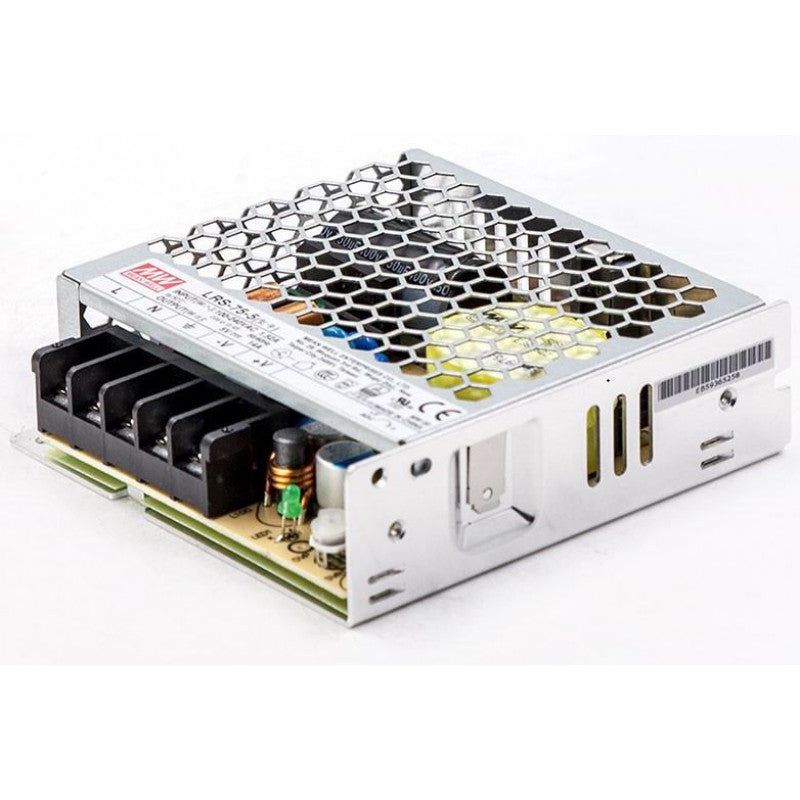

Mean Well LRS-75-5 5V 14A 70W Enclosed SMPS Power Supply
Regular price
₹1,415
Regular price
₹2,500
Sale price
₹1,415
Incl. all taxes • Shipping calculated at checkout.
Price excl. GST
₹1,199.15
GST @ 18% included in above product price
Authorized Dealer
GST Invoice
PAN India Delivery
Fast Dispatch
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Works well with
Unison 901 ZDA 60 90 01 CU2, SSR Dc to Ac, 90amp (heat sink not included)
₹1,350
Delta DVP14SS211R PLC 8DI/6DO relay Outpput
₹7,550
EAPL B1DCA-X Cyclic Timer
₹1,425
Unison 901 ZDA 48 40 01 AL5, SSR Dc to Ac, 40amp
₹605
Description
LRS-75-5, an enclosed power supply from Mean Well, rated 5 VDC output at 14 AMP, 70W output power.
Output voltage
5 VDC
Output current
14 AMP
Power
70W
Input voltage
85 to 264V AC 120 to 373V DC
Technical specifications
| Make | Mean Well |
| Model | LRS-75-5 |
| Output voltage | 5 VDC |
| Output current | 14 AMP |
| Input voltage | 85 to 264V AC 120 to 373V DC |
| Product Category | Switching Power Supplies |
| Output Voltage-Channel 1 | 5 VDC |
| Number of Outputs | 1 Output |
| Open Frame/Enclosed | Enclosed |
| Output Current-Channel 1 | 14 A |
| Industry | Industrial |
| Mounting Style | Panel |
| Length | 99 mm |
| Width | 97 mm |
| Height | 30 mm |
| Input Frequency | 47 Hz to 63 Hz |
| Packaging | Bulk |
| Subcategory | AC-DC Power Supply |
| Unit Weight | 300 g |
Frequently asked questions about the Mean Well LRS-75-5
What is the output of the Mean Well LRS-75-5?
The LRS-75-5 is rated 5 VDC output, output current 14 AMP, 70W.
What input voltage does the LRS-75-5 accept?
The LRS-75-5 accepts an input of 85 to 264V AC 120 to 373V DC, as listed on this page.
How is the LRS-75-5 mounted?
Mounting style: Panel.
Where can I download the LRS-75-5 datasheet?
You can download it from the datasheet section on this page: LRS-75-5 datasheet.
Is the LRS-75-5 genuine, and do you provide a GST invoice?
Yes. Voltkart is an authorised dealer of Mean Well, so you receive genuine Mean Well products, and every order comes with a GST invoice.
Can I order the LRS-75-5 in bulk for OEM or wholesale use?
Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.
