Electronic Timers

Timer price on Voltkart: Selec DIN-rail timers from ₹540, EAPL from ₹990, and digital panel timers from ₹1,330, including GST. Every Selec timer is in the first table; EAPL, Swastik, Multispan and Alion follow.

Electronic timers switch a contact after a set time. They are used for motor starting (star-delta), delayed start, cyclic operation of pumps and fans, process sequencing and lighting control. This range covers on-delay, off-delay, interval, cyclic, star-delta, multifunction, digital and sequential timers, plus digital time switches. Prices checked 6 October 2026. Reviewed by Amit, Voltkart.

Selec timer price list (incl. GST)

EAPL, Swastik, Multispan and Alion timer prices

Click a model to open the product. The product page always shows the live price and stock.

How to choose a timer

• Function: on-delay, off-delay, interval, cyclic or star-delta, or a multifunction timer that covers several.
• Time range: make sure the maximum set time covers your application.
• Supply voltage: 230 V AC, 415 V AC, 24 V DC or a universal supply, to match your control circuit.
• Mounting: DIN rail (17.5/22.5 mm) inside the panel, or a panel cut-out (48 × 48, 72 × 72, 96 × 96 mm), plug-in 8/11-pin with a base.
• Display: analog knob setting, or digital with a display of the set and elapsed time.

Learn more: all about electronic timers and time switches. Brand ranges: Selec · EAPL · Swastik.

Frequently asked questions

What is the price of a Selec timer?

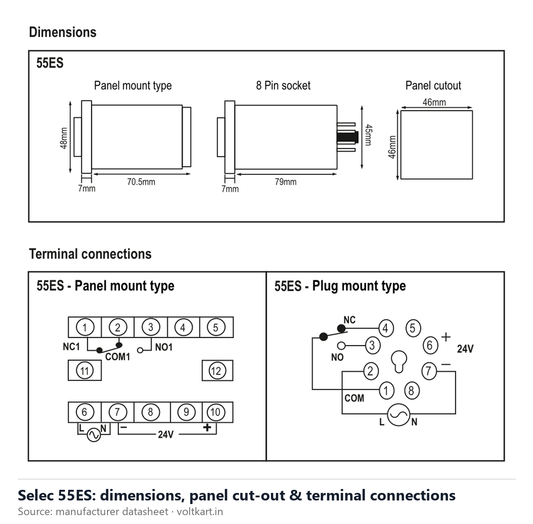

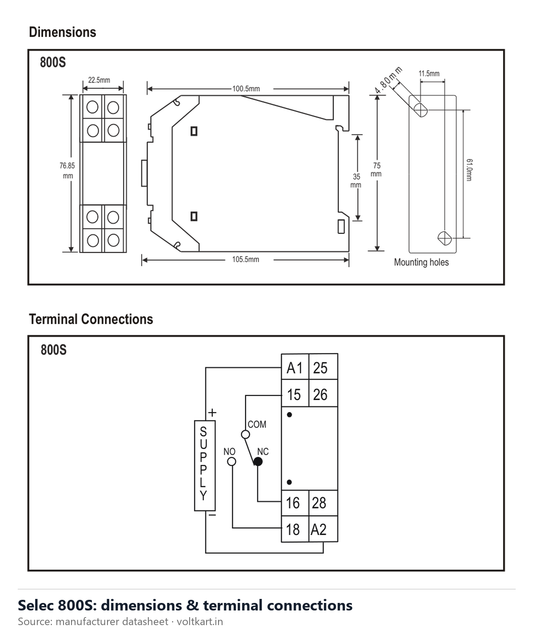

On Voltkart Selec timers start at ₹540 for the 800S on-delay DIN-rail timer. The 800SD star-delta timer is ₹680, the 55ES 48 × 48 analog panel timer ₹640, and XT digital timers start at ₹1,550. All prices include GST.

What is the difference between on-delay and off-delay timers?

An on-delay timer switches its output after the set time once it is powered or triggered. An off-delay timer switches on immediately and switches off after the set time once the trigger is removed. Cyclic timers repeat on/off periods, and star-delta timers change a motor starter from star to delta.

Which timer do I need for a star-delta starter?

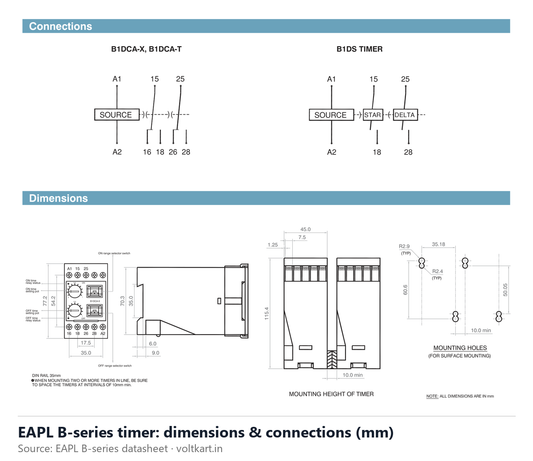

Use a dedicated star-delta timer such as the Selec 800SD-2 (230 V ₹680, 415 V ₹810) or the EAPL B1DS (₹1,590). Choose the version that matches your control supply voltage.

DIN-rail or panel-mount timer?

DIN-rail timers (17.5 or 22.5 mm wide) clip inside the panel next to contactors. Panel-mount timers (48 × 48, 72 × 72 or 96 × 96 mm) fit a door cut-out so the operator can see and set the time. Digital timers show the elapsed time.

Is Voltkart an authorised distributor for these timers?

Voltkart is an authorised distributor of Selec, EAPL and Swastik, with a GST invoice on every order. We also stock genuine Multispan and Alion timers.

Authorised distributor pages: Selec · EAPL.

Not sure which model you need? Send the part number or your application on WhatsApp at 8800754881 (Mon–Sat, 12:30–7 pm) and we will help you choose. For bulk or OEM quantities, ask for a quote on the same number.
