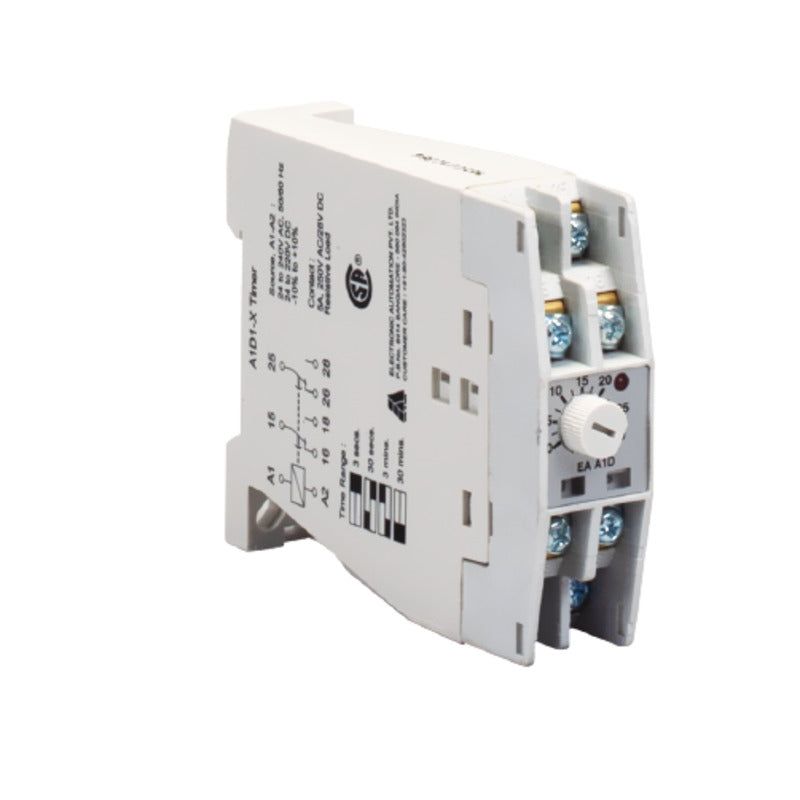

EAPL A1DH-1 Off Delay Timer
Regular price
₹990
Regular price
₹1,120
Sale price
₹990
Incl. all taxes • Shipping calculated at checkout.
Minimum order is ₹1,001. Buy 2 of this item, or add other items to reach it.
Price excl. GST
₹838.98
GST @ 18% included in above product price
Authorized Dealer
GST Invoice
PAN India Delivery
Fast Dispatch
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Works well with
Schneider LC1D09, 9Amp Contactor
₹1,421
Schneider LC1E0910, 9Amp Contactor, coil voltage 220vac
₹1,056
Schneider LC1D12, 12Amp Contactor
₹1,600
Schneider LC1E1210, 12Amp Contactor, coil voltage 220vac
₹1,210
Schneider LC1D18, 18Amp Contactor
₹1,857
Schneider LC1E1810, 18Amp Contactor, coil voltage 220vac
₹1,400
Description
A1DH-1 is an EAPL timer -- power-off delay -- verified against EAPL’s own official product catalogue.
Supply voltage
240V AC
Time range
18 to 180 seconds
Output
2 C/O relay, 0.5A @ 250V AC / 28V DC resistive
Dimensions (W x H x D)
22.5 x 75 x 102mm (W x H x D)
Technical specifications
| Make | EAPL |
| Model | A1DH-1 |
| Function | Power-off delay |
| Supply voltage | 240V AC |
| Time range | 18 to 180 seconds |
| Output | 2 C/O relay, 0.5A @ 250V AC / 28V DC resistive |
| Dimensions (W x H x D) | 22.5 x 75 x 102mm (W x H x D) |
| Mounting | DIN rail or screw mounting |
| Note | Minimum 2 seconds of auxiliary supply must be applied each cycle, or the timer may malfunction |
Frequently asked questions about the EAPL A1DH-1
What is the supply voltage of the A1DH-1?
240V AC, per EAPL’s official catalogue.
What is the time range of the A1DH-1?
18 to 180 seconds, per EAPL’s official catalogue.
What is the output of the A1DH-1?
2 C/O relay, 0.5A @ 250V AC / 28V DC resistive, per EAPL’s official catalogue.
What are the dimensions (w x h x d) of the A1DH-1?
22.5 x 75 x 102mm (W x H x D), per EAPL’s official catalogue.
Where can I download the A1DH-1 specifications?
You can download EAPL’s official product catalogue from the link on this page: A1DH-1 catalogue.
Is the A1DH-1 genuine, and do you provide a GST invoice?
Yes. Voltkart stocks genuine EAPL products, and every order comes with a GST invoice.
Can I order the A1DH-1 in bulk for OEM or wholesale use?
Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.
