MINILEC

Minilec price list 2026: 16 genuine Minilec relays and controllers from ₹830 including GST. Voltkart is an authorised Minilec distributor, with a GST invoice on every order and delivery across India.

Minilec is an Indian maker of pump and motor protection relays, phase and voltage monitors and water level controllers, widely used in pump starters, motor control panels and building services. Prices checked 8 October 2026. Reviewed by Amit, Voltkart.

Minilec price list (live prices)

Pump protection and single phasing preventers

Model	What it does	Price (incl. GST)

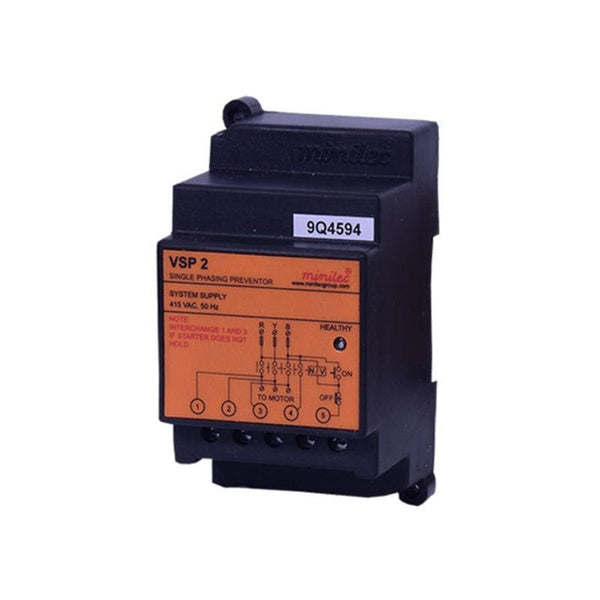

Minilec VSP 2	Single phasing and reverse phase preventer for 3-phase pumps, any HP	₹830
Minilec VSP D1	Single phasing preventer, fixed unbalance, auto reset	₹1,185
Minilec VPG D1	Phase failure plus low water level guard for open-well pumps	₹1,530
Minilec VSP D2	Single phasing preventer, adjustable unbalance, selectable reset	₹1,688

Water level controller

Model	What it does	Price (incl. GST)

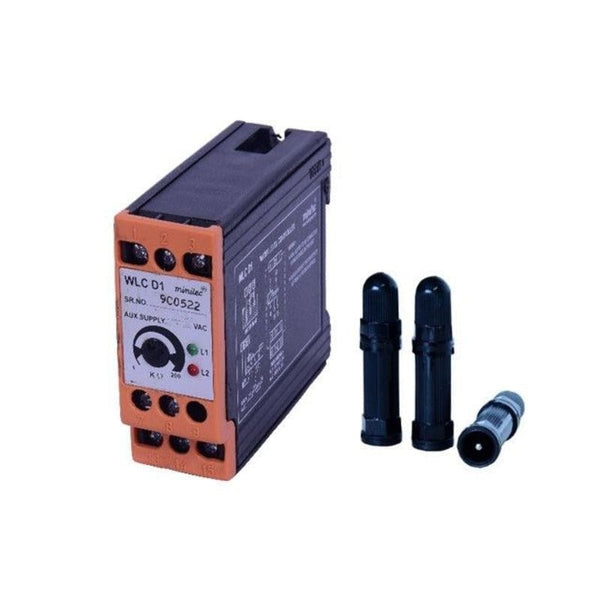

Minilec WLC D1	Single tank, 3 conductive probes, starts and stops the pump between two levels; 240 V or 415 V supply	₹1,540

Phase and voltage protection relays

Model	What it does	Price (incl. GST)
Minilec S1 VMR 7	Phase sequence relay, instant trip	₹1,020
Minilec S2 VMR 3	Phase sequence, adjustable unbalance and under/over voltage	₹2,019
Minilec ALV D2	Adjustable under/over voltage, fixed unbalance	₹2,510
Minilec D2 VCT 1	Under/over voltage with phase-phase or phase-neutral trip points	₹3,080

Motor protection

Model	What it does	Price (incl. GST)
Minilec S2 WTR1	Motor winding temperature relay (PTC thermistor)	₹2,000
Minilec MPR D2	Current-sensing motor protection: phase failure, sequence, unbalance, overload; needs an S2 CTS sensor	₹2,600
Minilec S2 CTS 1/5	Current sensor for MPR D2, motors up to 3 HP	₹866
Minilec S2 CTS 1/10	Current sensor, motors up to 6 HP	₹866
Minilec S2 CTS 1/20	Current sensor, motors up to 12.5 HP	₹866
Minilec S2 CTS 1/40	Current sensor, motors up to 30 HP	₹866

Pump alternation

Model	What it does	Price (incl. GST)
Minilec S2 ALT 1	Alternates two pumps or motors on each cycle for even wear	₹1,690

Compare Minilec with Selec, EAPL and Teknika relays on the protection relays page, or see other level controllers.

Frequently asked questions

Is Voltkart an authorised Minilec distributor?

Yes. Voltkart is an authorised distributor of Minilec, supplying genuine Minilec relays and controllers with a GST invoice and delivery across India. See the Minilec distributor page.

Which Minilec relay is used for a submersible or borewell pump?

The VSP 2 or VSP D1 single phasing preventer is the usual choice in a three-phase pump starter. For open wells that can run dry, the VPG D1 adds a low water level input.

How does the Minilec WLC D1 water level controller work?

Three stainless steel probes are hung in the tank. When the water falls below the lower probe the controller starts the pump, and when it reaches the upper probe it stops it. It runs on 240 V or 415 V AC and mounts on DIN rail or a panel.
