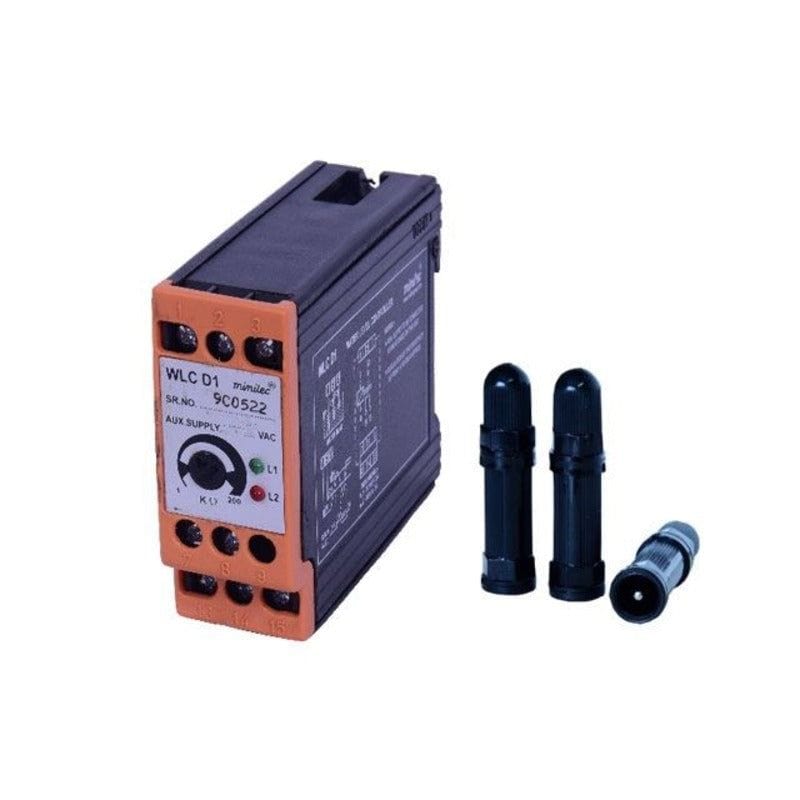

Minilec WLC D1 Water Level Controller (with probe, 240V/415V AC)
Regular price
₹1,540
Regular price
Sale price
₹1,540
Incl. GST
Delivery ₹160 (₹99 in DL, UP, HR, HP) · free on orders of ₹3,001+ · Details
Price excl. GST
₹1,305.08
GST @ 18% included in above product price
Couldn't load pickup availability
1-year manufacturer warranty · Burnt or wiring damage not covered · Warranty terms
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Works well with
Selec WLCA2M1-CE Water Level Controller, Single Tank Fill / Drain, 3 Probes, 85-270V AC/DC, DIN Rail
₹1,450
Minilec VPG D1 Phase Failure Relay with Low Water Level Guard
₹1,530
Minilec VSP D2 Phase Failure Relay, Single Phase Preventor, 2 CO, Adjustable (240V/415V AC)
₹1,688
Minilec VSP D1 Phase Failure Relay, Single Phase Preventor, 1 CO (240V/415V AC)
₹1,185
Description
WLC D1 is a conductive-probe water level controller for a single tank, switching a pump on/off between two electrode levels, verified against Minilec’s own official product page.
Minilec model WLC D1 is also written as WLCD1.
Auxiliary supply
240V AC, or 415V AC ±10%, 50/60Hz
Input sensors
3 electrodes
Sensitivity
1KΩ to 200KΩ (adjustable)
Output contacts
1 CO
Technical specifications
| Make | Minilec |
| Model | WLC D1 |
| Auxiliary supply | 240V AC, or 415V AC ±10%, 50/60Hz |
| Input sensors | 3 electrodes |
| Sensitivity | 1KΩ to 200KΩ (adjustable) |
| Output contacts | 1 CO |
| Trip time delay | Less than 1 second |
| Dimensions (L x W x D) | 76 x 30.5 x 117.5mm |
| Mounting | 68mm centre-to-centre panel mount, or 35mm DIN rail |
| Weight | Unit 300g, each sensor 50g |
Frequently asked questions about the Minilec WLC D1
What is the auxiliary supply of the WLC D1?
240V AC, or 415V AC ±10%, 50/60Hz, per Minilec’s official specifications.
What are the input sensors of the WLC D1?
3 electrodes, per Minilec’s official specifications.
What is the sensitivity of the WLC D1?
1KΩ to 200KΩ (adjustable), per Minilec’s official specifications.
What are the output contacts of the WLC D1?
1 CO, per Minilec’s official specifications.
Where can I download the WLC D1 datasheet?
You can download it from the datasheet section on this page: WLC D1 datasheet.
Is the WLC D1 genuine, and do you provide a GST invoice?
Yes. Voltkart is an authorised dealer of Minilec, so you receive genuine products, and every order comes with a GST invoice.
Can I order the WLC D1 in bulk for OEM or wholesale use?
Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.
Explore more Minilec products
Need help choosing the right relay?
Voltkart is an authorised dealer of Minilec. Tell us your motor/pump setup and we will help you pick the correct model.
Wiring and selection help: see our water level controller guide for 3-probe placement, wiring to a pump contactor and a comparison with the Selec WLCA2M1-CE.
