Description

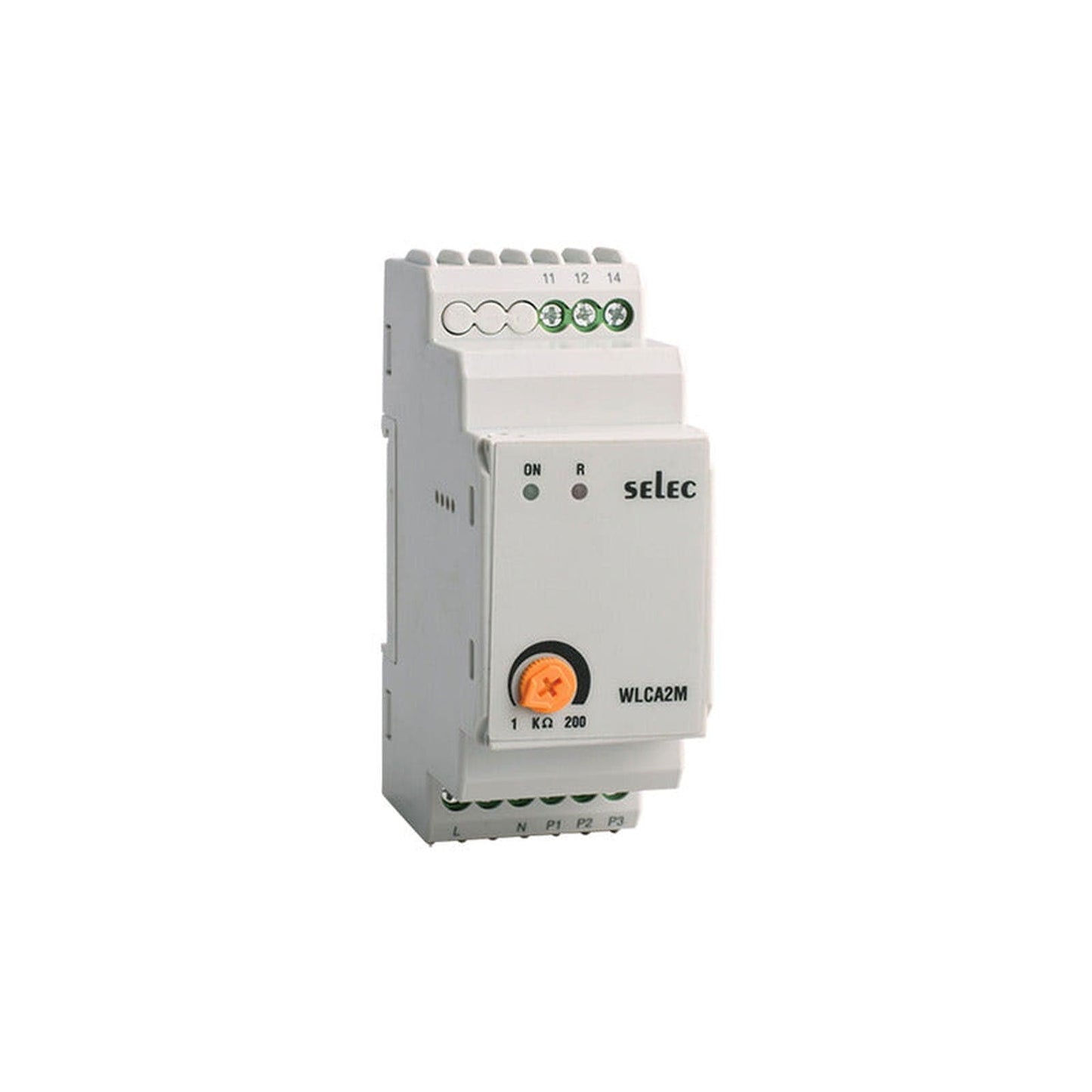

WLCA2M1-CE, a level controller from Selec. The Selec WLCA2M1-CE Water Level Controller is a reliable liquid level monitoring and pump control device designed for automatic water tank management. It continuously monitors conductive liquid levels using stainless steel probes and automatically controls pump operation to prevent tank overflow and dry running conditions. With a wide operating supply voltage of 85-270V AC/DC, adjustable sensitivity from 1kΩ to 200kΩ, and a 10A SPDT output relay, the WLCA2M1-CE is suitable for residential, commercial, and industrial water management systems.

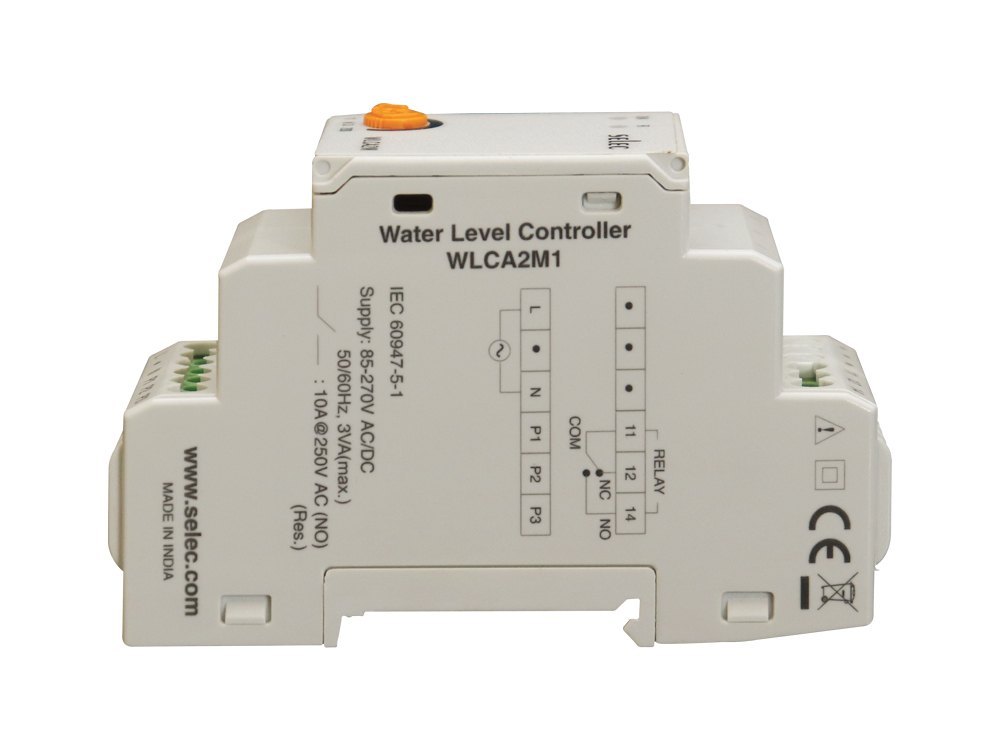

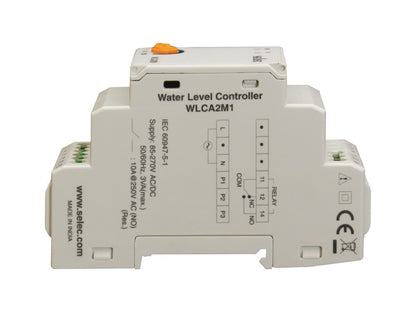

Technical specifications
| Make | Selec |
| Model | WLCA2M1-CE |
| Supply Voltage | 85-270V AC/DC |
| Output Contact | 1 C/O (SPDT) |
| Output Rating | 10A @ 250VAC / 28VDC |
| Input Sensors | 3 Stainless Steel Probes |
| Adjustable Sensitivity | 1kΩ to 200kΩ |
| Trip Time | Approximately 0.5 seconds |
| Mounting | 35mm DIN Rail |

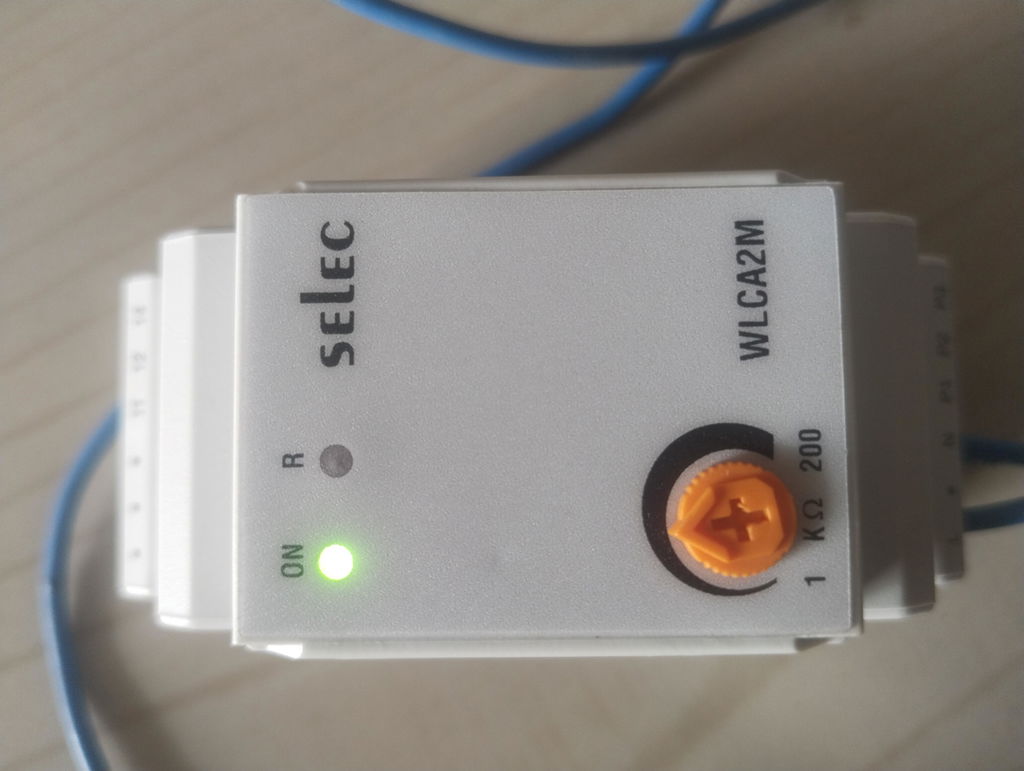

| LED Indication | Power ON and Relay ON |
| Certification | CE Certified |
| Application | Drain and Fill Control for Conductive Liquids |
Notable features
- Overhead water tank automation in residential buildings
- Underground sump to overhead tank pump control
- Commercial complexes and office buildings
- Industrial process water storage tanks
- Agriculture and irrigation water management systems
- Automatic drain and fill control for water tank applications
- Adjustable sensitivity allows operation with different conductive liquids
- 10A SPDT relay output enables direct control of pumps and contactors
More about the WLCA2M1-CE
The Selec WLCA2M1-CE is an automatic water level controller that monitors water levels in tanks and controls pumps accordingly. It helps maintain desired water levels while protecting pumps from dry-run conditions and preventing water wastage due to overflow.
Order the Selec WLCA2M1-CE Water Level Controller online from Voltkart for dependable automatic water level monitoring, pump protection, and efficient tank management.
Frequently asked questions about the Selec WLCA2M1-CE
What is the WLCA2M1-CE?
What is the supply voltage of the WLCA2M1-CE?
What is the output contact of the WLCA2M1-CE?
What is the mounting of the WLCA2M1-CE?
Where can I download the WLCA2M1-CE datasheet?
Is the WLCA2M1-CE genuine, and do you provide a GST invoice?
Can I order the WLCA2M1-CE in bulk for OEM or wholesale use?
Explore more Selec products
Wiring and selection help: see our water level controller guide for 3-probe placement, wiring to a pump contactor and a comparison with the Minilec WLC D1.

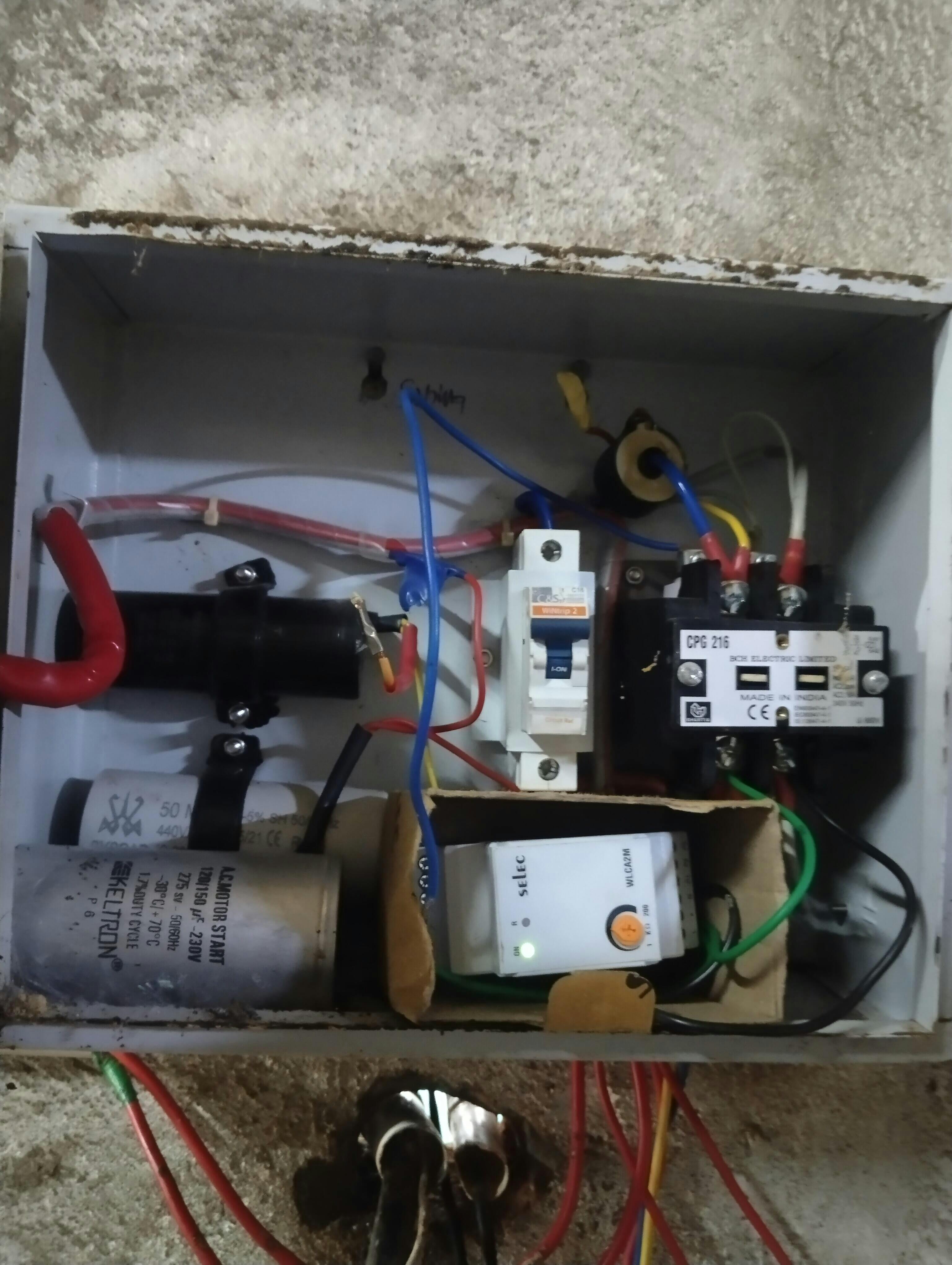

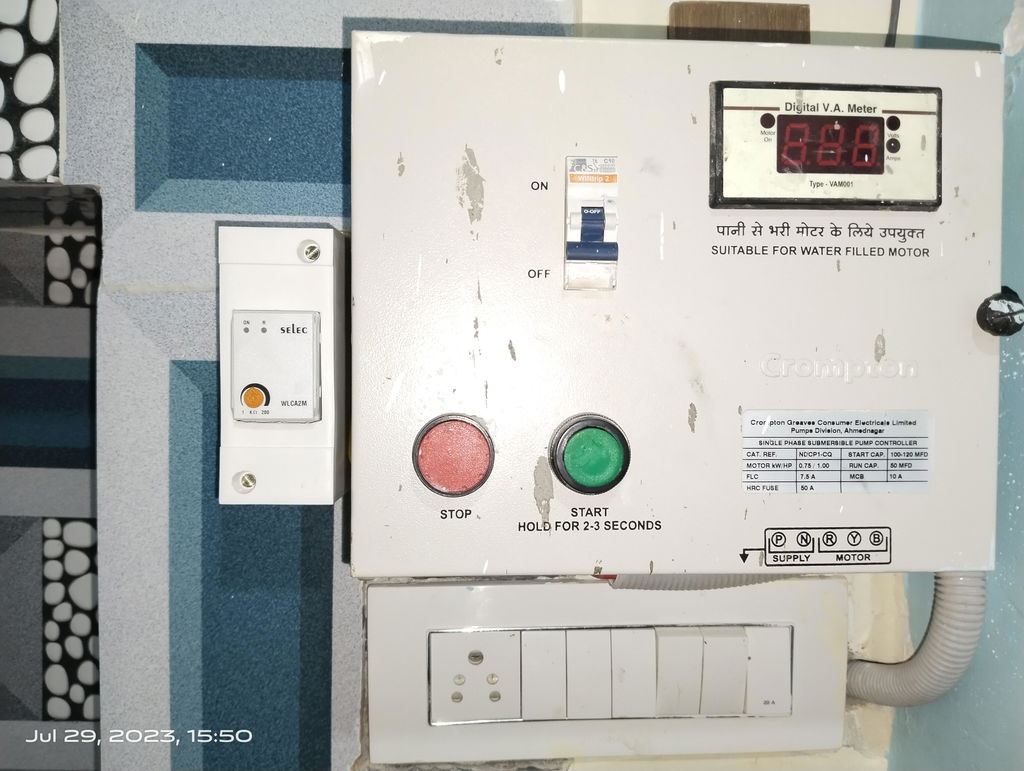

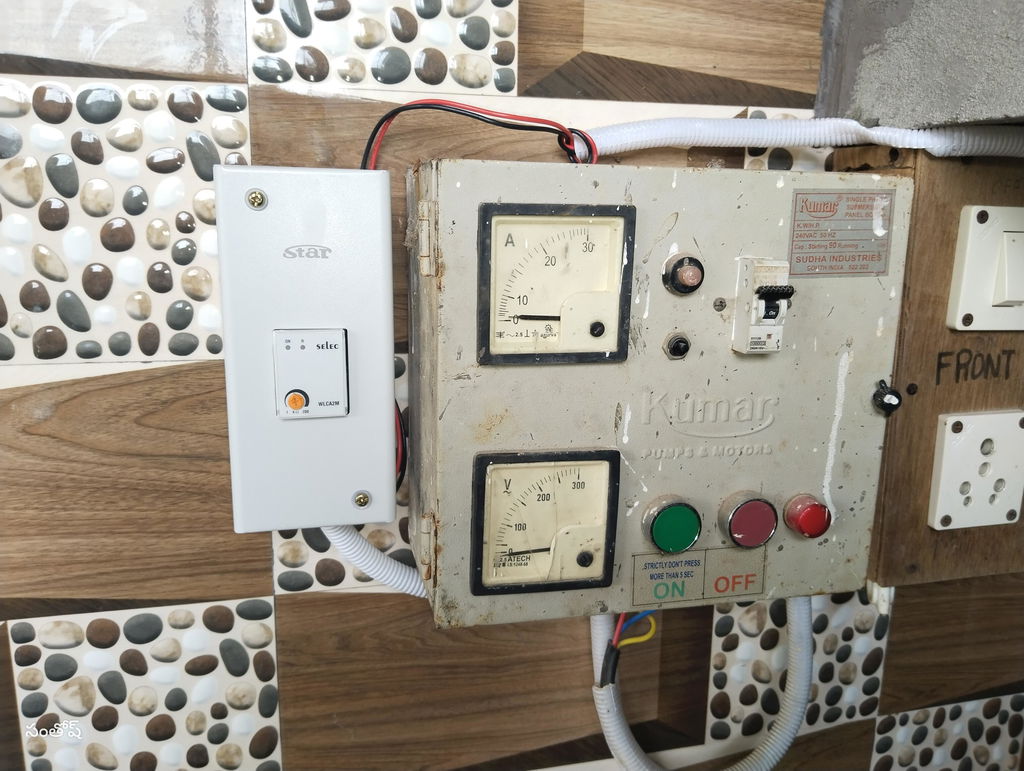

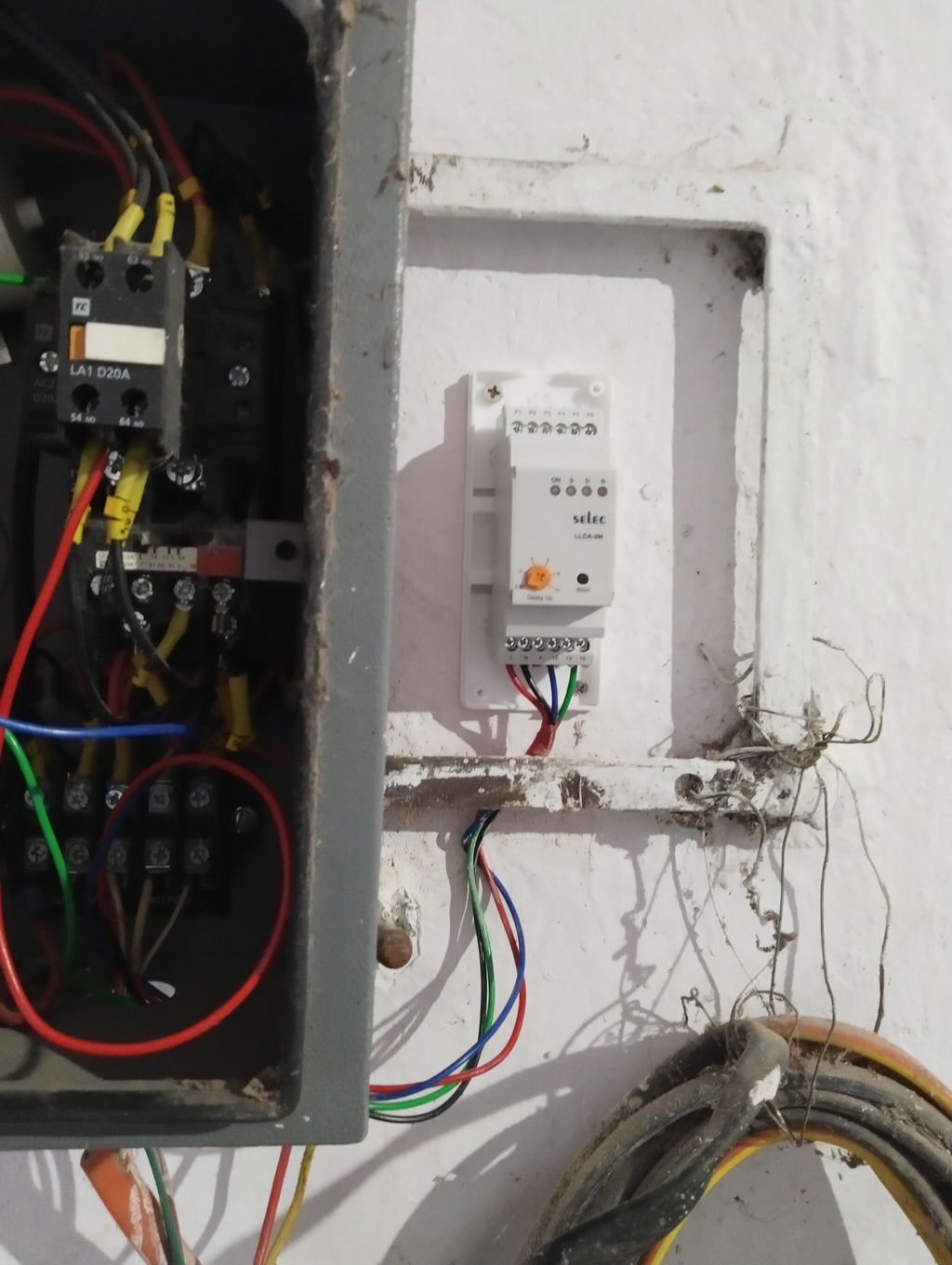

Iam fitting selec water level control in my area,super performance,i like it.

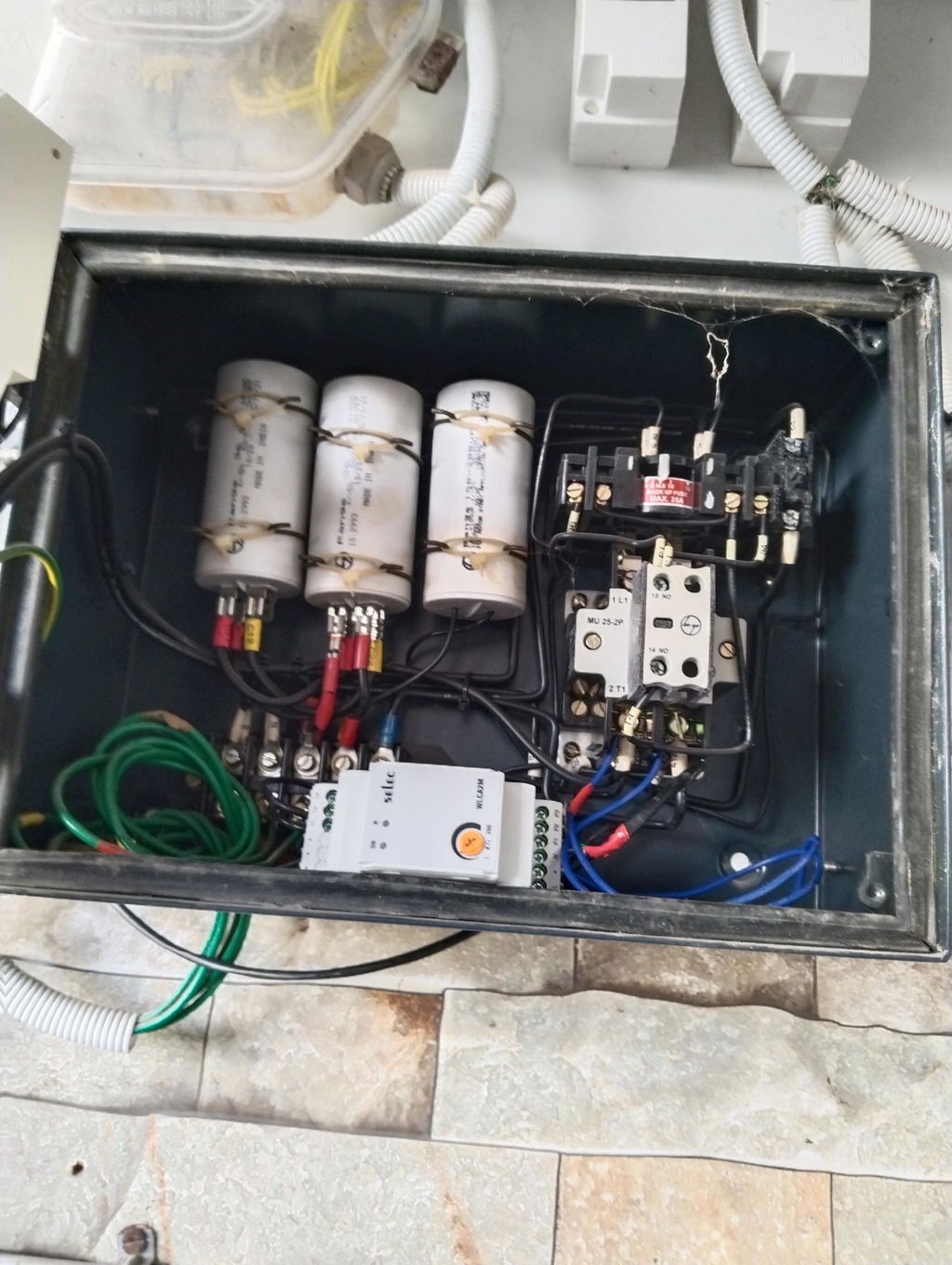

I am fitting more houses exllent wlc
