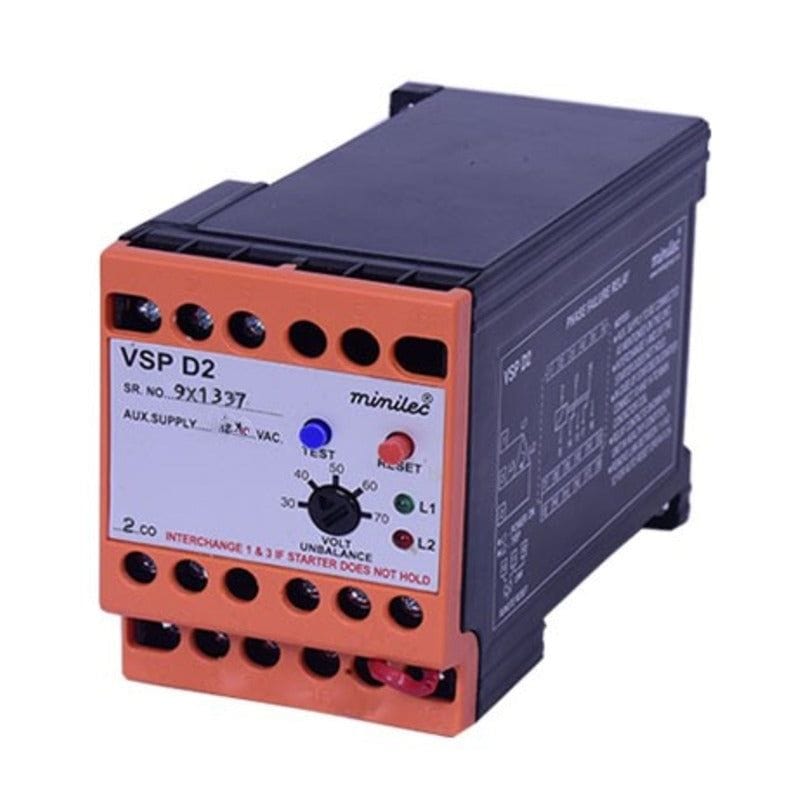

Minilec VSP D2 Phase Failure Relay, Single Phase Preventor, 2 CO, Adjustable (240V/415V AC)
Incl. all taxes • Shipping calculated at checkout.
Free delivery on orders above ₹3,000 · Delivery charges
1-year manufacturer warranty · Burnt or wiring damage not covered · Warranty terms
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Works well with
Schneider LC1D09, 9 Amp Contactor
₹1,421
Schneider LC1E0910, 9 Amp Contactor, coil voltage 220V AC
₹1,056
Schneider LC1D12, 12 Amp Contactor
₹1,600
Schneider LC1E1210, 12 Amp Contactor, coil voltage 220V AC
₹1,210
Schneider LC1D18, 18 Amp Contactor
₹1,857
Schneider LC1E1810, 18 Amp Contactor, coil voltage 220V AC
₹1,400
Description
VSP D2 is a single-phase preventor with an adjustable unbalance threshold and selectable reset mode, verified against Minilec’s own official product page. It is also called a phase failure relay or single phasing preventer: it trips the motor starter when a phase is lost or the three phase voltages are unbalanced beyond the set level, protecting the motor from overheating.
Minilec model VSP D2 is also written as VSPD2.
Technical specifications
| Make | Minilec |
| Model | VSP D2 |
| Supply voltage | 240V AC, or 415V AC ±20%, 50/60Hz (system and auxiliary) |
| Unbalance trip setting | 30V to 70V ±6V (adjustable) |
| Trip time delay | 3.5 ± 1.5 seconds |
| Output contacts | 2 CO |
| Reset | Auto, Manual, or Remote (selectable) |
| Contact rating | 5A @ 230V AC (resistive) |
| Dimensions (L x W x D) | 76 x 56.5 x 117.5mm |
| Mounting | 67 x 46mm panel mount, or 35mm DIN rail |
| Weight | 400g |
Frequently asked questions about the Minilec VSP D2
What is the supply voltage of the VSP D2?
What is the unbalance trip setting of the VSP D2?
What are the output contacts of the VSP D2?
What is the reset of the VSP D2?
Where can I download the VSP D2 datasheet?
Is the VSP D2 genuine, and do you provide a GST invoice?
Can I order the VSP D2 in bulk for OEM or wholesale use?
Explore more Minilec products
Compare all phase, voltage and pump protection relays with live prices →
New to voltage monitoring relays? Read our VMR relay guide: what each fault means, how to wire the relay in a DOL starter, and how to compare models.
Choose a single phasing preventer
A single phasing preventer (phase failure relay) switches off the motor starter when a phase is lost or the three voltages become unbalanced, before the motor overheats. Choose by supply voltage, whether you also want under/over-voltage protection, the number of output contacts and the mounting.
- Minilec VSP 2: for 3-phase pump motors; 415 V; fixed unbalance trip (40 V); 1 NO; auto reset
- Minilec VSP D1: 240 V or 415 V; fixed unbalance trip (40 V); 1 CO; auto reset
- Minilec VSP D2 (this relay): 240 V or 415 V; adjustable unbalance trip (30–70 V); 2 CO; auto, manual or remote reset
- Minilec ALV D2: 415 V; fixed unbalance trip plus adjustable under/over-voltage; 2 CO
- Minilec S2 VMR 3: 415 V; adjustable unbalance (4–20%) plus adjustable under/over-voltage; 2 CO; 35 mm DIN rail
- Selec 800PSR: phase sequence, phase failure and asymmetry; 154–500 V; 1 C/O; 22.5 mm DIN rail
Prices for all of them: protection relay price list. How to set and wire one: voltage monitoring relay guide.
