Minilec
-

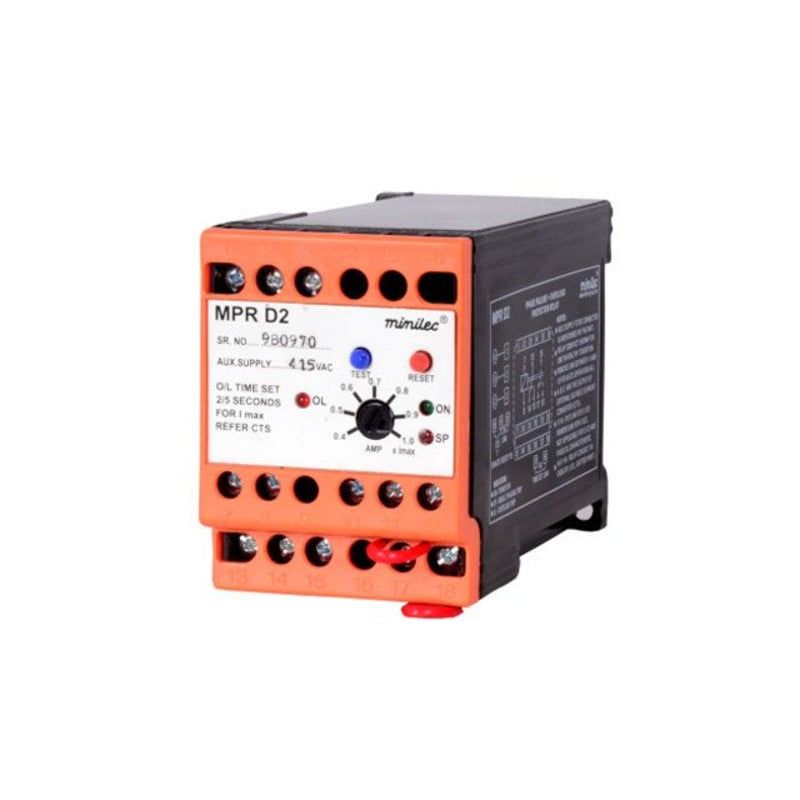

Minilec MPR D2 Motor Protection Relay (240V/415V AC)
Regular price
₹2,600
Regular price
Sale price
₹2,600
Incl. all taxes • Shipping calculated at checkout.
Free delivery on orders above ₹3,000 · Delivery charges
Price excl. GST
₹2,203.39
GST @ 18% included in above product price
1-year manufacturer warranty · Burnt or wiring damage not covered · Warranty terms
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Works well with
Schneider LC1D09, 9 Amp Contactor
₹1,421
Schneider LC1E0910, 9 Amp Contactor, coil voltage 220V AC
₹1,056
Schneider LC1D12, 12 Amp Contactor
₹1,600
Schneider LC1E1210, 12 Amp Contactor, coil voltage 220V AC
₹1,210
Schneider LC1D18, 18 Amp Contactor
₹1,857
Schneider LC1E1810, 18 Amp Contactor, coil voltage 220V AC
₹1,400
Description
MPR D2 is a current-sensing motor protection relay covering phase failure, sequence, unbalance and overload, fed from a matching S2 CTS1 current sensor, verified against Minilec’s own official product page.
Minilec model MPR D2 is also written as MPRD2.
Current input
From a matching S2 CTS1 sensor (sold separately)
Phase unbalance trip
50% ±10% of motor current
Overload trip
Above 120% of set current (IDMTL curve)
Reset
Auto, Manual, or Remote
Technical specifications
| Make | Minilec |
| Model | MPR D2 |
| Supply voltage | 240V AC, or 415V AC ±20%, 50/60Hz |
| Current input | From a matching S2 CTS1 sensor (sold separately) |
| Phase unbalance trip | 50% ±10% of motor current |
| Overload trip | Above 120% of set current (IDMTL curve) |
| Output contacts | 2 CO |
| Trip time delay | Phase failure 5.5±1.5s; overload 2/5s selectable (10/15/20s optional) |
| Reset | Auto, Manual, or Remote |
| Contact rating | 5A @ 230V AC (resistive) |
| Dimensions (L x W x D) | 76 x 56.5 x 117.5mm |
| Mounting | 67 x 46mm panel mount, or 35mm DIN rail |
| Weight | 425g |
Frequently asked questions about the Minilec MPR D2
What is the current input of the MPR D2?
From a matching S2 CTS1 sensor (sold separately), per Minilec’s official specifications.
What is the phase unbalance trip of the MPR D2?
50% ±10% of motor current, per Minilec’s official specifications.
What is the overload trip of the MPR D2?
Above 120% of set current (IDMTL curve), per Minilec’s official specifications.
What is the reset of the MPR D2?
Auto, Manual, or Remote, per Minilec’s official specifications.
Where can I download the MPR D2 datasheet?
You can download it from the datasheet section on this page: MPR D2 datasheet.
Is the MPR D2 genuine, and do you provide a GST invoice?
Yes. Voltkart is an authorised dealer of Minilec, so you receive genuine products, and every order comes with a GST invoice.
Can I order the MPR D2 in bulk for OEM or wholesale use?
Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.
