MCCB Molded Case Circuit Breaker

Schneider MCCB price on Voltkart: moulded case circuit breakers from 100 A to 1000 A in 3 and 4 pole, 25, 36, 50 kA breaking capacity, from ₹6,748 including GST. Every model is in the table below with its catalogue number.

A moulded case circuit breaker (MCCB) protects main incomers and large feeders against overload and short circuit, at ratings above the MCB range. We stock genuine Schneider MCCBs with a GST invoice. Prices checked 6 October 2026. Reviewed by Amit, Voltkart.

Schneider MCCB price list (incl. GST)

Rated current	3 pole	4 pole
25 kA breaking capacity
100 A	LV510307 · ₹6,748	LV510317 · ₹9,337
125 A	LV516302 · ₹9,872	LV516312 · ₹12,081

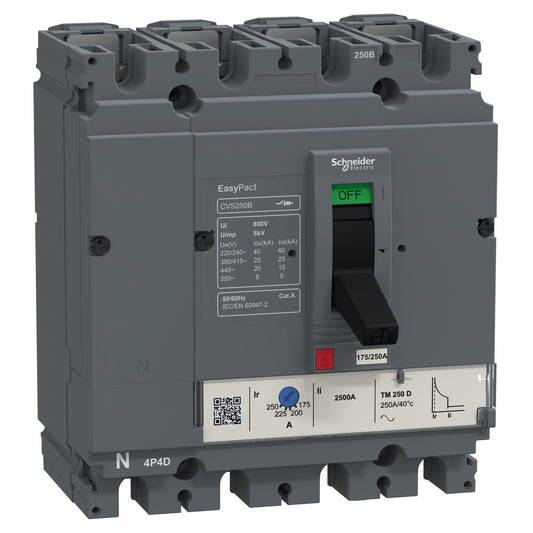

160 A	LV516303 · ₹12,886	LV516313 · ₹15,440
200 A	LV525302 · ₹17,055	LV525312 · ₹21,319
250 A	LV525303 · ₹19,959	LV525313 · ₹24,418
36 kA breaking capacity
100 A	LV510337 · ₹9,177	—
125 A	LV516332 · ₹10,187	LV516342 · ₹12,651
160 A	LV516333 · ₹13,496	LV516343 · ₹16,080

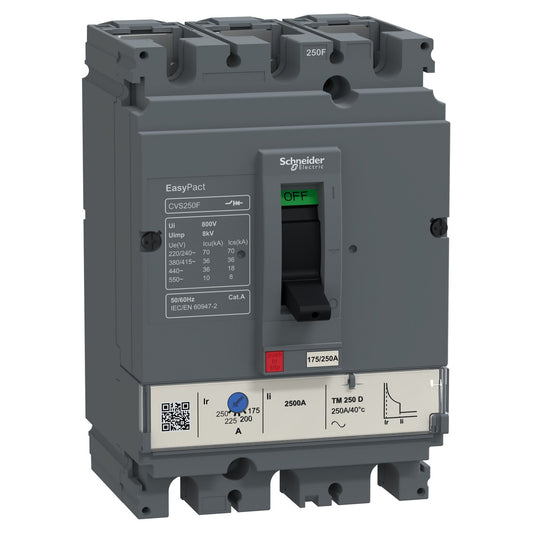

200 A	LV525332 · ₹19,439	LV525342 · ₹24,088
250 A	LV525333 · ₹21,563	LV525343 · ₹26,682
320 A	LV540305 · ₹29,476	LV540308 · ₹36,574

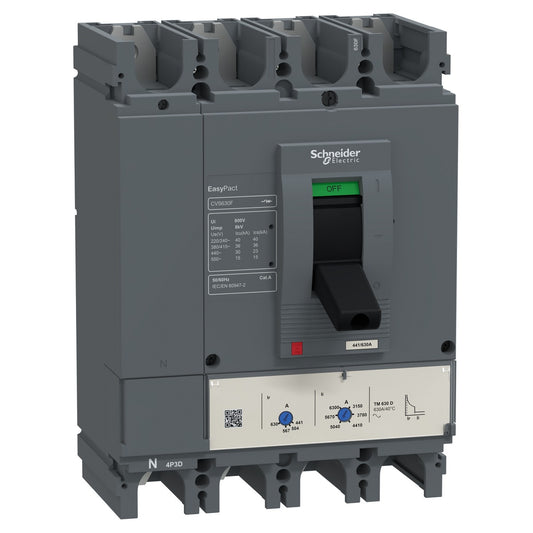

400 A	LV540306 · ₹29,651	LV540309 · ₹36,899
500 A	LV563305 · ₹33,615	LV563308 · ₹42,572

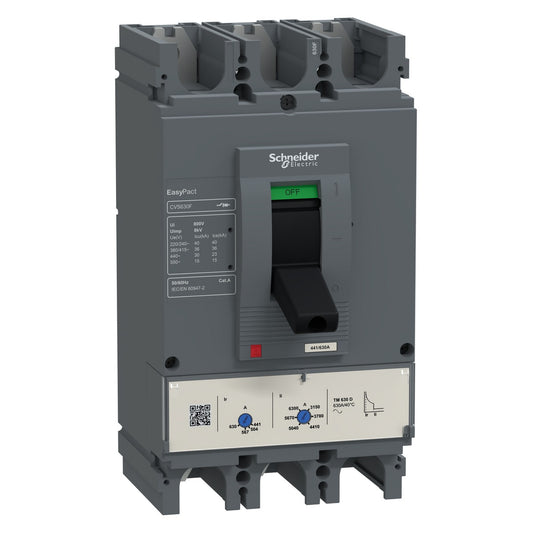

630 A	LV563307 · ₹38,488	LV563310 · ₹48,575
50 kA breaking capacity
400 A	LV540316 · ₹32,170	LV540319 · ₹40,203
500 A	LV563315 · ₹37,299	LV563318 · ₹47,071
630 A	LV563317 · ₹40,633	LV563320 · ₹53,194

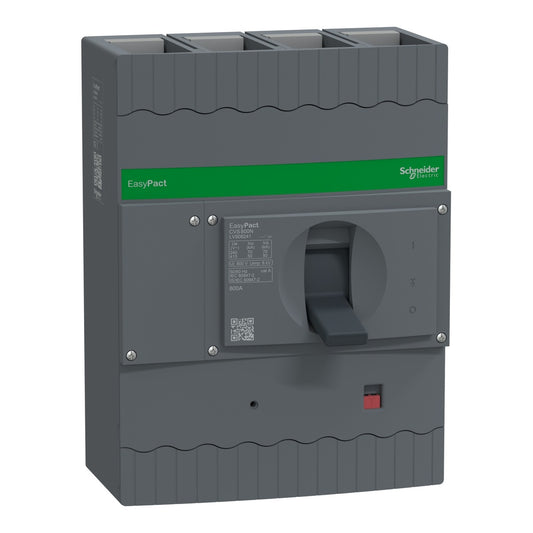

800 A	LV508231 · ₹66,580	LV508241 · ₹83,130

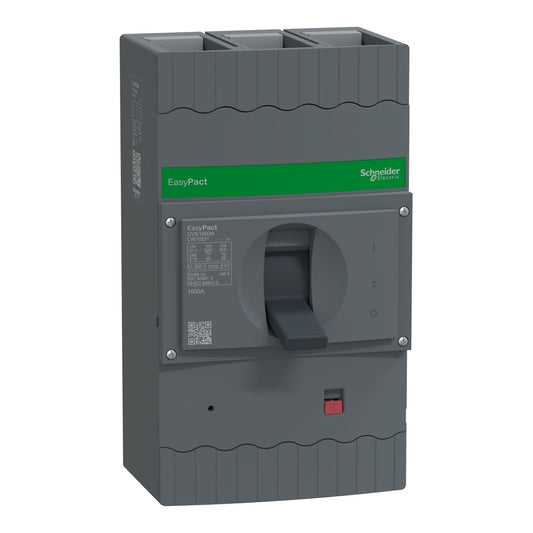

1000 A	LV510231 · ₹86,849	LV510241 · ₹120,298

Click a model to open the product. The product page always shows the live price and stock.

How to choose an MCCB

Rated current: at or above the feeder load current, and within the cable's capacity.
Breaking capacity: at least the prospective fault current at the panel (25, 36, 50 kA here).
Poles: 3-pole for 3-phase feeders; 4-pole where the neutral must be switched too.

Related: Schneider MCB price list · MPCBs.

Frequently asked questions

What is the price of a Schneider MCCB?

On Voltkart a 3-pole 25 kA Schneider MCCB costs ₹6,748 for 100 A, ₹12,886 for 160 A, ₹19,959 for 250 A. Ratings run from 100 A to 1000 A in 3 and 4 pole, 25, 36, 50 kA. All prices include GST.

MCB or MCCB: which do I need?

MCBs cover up to about 63 A with a fixed rating. Above that, or where a higher breaking capacity is needed at the main incomer, use an MCCB. More in MCB vs MCCB.

What do 25 kA, 36 kA and 50 kA mean?

That is the breaking capacity: the largest fault current the breaker can safely interrupt. Choose a breaking capacity at least equal to the prospective short-circuit current at the point of installation, which your electrical designer or supply authority can confirm.

3 pole or 4 pole MCCB?

A 3-pole MCCB switches and protects the three phases. A 4-pole MCCB also switches the neutral, which is used where the neutral must be isolated, for example on some incomers or changeover arrangements, or where local practice requires it.

How do I size an MCCB?

Choose a rated current at or above the load current of the feeder and within the current-carrying capacity of the cable. Then confirm the breaking capacity. If you are unsure, send us the load and cable details on WhatsApp.

Not sure which model you need? Send the part number or your application on WhatsApp at 8800754881 (Mon–Sat, 12:30–7 pm) and we will help you choose. For bulk or OEM quantities, ask for a quote on the same number.
