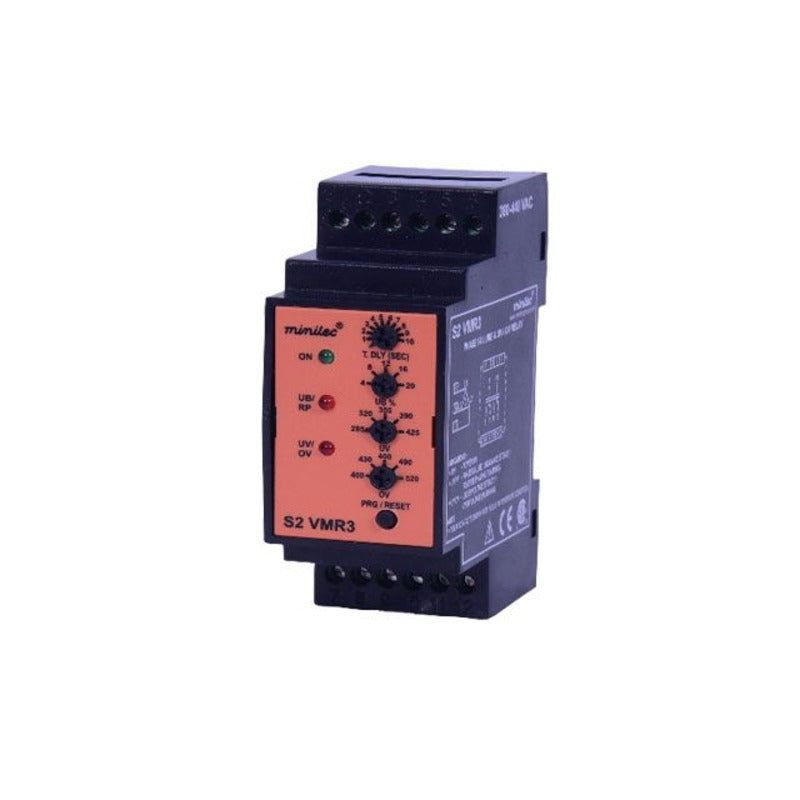

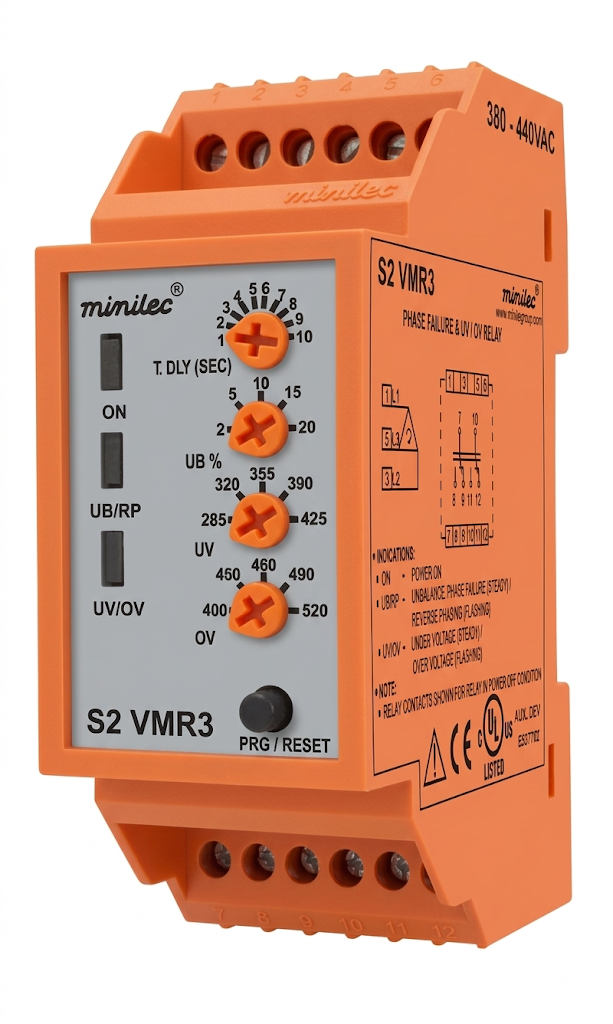

Minilec S2 VMR 3 Voltage Monitoring Relay (VMR): Phase Sequence, Unbalance, Under/Over Voltage, 415V AC
Incl. all taxes • Shipping calculated at checkout.
Free delivery on orders above ₹3,000 · Delivery charges
1-year manufacturer warranty · Burnt or wiring damage not covered · Warranty terms
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Works well with
Schneider LC1D09, 9 Amp Contactor
₹1,421
Schneider LC1E0910, 9 Amp Contactor, coil voltage 220V AC
₹1,056
Schneider LC1D12, 12 Amp Contactor
₹1,600
Schneider LC1E1210, 12 Amp Contactor, coil voltage 220V AC
₹1,210
Schneider LC1D18, 18 Amp Contactor
₹1,857
Schneider LC1E1810, 18 Amp Contactor, coil voltage 220V AC
₹1,400
Description
S2 VMR 3 is a 3-phase voltage protection relay covering phase sequence, adjustable unbalance and adjustable under/over voltage, verified against Minilec’s own official product page.
Minilec model S2 VMR 3 is also written as S2VMR3, S2 VMR3.
Technical specifications
| Make | Minilec |
| Model | S2 VMR 3 |
| System supply | 380-440V AC -25%+20%, 48-63Hz (built-in auxiliary) |
| Phase unbalance trip | 4% to 20% (variable) |
| Under-voltage (Ph-Ph) | 285-425V AC |
| Over-voltage (Ph-Ph) | 400-520V AC |
| Output contacts | 2 CO |
| Trip time delay | Phase failure instant; UV/OV 1-10 seconds (variable) |
| Reset | Auto or Manual (selectable) |
| Contact rating | 5A @ 230V AC (resistive) |
| Dimensions (L x W x D) | 90 x 35 x 60mm |
| Mounting | 35mm DIN rail |
| Weight | 110g (approx.) |
Frequently asked questions about the Minilec S2 VMR 3
What is the phase unbalance trip of the S2 VMR 3?
What are the output contacts of the S2 VMR 3?
What is the trip time delay of the S2 VMR 3?
What is the reset of the S2 VMR 3?
Where can I download the S2 VMR 3 datasheet?
Is the S2 VMR 3 genuine, and do you provide a GST invoice?
Can I order the S2 VMR 3 in bulk for OEM or wholesale use?
Explore more Minilec products
Compare all phase, voltage and pump protection relays with live prices →
New to voltage monitoring relays? Read our VMR relay guide: what each fault means, how to wire the relay in a DOL starter, and how to compare models.
Choose a single phasing preventer
A single phasing preventer (phase failure relay) switches off the motor starter when a phase is lost or the three voltages become unbalanced, before the motor overheats. Choose by supply voltage, whether you also want under/over-voltage protection, the number of output contacts and the mounting.
- Minilec VSP 2: for 3-phase pump motors; 415 V; fixed unbalance trip (40 V); 1 NO; auto reset
- Minilec VSP D1: 240 V or 415 V; fixed unbalance trip (40 V); 1 CO; auto reset
- Minilec VSP D2: 240 V or 415 V; adjustable unbalance trip (30–70 V); 2 CO; auto, manual or remote reset
- Minilec ALV D2: 415 V; fixed unbalance trip plus adjustable under/over-voltage; 2 CO
- Minilec S2 VMR 3 (this relay): 415 V; adjustable unbalance (4–20%) plus adjustable under/over-voltage; 2 CO; 35 mm DIN rail
- Selec 800PSR: phase sequence, phase failure and asymmetry; 154–500 V; 1 C/O; 22.5 mm DIN rail
Prices for all of them: protection relay price list. How to set and wire one: voltage monitoring relay guide.
