Minilec
-

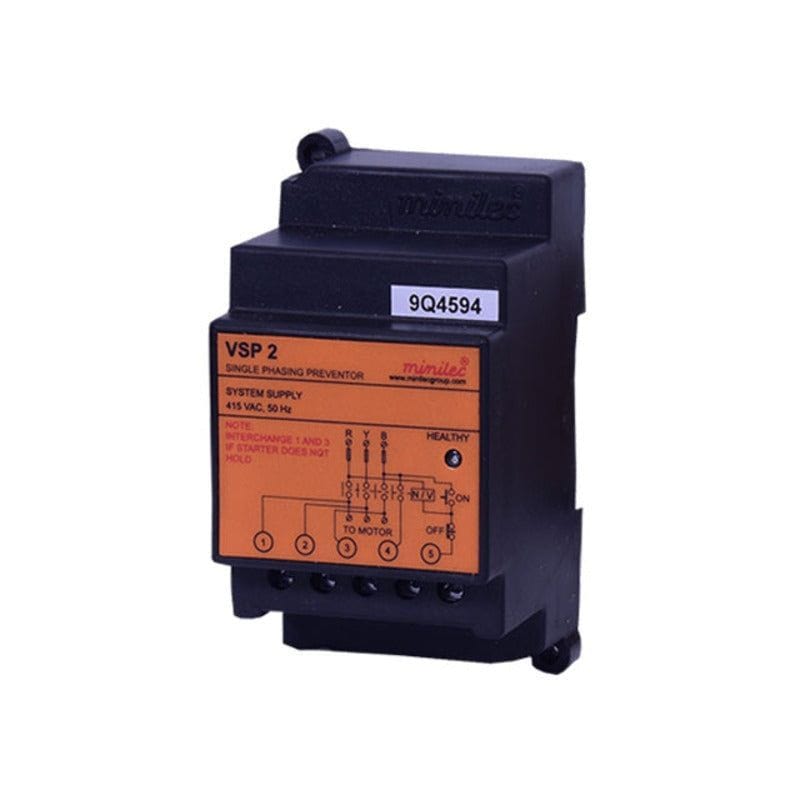

Minilec VSP 2 Phase Failure Relay for Pump Motors, Single Phase Preventor (415V AC)
Incl. GST
Delivery ₹259 under ₹1,000, ₹160 from ₹1,000 · free on orders of ₹3,001+ · Details
Couldn't load pickup availability
1-year manufacturer warranty · Burnt or wiring damage not covered · Warranty terms
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Works well with
Schneider LC1D09, 9 Amp Contactor
₹1,421
Schneider LC1E0910, 9 Amp Contactor, coil voltage 220V AC
₹1,056
Schneider LC1D12, 12 Amp Contactor
₹1,600
Schneider LC1E1210, 12 Amp Contactor, coil voltage 220V AC
₹1,210
Schneider LC1D18, 18 Amp Contactor
₹1,857
Schneider LC1E1810, 18 Amp Contactor, coil voltage 220V AC
₹1,400
Description
VSP 2 is a single-phase preventor for 3-phase agricultural/monoblock pump motors of any HP, tripping on reverse phasing or voltage unbalance, verified against Minilec’s own official product page. It is also called a phase failure relay or single phasing preventer: it trips the pump starter on a lost phase, voltage unbalance or reverse phasing, protecting the motor from overheating.
Minilec model VSP 2 is also written as VSP2.
Technical specifications
| Make | Minilec |
| Model | VSP 2 |
| Supply voltage | 415V AC ±20%, 50Hz ±3% |
| Unbalance trip setting | 40V ±6V (fixed) |
| Trip time delay | 3.5 ± 1.5 seconds |
| Output contacts | 1 NO |
| Contact rating | 5A @ 240V AC (resistive) |
| Reset | Auto |
| Dimensions (L x W x D) | 103 x 66 x 43mm |
| Mounting | 91 x 48mm, panel mounting |
| Enclosure | HIP moulded, with nylon connector strip |
| Weight | 260g |
| Operating conditions | -5°C to +60°C, up to 95% RH |
Frequently asked questions about the Minilec VSP 2
What is the supply voltage of the VSP 2?
What is the unbalance trip setting of the VSP 2?
What are the output contacts of the VSP 2?
What is the reset of the VSP 2?
Is the VSP 2 genuine, and do you provide a GST invoice?
Can I order the VSP 2 in bulk for OEM or wholesale use?
Explore more Minilec products
Compare all phase, voltage and pump protection relays with live prices →
Choose a single phasing preventer
A single phasing preventer (phase failure relay) switches off the motor starter when a phase is lost or the three voltages become unbalanced, before the motor overheats. Choose by supply voltage, whether you also want under/over-voltage protection, the number of output contacts and the mounting.
- Minilec VSP 2 (this relay): for 3-phase pump motors; 415 V; fixed unbalance trip (40 V); 1 NO; auto reset
- Minilec VSP D1: 240 V or 415 V; fixed unbalance trip (40 V); 1 CO; auto reset
- Minilec VSP D2: 240 V or 415 V; adjustable unbalance trip (30–70 V); 2 CO; auto, manual or remote reset
- Minilec ALV D2: 415 V; fixed unbalance trip plus adjustable under/over-voltage; 2 CO
- Minilec S2 VMR 3: 415 V; adjustable unbalance (4–20%) plus adjustable under/over-voltage; 2 CO; 35 mm DIN rail
- Selec 800PSR: phase sequence, phase failure and asymmetry; 154–500 V; 1 C/O; 22.5 mm DIN rail
Prices for all of them: protection relay price list. How to set and wire one: voltage monitoring relay guide.
