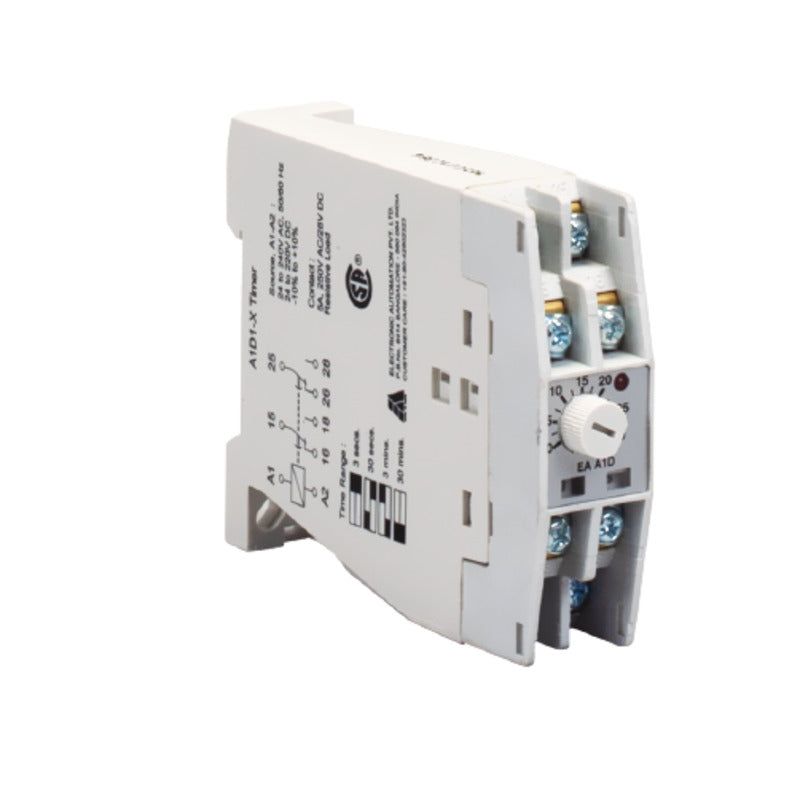

EAPL A1D1 On-Delay timer 230V AC, Multi-timing
Regular price
₹990
Regular price
₹1,170
Sale price
₹990
Incl. all taxes • Shipping calculated at checkout.
Free delivery on orders above ₹3,000 · Delivery charges
Price excl. GST
₹838.98
GST @ 18% included in above product price
1-year manufacturer warranty · Burnt or wiring damage not covered · Warranty terms
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Works well with
Schneider LC1D09, 9 Amp Contactor
₹1,421
Schneider LC1E0910, 9 Amp Contactor, coil voltage 220V AC
₹1,056
Schneider LC1D12, 12 Amp Contactor
₹1,600
Schneider LC1E1210, 12 Amp Contactor, coil voltage 220V AC
₹1,210
Schneider LC1D18, 18 Amp Contactor
₹1,857
Schneider LC1E1810, 18 Amp Contactor, coil voltage 220V AC
₹1,400
Description
A1D1 is an EAPL timer -- on-delay -- verified against EAPL’s own official product catalogue.
Supply voltage
240V AC
Time range
0.3 seconds to 30 minutes
Output
2 C/O relay

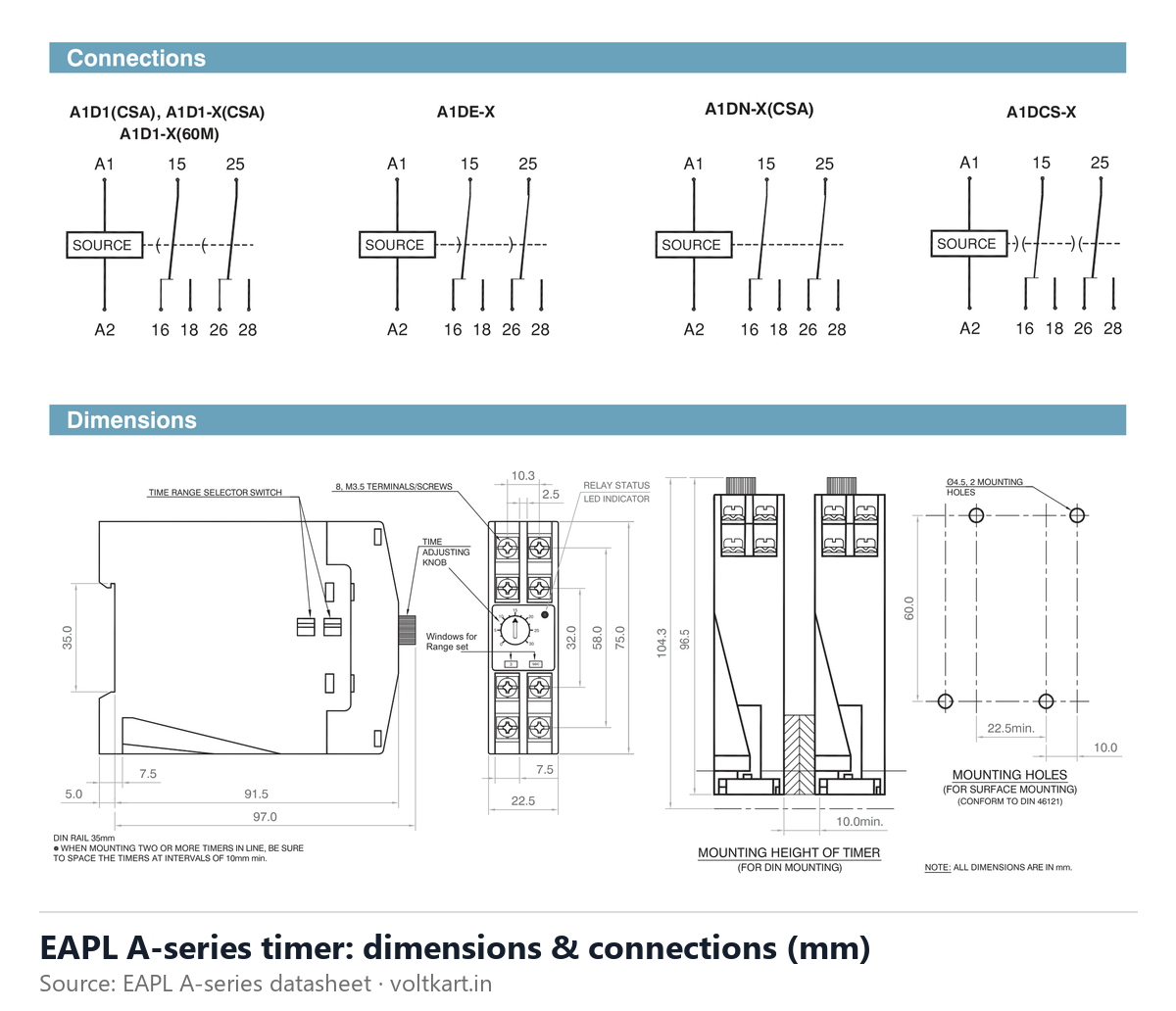

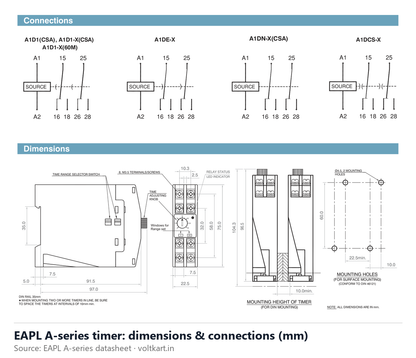

Dimensions (W x H x D)
22.5 x 75 x 102mm (W x H x D)
Technical specifications
| Make | EAPL |
| Model | A1D1 |
| Function | On-delay |
| Supply voltage | 240V AC |
| Time range | 0.3 seconds to 30 minutes |
| Output | 2 C/O relay |
| Dimensions (W x H x D) | 22.5 x 75 x 102mm (W x H x D) |
| Mounting | DIN rail or screw mounting |
Frequently asked questions about the EAPL A1D1
What is the supply voltage of the A1D1?
240V AC, per EAPL’s official catalogue.
What is the time range of the A1D1?
0.3 seconds to 30 minutes, per EAPL’s official catalogue.
What is the output of the A1D1?
2 C/O relay, per EAPL’s official catalogue.
What are the dimensions (w x h x d) of the A1D1?
22.5 x 75 x 102mm (W x H x D), per EAPL’s official catalogue.
Where can I download the A1D1 specifications?
You can download EAPL’s official product catalogue from the link on this page: A1D1 catalogue.
Is the A1D1 genuine, and do you provide a GST invoice?
Yes. Voltkart stocks genuine EAPL products, and every order comes with a GST invoice.
Can I order the A1D1 in bulk for OEM or wholesale use?
Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.
