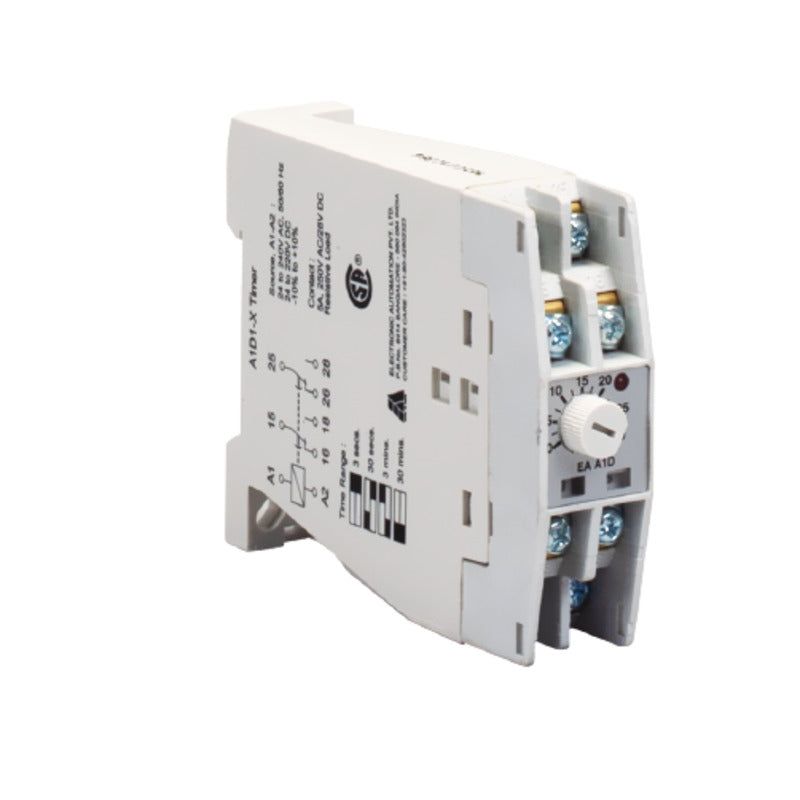

EAPL A1D1-X 24-240VAC/DC On-Delay Timer, Multi-Timing

The EAPL A1D1-X is a versatile multi-range ON-delay timer designed for industrial automation, machine control, and process timing applications. Supporting a wide operating voltage range of 24-240VAC/DC, this timer offers excellent flexibility and can be installed in a variety of control panels without the need for separate voltage variants. The timer starts counting as soon as the supply voltage is applied and energizes the output relay after the preset delay period has elapsed.

With multiple selectable timing ranges, the A1D1-X allows users to configure the required delay according to the application, making it suitable for both short-duration and long-duration timing operations. Its compact design, reliable relay output, and easy-to-set timing functions make it a preferred choice for OEMs, panel builders, and maintenance engineers. Built for continuous industrial operation, the timer provides stable performance and high accuracy, ensuring smooth machine sequencing and equipment protection.

Whether used for delayed motor starting, conveyor control, lighting automation, or industrial process control, the EAPL A1D1-X delivers dependable timing performance while reducing complexity in automation systems.

Key Features

• ON-Delay timer function

• Wide operating voltage: 24-240VAC/DC

• Multi-range timing selection

• Compact industrial design

• High timing accuracy and repeatability

• Reliable relay output

• Easy front-panel setting

• Suitable for control panel mounting

• Long electrical and mechanical life

• Maintenance-free operation

Applications

• Industrial automation panels

• Motor start delay circuits

• Pump control systems

• Conveyor automation systems

• Packaging and sealing machines

• Lighting control applications

• HVAC control panels

• Process control and machine sequencing

• Electrical control panels

• Water treatment plants

Why Buy From Voltkart?

• Authorised Mean Well distributor in India

• GST invoice provided

• Pan India delivery in 5-7 days

• Bulk pricing available on WhatsApp

FAQs

Q1. What is an ON-delay timer?
An ON-delay timer activates its output relay after a preset delay once the supply voltage is applied. It is commonly used for delayed machine startup and sequential control operations.

Q2. What supply voltage does the EAPL A1D1-X support?
The timer operates on a wide supply voltage range of 24-240VAC/DC, making it suitable for various industrial control systems.

Q3. What is the benefit of a multi-range timer?
A multi-range timer allows users to select different timing ranges from a single device, reducing inventory requirements and increasing application flexibility.

Q4. Where is the EAPL A1D1-X commonly used?
It is widely used in motor control panels, automation systems, conveyor controls, pump starters, packaging machines, and industrial process equipment.

Q5. Is this timer suitable for continuous industrial operation?
Yes. The EAPL A1D1-X is designed for industrial environments and offers reliable, long-term performance in demanding applications.
