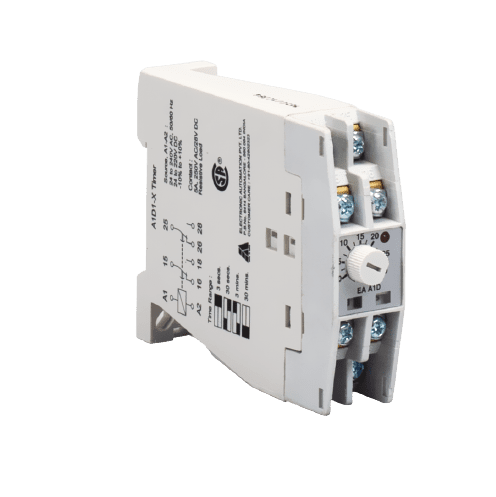

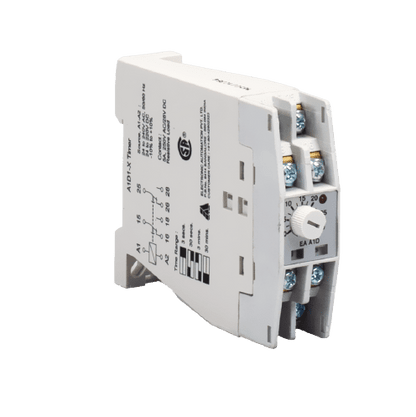

EAPL A1D1 (8V-30VDC) On-Delay Dc Timer, Multi-timing
Regular price
₹990
Regular price
₹1,130
Sale price
₹990
Incl. all taxes • Shipping calculated at checkout.
Free delivery on orders of ₹3,001+. Below that, delivery is ₹160 (₹99 to Delhi, UP, Haryana and HP on orders of ₹1,000+), plus a ₹99 small-order fee under ₹1,000.
Price excl. GST
₹838.98
GST @ 18% included in above product price
Authorized Dealer
GST Invoice
PAN India Delivery
Fast Dispatch
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Works well with
Schneider LC1D09, 9Amp Contactor
₹1,421
Schneider LC1E0910, 9Amp Contactor, coil voltage 220vac
₹1,056
Schneider LC1D12, 12Amp Contactor
₹1,600
Schneider LC1E1210, 12Amp Contactor, coil voltage 220vac
₹1,210
Schneider LC1D18, 18Amp Contactor
₹1,857
Schneider LC1E1810, 18Amp Contactor, coil voltage 220vac
₹1,400
Description
A1D1 (8V-30VDC) is an EAPL timer -- on-delay, DC supply, multi-timing -- verified against EAPL’s own official product catalogue.
Supply voltage
8V DC to 30V DC
Time range
0.3 seconds to 30 minutes
Output
2 C/O relay

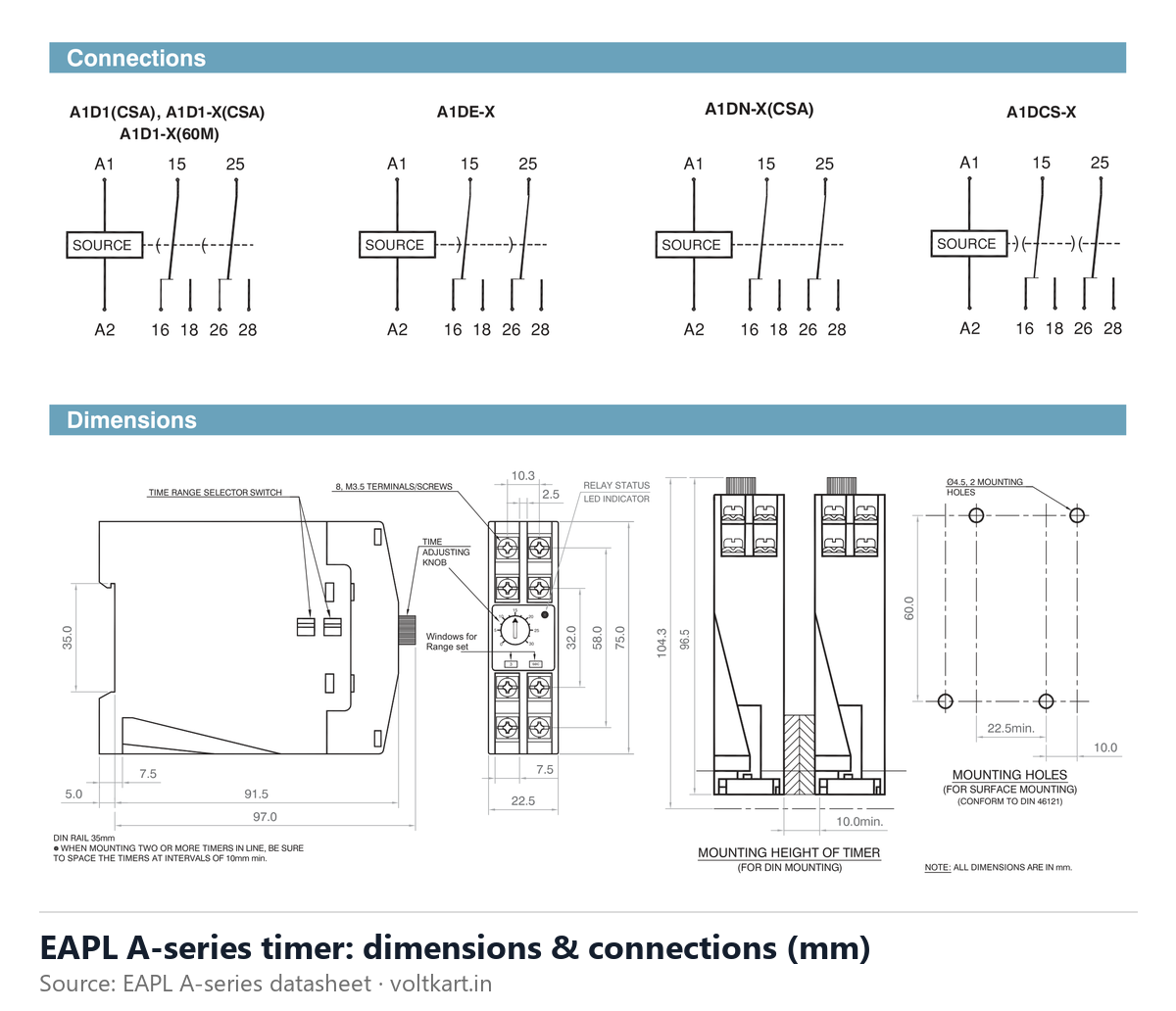

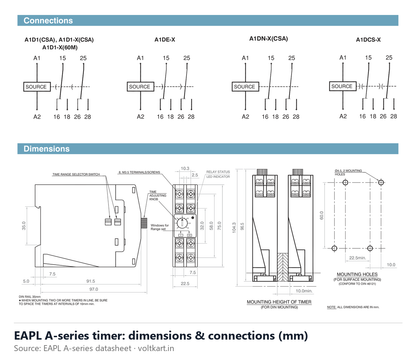

Dimensions (W x H x D)
22.5 x 75 x 102mm (W x H x D)
Technical specifications
| Make | EAPL |
| Model | A1D1 (8V-30VDC) |
| Function | On-delay, DC supply, multi-timing |
| Supply voltage | 8V DC to 30V DC |
| Time range | 0.3 seconds to 30 minutes |
| Output | 2 C/O relay |
| Dimensions (W x H x D) | 22.5 x 75 x 102mm (W x H x D) |
| Mounting | DIN rail or screw mounting |
Frequently asked questions about the EAPL A1D1 (8V-30VDC)
What is the supply voltage of the A1D1 (8V-30VDC)?
8V DC to 30V DC, per EAPL’s official catalogue.
What is the time range of the A1D1 (8V-30VDC)?
0.3 seconds to 30 minutes, per EAPL’s official catalogue.
What is the output of the A1D1 (8V-30VDC)?
2 C/O relay, per EAPL’s official catalogue.
What are the dimensions (w x h x d) of the A1D1 (8V-30VDC)?
22.5 x 75 x 102mm (W x H x D), per EAPL’s official catalogue.
Where can I download the A1D1 (8V-30VDC) specifications?
You can download EAPL’s official product catalogue from the link on this page: A1D1 (8V-30VDC) catalogue.
Is the A1D1 (8V-30VDC) genuine, and do you provide a GST invoice?
Yes. Voltkart stocks genuine EAPL products, and every order comes with a GST invoice.
Can I order the A1D1 (8V-30VDC) in bulk for OEM or wholesale use?
Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.
