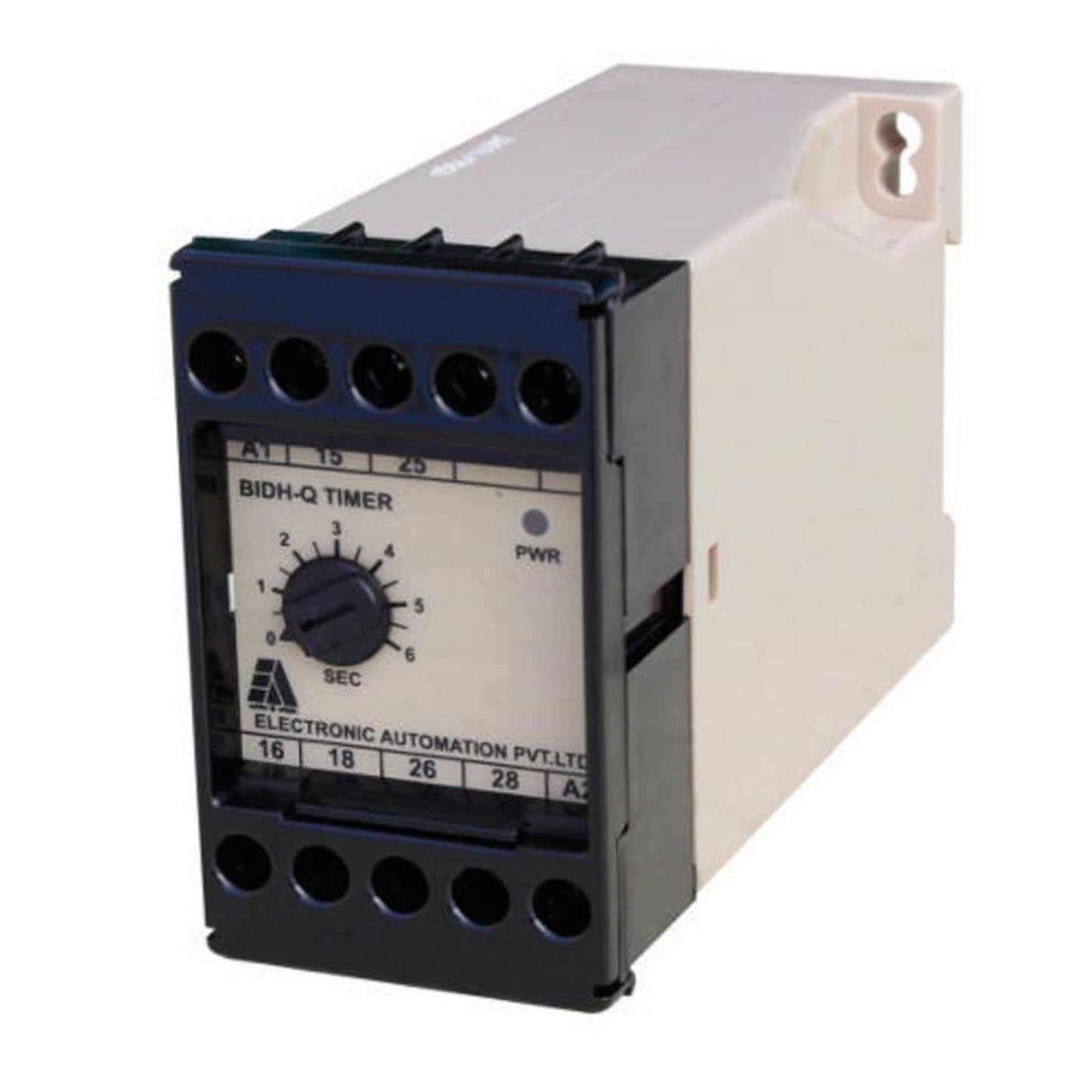

EAPL B1DH-Q Off delay Timer
Regular price
₹1,800
Regular price
₹2,390
Sale price
₹1,800
Incl. all taxes • Shipping calculated at checkout.
Price excl. GST
₹1,525.42
GST @ 18% included in above product price
Authorized Dealer
GST Invoice
PAN India Delivery
Fast Dispatch
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Works well with
Selec PID500-T-2-0-00, 48*48 PID, Current(4-20ma) output
₹2,630
Selec Dtc503-TC input j or k type, Digital Temperature Controller, 48x48
₹1,030
Selec DTC231-TC input j or k type, 72*72 Temperature Controller
₹1,060
Schneider LC1D09, 9Amp Contactor
₹1,421
Schneider LC1E1810, 18Amp Contactor, coil voltage 220vac
₹1,400
Schneider LC1D40, 40Amp Contactor
₹6,830
Description
B1DH-Q is an EAPL timer -- power-off delay -- verified against EAPL’s own official product catalogue.
Supply voltage
110V AC to 240V AC, or 110V DC to 220V DC
Time range
6 to 60 seconds
Output
2 C/O relay

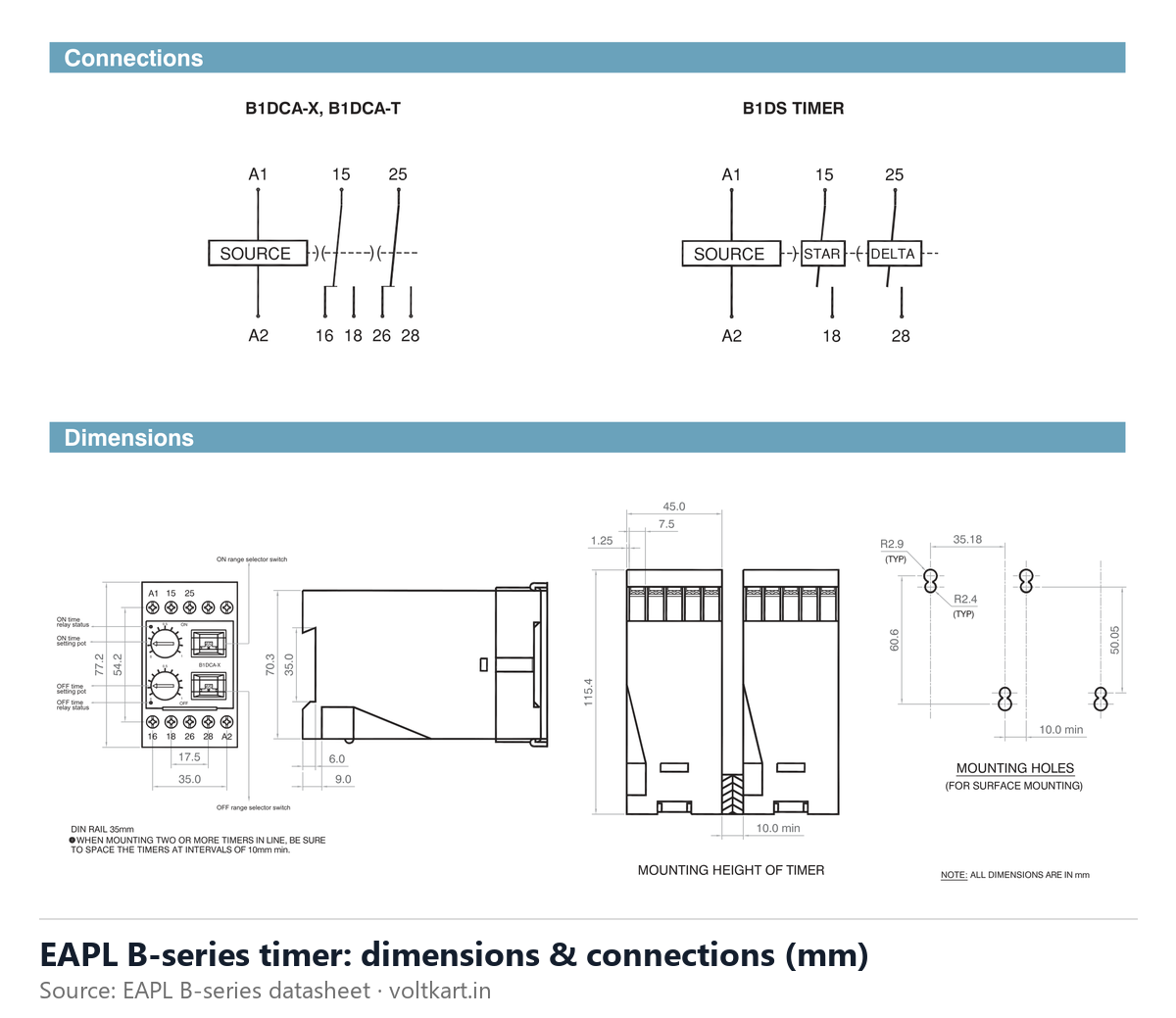

Dimensions (W x H x D)
45 x 75 x 116mm (W x H x D)
Technical specifications
| Make | EAPL |
| Model | B1DH-Q |
| Function | Power-off delay |
| Supply voltage | 110V AC to 240V AC, or 110V DC to 220V DC |
| Time range | 6 to 60 seconds |
| Output | 2 C/O relay |
| Dimensions (W x H x D) | 45 x 75 x 116mm (W x H x D) |
| Mounting | DIN rail or screw mounting |
| Note | Minimum 1 second of auxiliary supply must be applied each cycle, or the timer may malfunction |
Frequently asked questions about the EAPL B1DH-Q
What is the supply voltage of the B1DH-Q?
110V AC to 240V AC, or 110V DC to 220V DC, per EAPL’s official catalogue.
What is the time range of the B1DH-Q?
6 to 60 seconds, per EAPL’s official catalogue.
What is the output of the B1DH-Q?
2 C/O relay, per EAPL’s official catalogue.
What are the dimensions (w x h x d) of the B1DH-Q?
45 x 75 x 116mm (W x H x D), per EAPL’s official catalogue.
Where can I download the B1DH-Q specifications?
You can download EAPL’s official product catalogue from the link on this page: B1DH-Q catalogue.
Is the B1DH-Q genuine, and do you provide a GST invoice?
Yes. Voltkart stocks genuine EAPL products, and every order comes with a GST invoice.
Can I order the B1DH-Q in bulk for OEM or wholesale use?
Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.
