EAPL
-

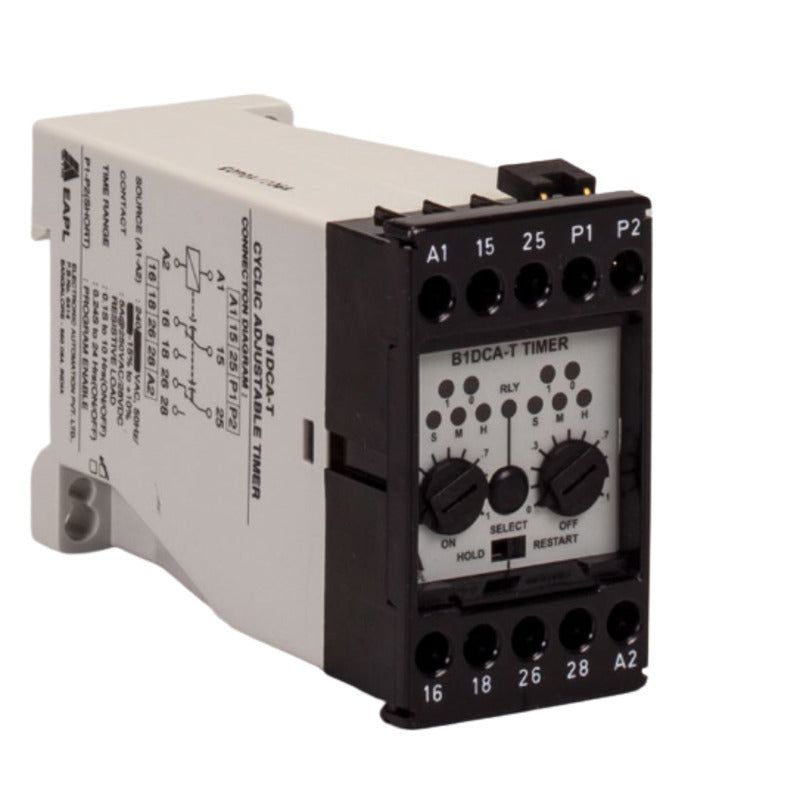

EAPL B1DCA-T Cyclic Timer, Adjustable ON/OFF, 0.1s–10h, 110/240V AC
Incl. GST
Delivery ₹160 (₹99 in DL, UP, HR, HP) · free on orders of ₹3,001+ · Details
Couldn't load pickup availability
1-year manufacturer warranty · Burnt or wiring damage not covered · Warranty terms
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Works well with
Schneider LC1D09, 9 Amp Contactor
₹1,421
Schneider LC1E0910, 9 Amp Contactor, coil voltage 220V AC
₹1,056
Schneider LC1D12, 12 Amp Contactor
₹1,600
Schneider LC1E1210, 12 Amp Contactor, coil voltage 220V AC
₹1,210
Schneider LC1D18, 18 Amp Contactor
₹1,857
Schneider LC1E1810, 18 Amp Contactor, coil voltage 220V AC
₹1,400
Description
B1DCA-T is an EAPL timer -- cyclic, adjustable on/off -- verified against EAPL’s own official product catalogue.
Technical specifications
| Make | EAPL |
| Model | B1DCA-T |
| Function | Cyclic, adjustable on/off |
| Supply voltage | 110V AC / 240V AC |
| Time range | 0.1 seconds to 10 hours |
| Output | 2 C/O relay |

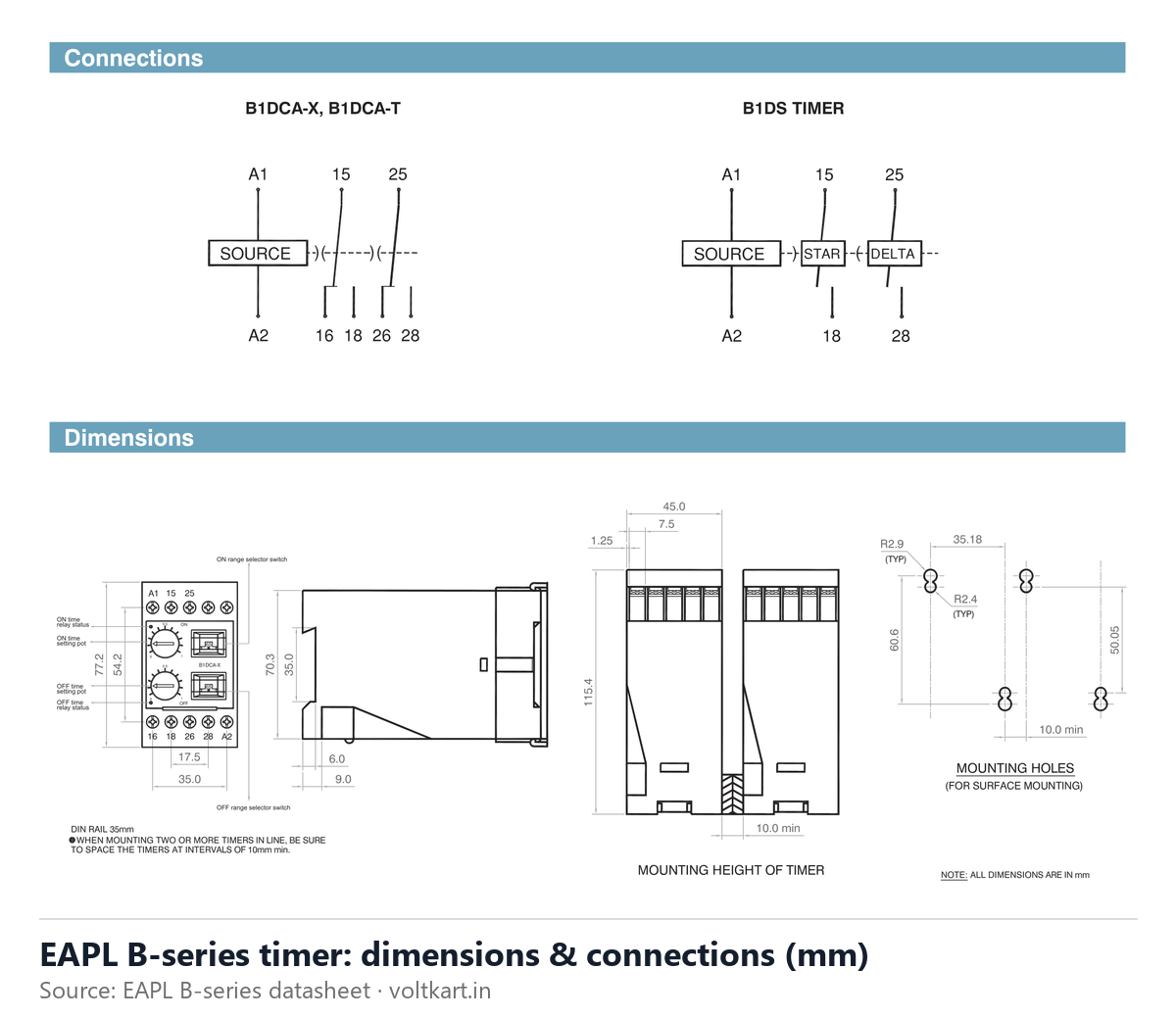

| Dimensions (W x H x D) | 45 x 75 x 116mm (W x H x D) |
| Mounting | DIN rail or screw mounting |
Frequently asked questions about the EAPL B1DCA-T
What is the supply voltage of the B1DCA-T?
What is the time range of the B1DCA-T?
What is the output of the B1DCA-T?
What are the dimensions (w x h x d) of the B1DCA-T?
Where can I download the B1DCA-T specifications?
Is the B1DCA-T genuine, and do you provide a GST invoice?
Can I order the B1DCA-T in bulk for OEM or wholesale use?
Explore more EAPL products
Compare cyclic timers
A cyclic timer switches its output ON and OFF repeatedly, for example for lubrication pumps, aerators, flashers and sampling valves. Choose adjustable ON/OFF if the two times differ, equal ON/OFF if they are the same.
- EAPL B1DCA-X: separately adjustable ON and OFF times, 0.6 s to 60 min, 24–240 V AC/DC, 2 C/O
- EAPL B1DCA-T (this timer): separately adjustable ON and OFF times, 0.1 s to 10 h, 110/240 V AC, 2 C/O
- EAPL A1DCS-X: equal ON and OFF times, 0.6 s to 60 min, 22.5 mm DIN rail, 24–240 V AC/DC, 2 C/O
- Selec 800XC: unequal ON and OFF times, 22.5 mm DIN rail, universal supply
- Selec 55XC-P8: unequal ON and OFF times, plug-in 8-pin 48×48 mm, 20–240 V AC / 12–240 V DC
All timer types: electronic timers.
