Single function, 60sec, 1 C/O, 230V AC

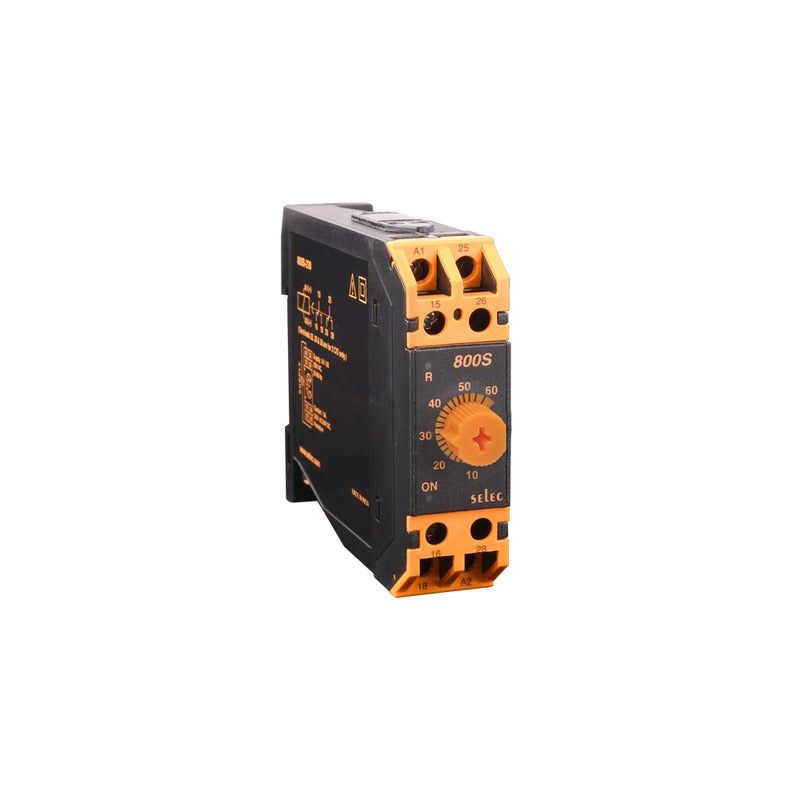

Selec 800S-1-ON-60S-230 DIN Rail On-Delay Timer Relay

The Selec 800S-1-ON-60S-230 is a compact DIN rail mounted ON-delay timer designed for industrial automation and control panel applications. This timer provides a fixed 60-second delay before energizing its output relay, making it ideal for sequential machine startup, motor protection circuits, and process automation systems. Its slim 22.5mm housing saves valuable panel space while ensuring reliable operation in demanding industrial environments. The timer operates on a 230VAC supply and features a SPDT relay output rated at 5A, suitable for controlling contactors, relays, alarms, and other control devices. LED indicators for Power ON and Relay ON status make troubleshooting and monitoring easy. With finger-safe terminals and a robust industrial design, the Selec 800 Series timer offers dependable performance and long service life. It is an economical solution for applications requiring a simple and accurate ON-delay function without the complexity of programmable timers.

Key Features

• ON-delay timer function

• Fixed 60-second timing range

• 230VAC supply voltage

• 1 C/O (SPDT) relay output

• 5A contact rating at 250VAC / 24VDC

• Compact 22.5mm DIN rail mounting design

• LED indication for Power ON and Relay ON

• Finger-safe terminals for enhanced safety

• High repeatability and reliable timing performance

• Low-cost industrial timing solution

Applications

• Motor start delay circuits

• Industrial automation panels

• Conveyor control systems

• Pump control panels

• Machine startup sequencing

• Process control systems

• HVAC control panels

• Electrical distribution and control panels

Why Buy From Voltkart?

• Authorised Mean Well distributor in India

• GST invoice provided

• Pan India delivery in 5-7 days

• Bulk pricing available on WhatsApp

FAQs

Q1. What does the ON-delay function do?
When power is applied, the timer begins counting. After the preset 60-second delay, the output relay energizes and changes state.

Q2. Can the Selec 800S-1-ON-60S-230 be mounted on a DIN rail?
Yes. It is specifically designed for standard DIN rail mounting and occupies only 22.5mm panel width.

Q3. What is the relay output rating?
The timer provides one SPDT relay output rated at 5A at 250VAC or 24VDC, suitable for switching control circuits and contactors.

Q4. Where is this timer commonly used?
It is widely used in motor control panels, machine automation systems, pump control applications, conveyor systems, and industrial process control equipment.

Q5. Does the timer have any status indication?
Yes. Separate LEDs indicate Power ON and Relay ON status, allowing quick visual confirmation of operation.
