SELEC
Selec Din Rail Timer -800SD-2-230 - 22.5 mm
Regular price
₹680
Regular price
₹1,146
Sale price
₹680
Incl. all taxes • Shipping calculated at checkout.
Minimum order is ₹1,001. Buy 2 of this item, or add other items to reach it.
Price excl. GST
₹576.27
GST @ 18% included in above product price
Authorized Dealer
GST Invoice
PAN India Delivery
Fast Dispatch
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Works well with
Schneider LC1D09, 9Amp Contactor
₹1,421
Schneider LC1E0910, 9Amp Contactor, coil voltage 220vac
₹1,056
Schneider LC1D12, 12Amp Contactor
₹1,600
Schneider LC1E1210, 12Amp Contactor, coil voltage 220vac
₹1,210
Schneider LC1D18, 18Amp Contactor
₹1,857
Schneider LC1E1810, 18Amp Contactor, coil voltage 220vac
₹1,400
Description

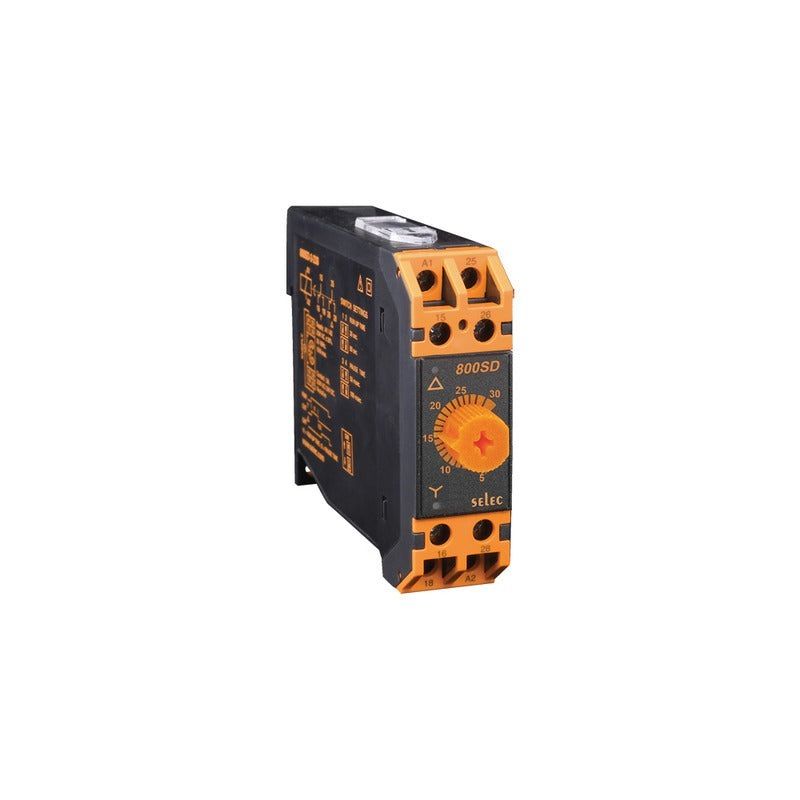

800SD-2-230, an analog timer from Selec. Star Delta timer, Run time: 30 / 60sec, Change over: 50 / 100ms, 2 C/O, 230V AC.
Supply Voltage
230V AC (also available: 110V AC / 230 to 450V AC, -15% to +10%)
Run Up Time range
0-30 sec, 0-60 sec
Brand Name
SELEC
Warranty Duration
12 months as per Selec
Technical specifications
| Make | Selec |
| Model | 800SD-2-230 |
| Warranty Duration | 12 months as per Selec |
| Reset Time | <100 msec |
| Power Consumption | 10 VA max |
| Run Up Time range | 0-30 sec, 0-60 sec |
| Type of Product | Timer |
| Supply Voltage | 230V AC (also available: 110V AC / 230 to 450V AC, -15% to +10%) |
More about the 800SD-2-230
Star Delta timer, Run time: 30 / 60sec, Change over: 50 / 100ms, 2 C/O, 230V AC
Frequently asked questions about the Selec 800SD-2-230
What is the 800SD-2-230?
Star Delta timer, Run time: 30 / 60sec, Change over: 50 / 100ms, 2 C/O, 230V AC. It is an analog timer made by Selec.
What is the supply voltage of the 800SD-2-230?
The 800SD-2-230 is listed with supply voltage of 230V AC (also available: 110V AC / 230 to 450V AC, -15% to +10%).
What is the run up time range of the 800SD-2-230?
The 800SD-2-230 is listed with run up time range of 0-30 sec, 0-60 sec.
What is the brand name of the 800SD-2-230?
The 800SD-2-230 is listed with brand name of SELEC.

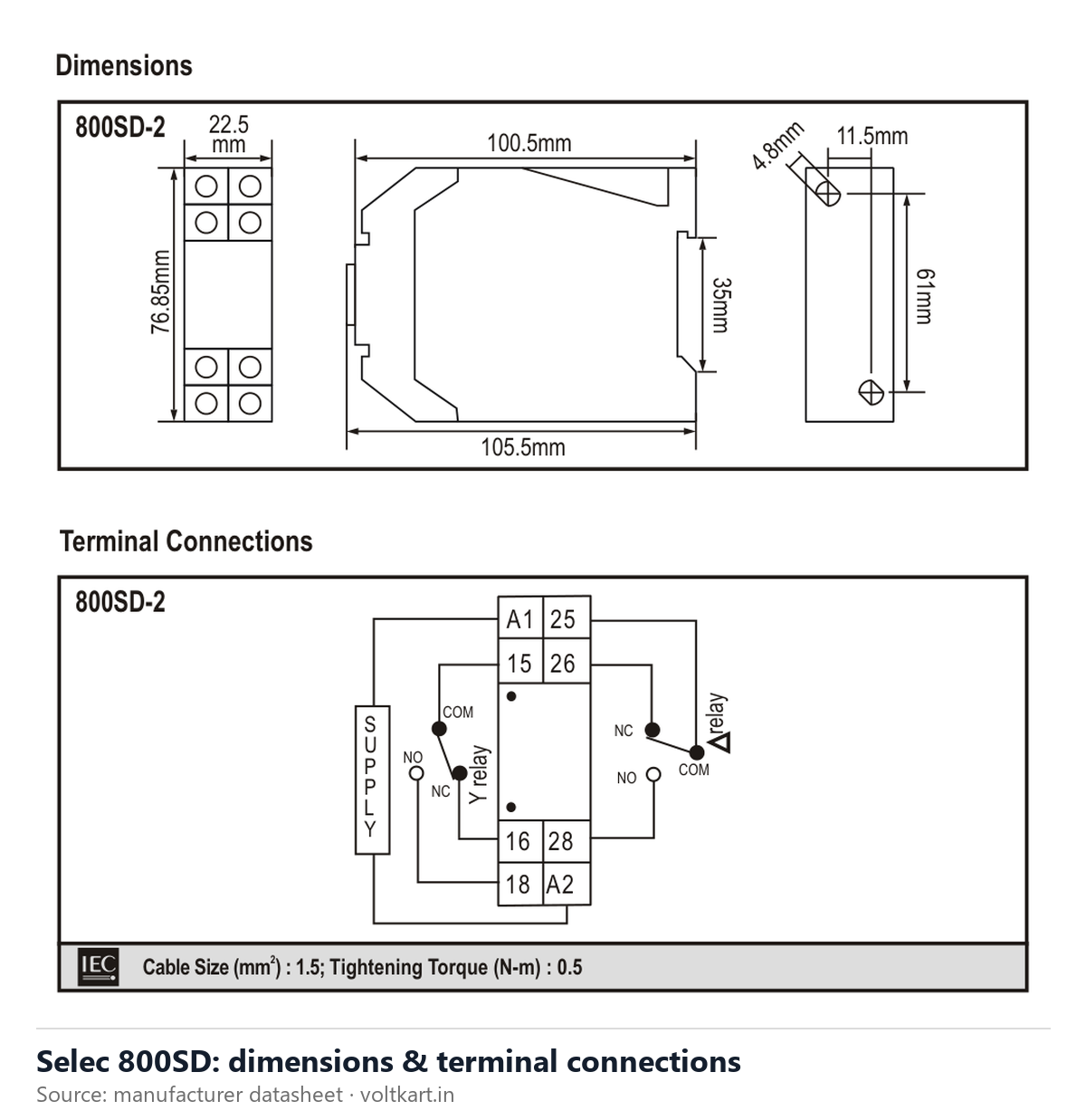

Where can I download the 800SD-2-230 datasheet?
You can download it from the datasheet section on this page: 800SD-2-230 datasheet.
Is the 800SD-2-230 genuine, and do you provide a GST invoice?
Yes. Voltkart is an authorised dealer of Selec, so you receive genuine Selec products, and every order comes with a GST invoice.
Can I order the 800SD-2-230 in bulk for OEM or wholesale use?
Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.
