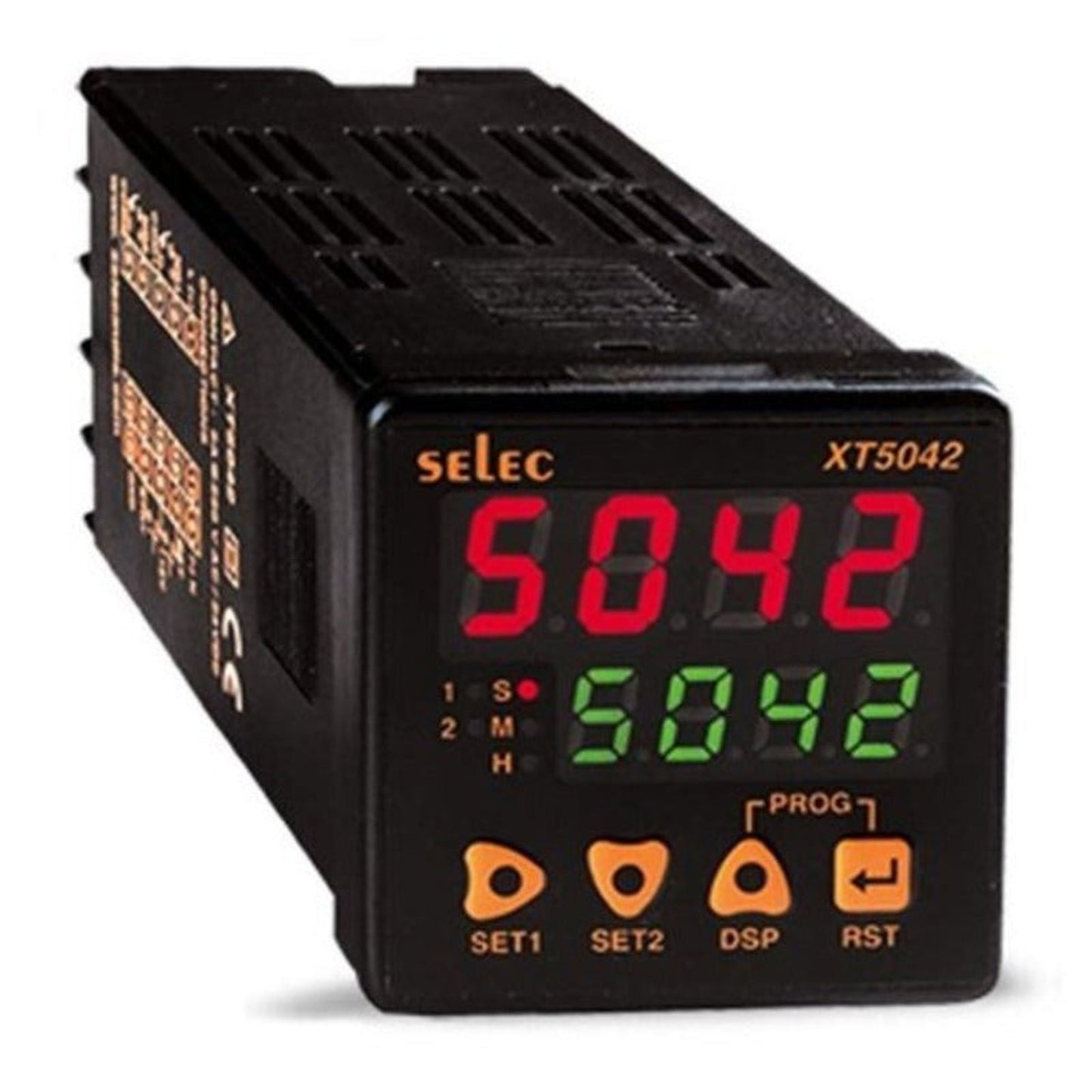

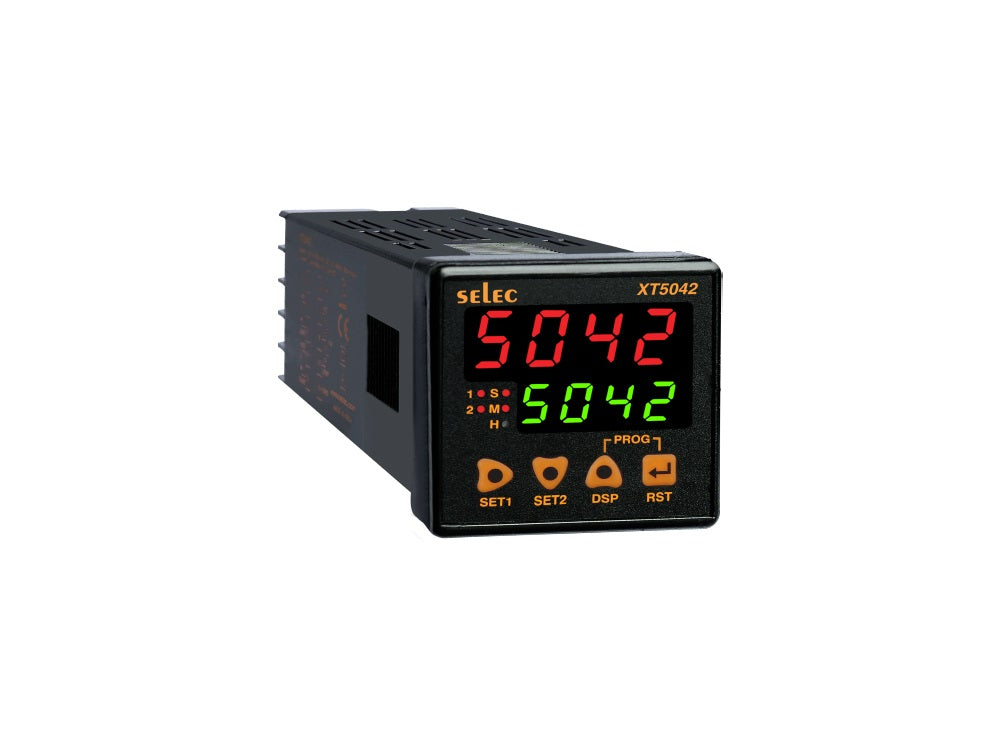

Selec XT5042 Digital Timer, Multifunction, Multi Range, Dual Display
Regular price
₹3,325
Regular price
₹5,634
Sale price
₹3,325
Incl. all taxes • Shipping calculated at checkout.
Price excl. GST
₹2,817.80
GST @ 18% included in above product price
1-year manufacturer warranty · Burnt or wiring damage not covered · Warranty terms
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Works well with
Schneider LC1D09, 9 Amp Contactor
₹1,421
Schneider LC1E0910, 9 Amp Contactor, coil voltage 220V AC
₹1,056
Schneider LC1D12, 12 Amp Contactor
₹1,600
Schneider LC1E1210, 12 Amp Contactor, coil voltage 220V AC
₹1,210
Schneider LC1D18, 18 Amp Contactor
₹1,857
Schneider LC1E1810, 18 Amp Contactor, coil voltage 220V AC
₹1,400
Description
XT5042, a digital timer from Selec. 4 Digit dual LED display Multi function multi range timer, 2 C/O SPST relay output, 48 x 48mm, 90 to 270V AC/DC Supply.
Supply Voltage
90 to 270V AC / DC , 24V DC
Output Contact
2 C/O SPST
Display Type
LED
Size
48 x 48mm
Technical specifications
| Make | Selec |
| Model | XT5042 |
| Display Type | LED |
| Display Configuration | 4 + 4 Digits |
| Output Contact | 2 C/O SPST |
| Feature | Memory Retention |
| Reset | Front, Remote, Power Interruption |
| Counting Direction | Up / Down |
| Supply Voltage | 90 to 270V AC / DC , 24V DC |
| Size | 48 x 48mm |
| Mounting Type | Panel Mount |
| Certification | CE, UL |
Notable features
- Range: 99.99 / 999.9 / 9999sec, 99.59min:sec / 999.9 / 9999min, 99.59hr:min / 999.9hr / 9999hr
- Operating Modes: Interval, ON Delay, Cyclic ON first, Cyclic OFF First, Forward - Pause - Reverse, Instantaneous + Delayed Batch
More about the XT5042
4 Digit dual LED display Multi function multi range timer, 2 C/O SPST relay output, 48 x 48mm, 90 to 270V AC/DC Supply
Frequently asked questions about the Selec XT5042
What is the XT5042?
4 Digit dual LED display Multi function multi range timer, 2 C/O SPST relay output, 48 x 48mm, 90 to 270V AC/DC Supply. It is a digital timer made by Selec.
What is the supply voltage of the XT5042?
The XT5042 is listed with supply voltage of 90 to 270V AC / DC , 24V DC.
What is the output contact of the XT5042?
The XT5042 is listed with output contact of 2 C/O SPST.
What is the display type of the XT5042?
The XT5042 is listed with display type of LED.
Where can I download the XT5042 datasheet?
You can download it from the datasheet section on this page: XT5042 datasheet.
Is the XT5042 genuine, and do you provide a GST invoice?
Yes. Voltkart is an authorised dealer of Selec, so you receive genuine Selec products, and every order comes with a GST invoice.
Can I order the XT5042 in bulk for OEM or wholesale use?
Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.
