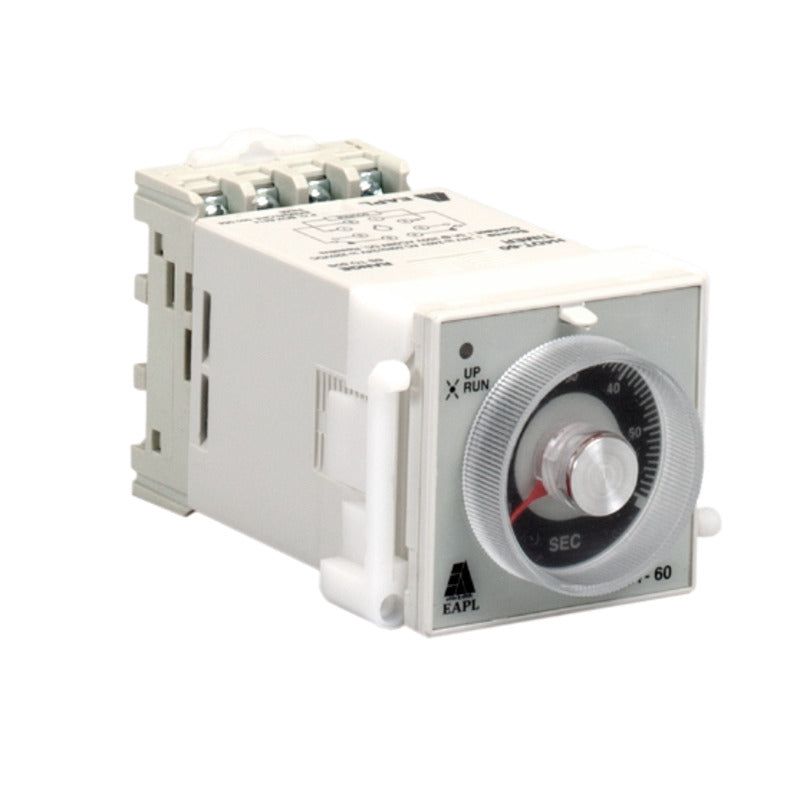

EAPL H4DT-10(CSA) 8 Pin on Delay Timer
Regular price
₹1,260
Regular price
₹1,610
Sale price
₹1,260
Incl. all taxes • Shipping calculated at checkout.
Price excl. GST
₹1,067.80
GST @ 18% included in above product price
Authorized Dealer
GST Invoice
PAN India Delivery
Fast Dispatch
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Works well with
Schneider LC1D09, 9Amp Contactor
₹1,421
Schneider LC1E0910, 9Amp Contactor, coil voltage 220vac
₹1,056
Schneider LC1D12, 12Amp Contactor
₹1,600
Schneider LC1E1210, 12Amp Contactor, coil voltage 220vac
₹1,210
Schneider LC1D18, 18Amp Contactor
₹1,857
Schneider LC1E1810, 18Amp Contactor, coil voltage 220vac
₹1,400
Description
H4DT-10(CSA) 8 is an EAPL timer -- on-delay -- verified against EAPL’s own official product catalogue.
Supply voltage
24V AC to 240V AC, or 24V DC to 220V DC (X-Version, universal input)
Mounting type
8-pin plug-in, panel mounted with base
Time range
1 to 10 seconds
Output
2 C/O relay
Technical specifications
| Make | EAPL |
| Model | H4DT-10(CSA) 8 |
| Function | On-delay |
| Supply voltage | 24V AC to 240V AC, or 24V DC to 220V DC (X-Version, universal input) |
| Mounting type | 8-pin plug-in, panel mounted with base |
| Time range | 1 to 10 seconds |
| Output | 2 C/O relay |
| Overall dimensions | 48 x 48 x 94mm (W x H x D) |
| Cut-out dimensions | 46 x 46mm (W x H) |
Frequently asked questions about the EAPL H4DT-10(CSA) 8
What is the supply voltage of the H4DT-10(CSA) 8?
24V AC to 240V AC, or 24V DC to 220V DC (X-Version, universal input), per EAPL’s official catalogue.
What is the mounting type of the H4DT-10(CSA) 8?
8-pin plug-in, panel mounted with base, per EAPL’s official catalogue.
What is the time range of the H4DT-10(CSA) 8?
1 to 10 seconds, per EAPL’s official catalogue.
What is the output of the H4DT-10(CSA) 8?
2 C/O relay, per EAPL’s official catalogue.
Where can I download the H4DT-10(CSA) 8 specifications?
You can download EAPL’s official product catalogue from the link on this page: H4DT-10(CSA) 8 catalogue.
Is the H4DT-10(CSA) 8 genuine, and do you provide a GST invoice?
Yes. Voltkart stocks genuine EAPL products, and every order comes with a GST invoice.
Can I order the H4DT-10(CSA) 8 in bulk for OEM or wholesale use?
Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.
