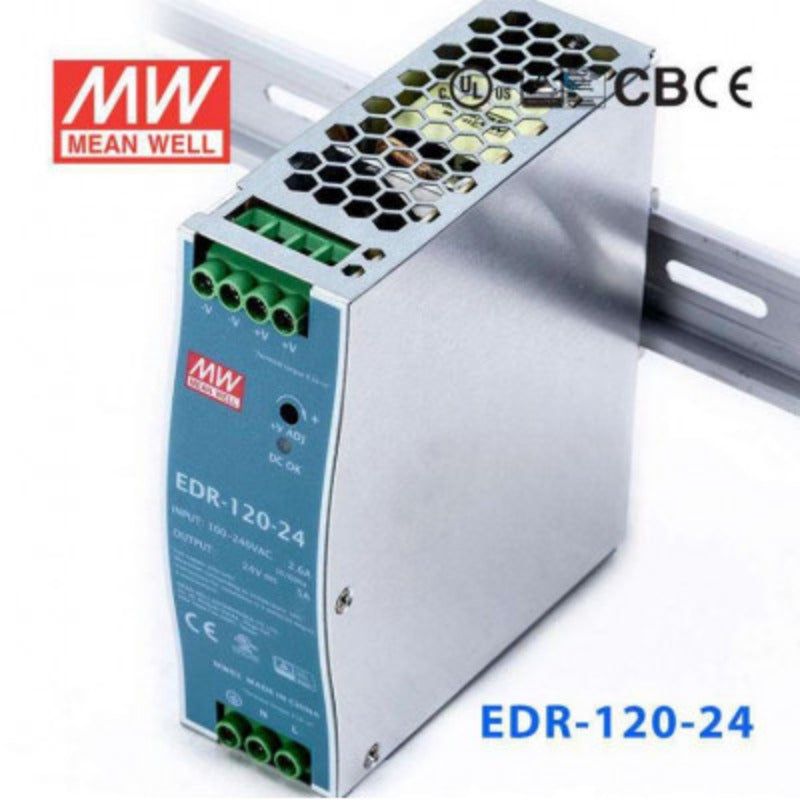

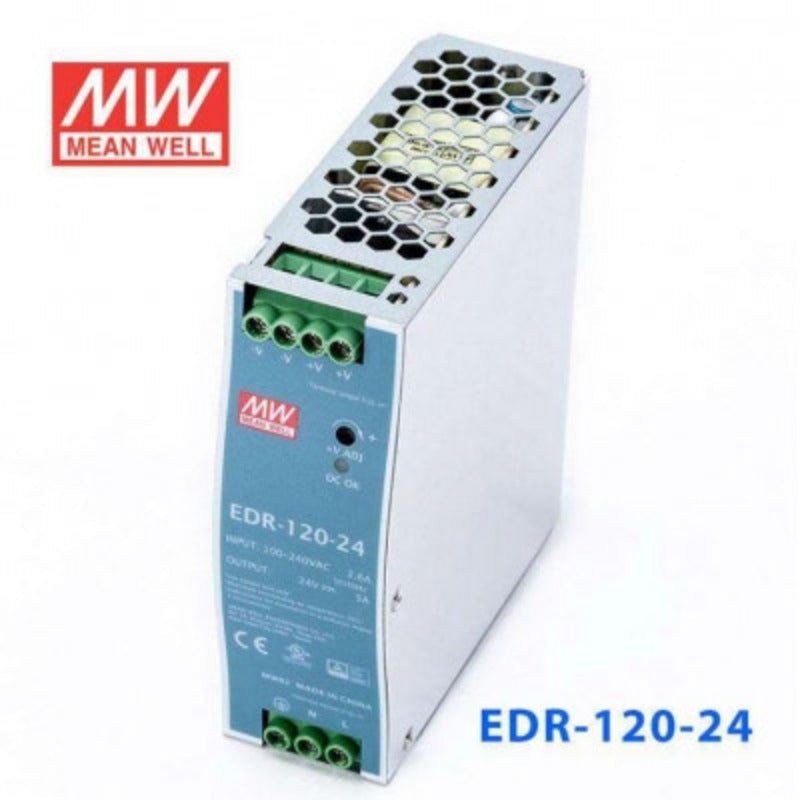

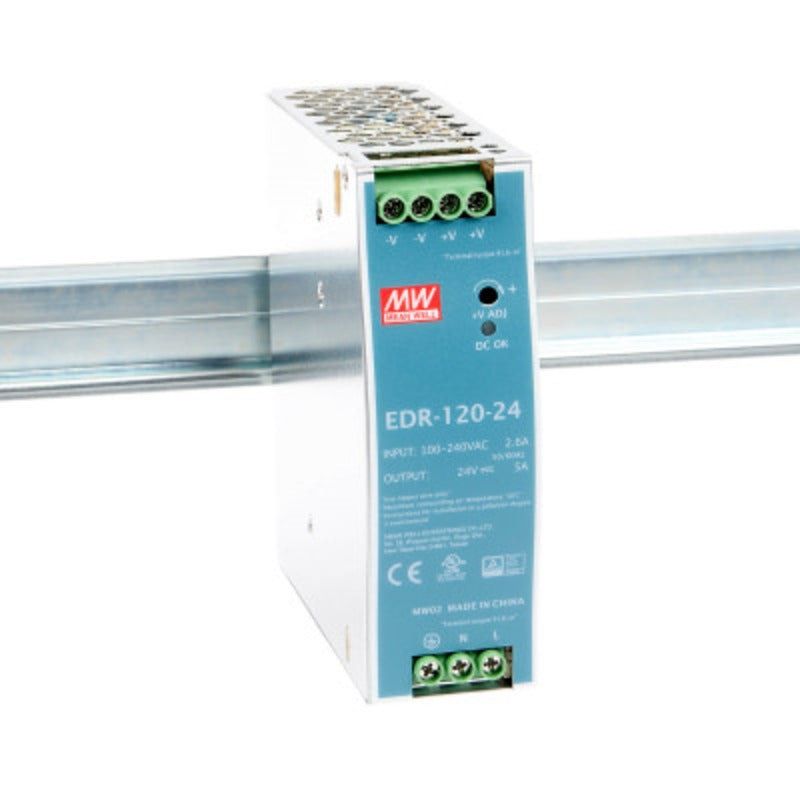

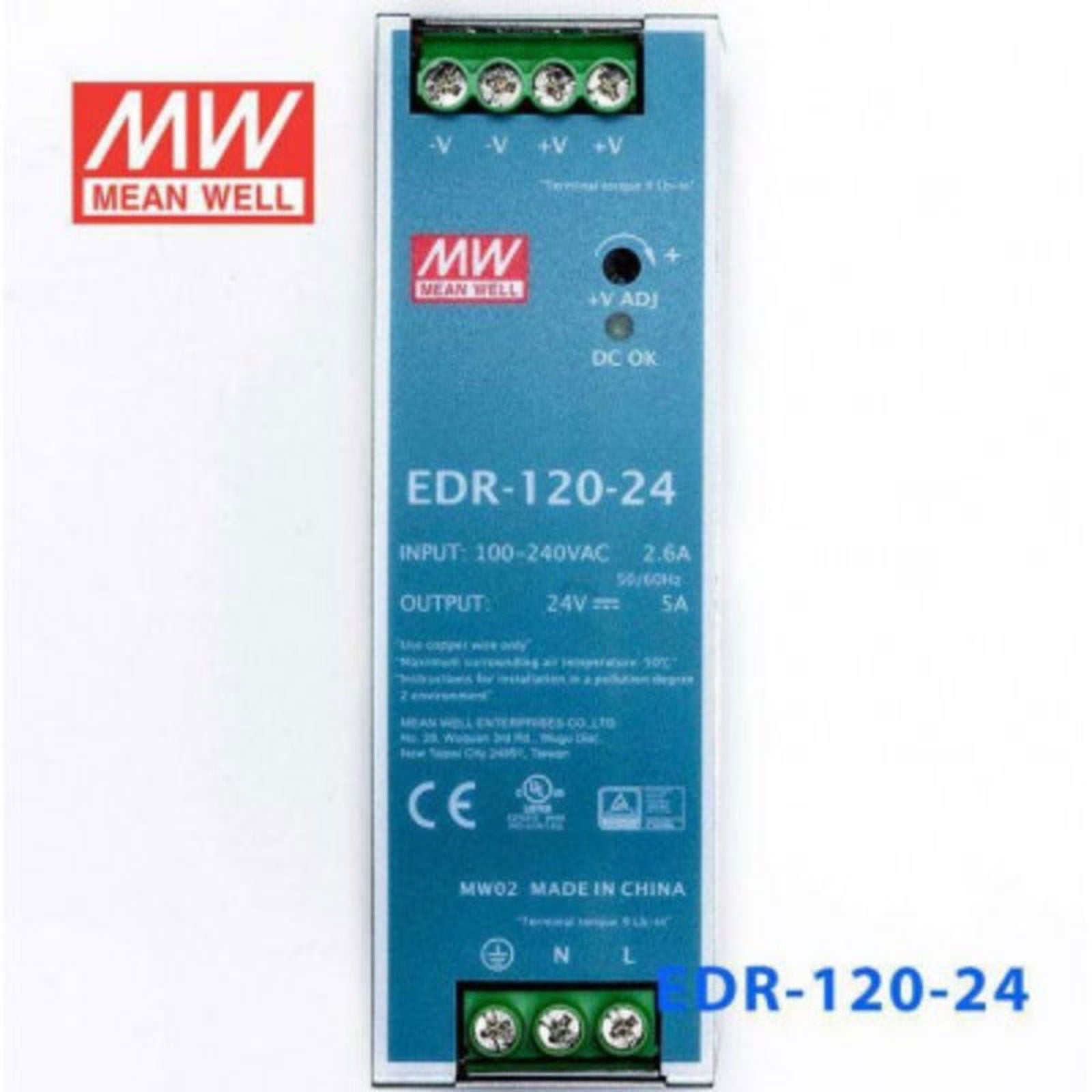

Mean Well EDR-120-24 SMPS 24V 5A DIN Rail Power Supply
Regular price
₹2,230
Regular price
₹3,700
Sale price
₹2,230
Incl. all taxes • Shipping calculated at checkout.
Price excl. GST
₹1,889.83
GST @ 18% included in above product price
Authorized Dealer
GST Invoice
PAN India Delivery
Fast Dispatch
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Works well with
Selec RPS120-24, Power Supply 24vdc, 5amp
₹1,560
Mean Well WDR-120-24 SMPS double phase input, 24V 5A DIN Rail Power Supply
₹6,588
Mean Well LRS-100-24 SMPS - 24V 4.5A - 108W Metal Power Supply
₹1,058
Unison 101 ZDA 48 25 01, SSR Dc to Ac, 25amp
₹302
Unison 901 ZDA 48 25 01 AL5, SSR Dc to Ac, 25amp
₹450
Selec UNIX-1-230V, PLC
₹4,490
Description
EDR-120-24, a din rail mounted from Mean Well, rated 24 VDC output at 5 AMP, 120W output power.
Output voltage
24 VDC
Output current
5 AMP
Power
120W
Input voltage
90 to 264V AC 127 to 370V DC [DC input operation possible by connecting AC/L(+), AC/N(-)]
Technical specifications
| Make | Mean Well |
| Model | EDR-120-24 |
| Output voltage | 24 VDC |
| Output current | 5 AMP |
| Input voltage | 90 to 264V AC 127 to 370V DC [DC input operation possible by connecting AC/L(+), AC/N(-)] |
| AC inrush current (max.) | Cold start, 35A at 230VAC |
| DC adjustment range | 12V: 12~14V, 24V: 24~28V, 48V: 48~55V |
| Overload protection | 105%~130% Constant current limiting, auto-recovery |
| Over temperature protection | Shut down o/p voltage, re-power on to recover |
| Withstand voltage | I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC |
| Working temperature | -20~+60!aC (refer to output derating curve |
| Safety standards | UL60950-1, TUV EN60950-1 approved |
| Connection (screw DIN terminal) | I/P: 3 poles, O/P: 4 poles |
| Dimension (LxWxH) (mm) | 40x 125.2x 113.5 |
| Type | DIN Rail Type |
| Features | Standard |
| Series | EDR(Economical) |
| Mechanical Form | DIN Rail |
| IP Level | Non-Waterproof |
| Protections | Short circuit / Overload / Over voltage / Over temperature |
Notable features
- Current adjustment range: 10%~100% rated output current adjustable by 1~10Vdc, PWM signal or resistance
- Over voltage protection: 14V: 14~17V, 24V: 29~33V, 48V: 56~65V Shut down o/p voltage, re-power on to recover
- EMC standards: EN55022 classA, EN61000-3-2(125W for EDR-150),3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2(EN50082-2)
- Universal AC input / Full range
- Cooling by free air convection

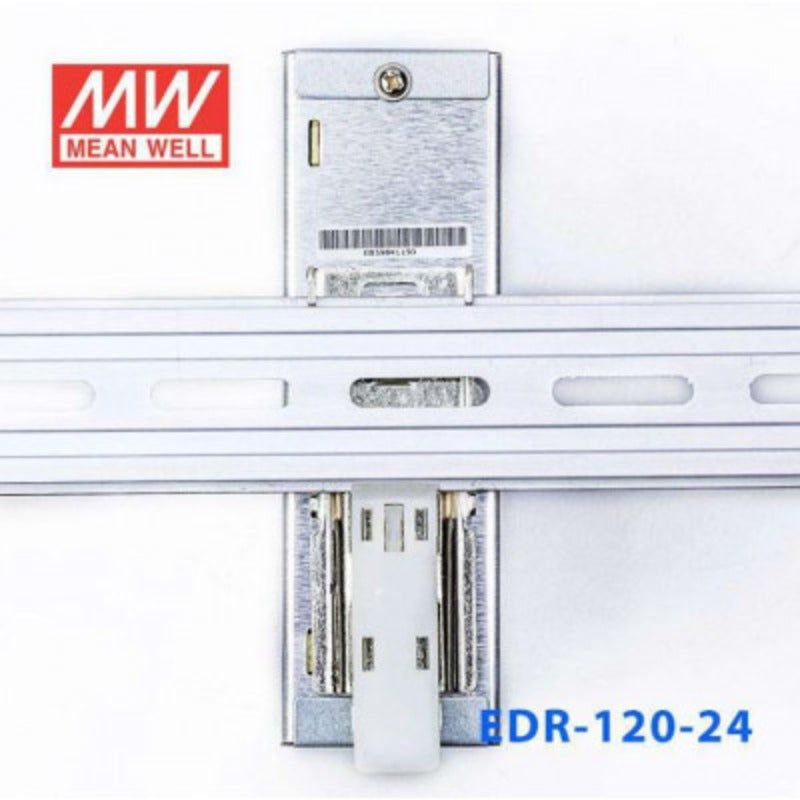

- Can be installed on DIN rail TS35 / 7.5 or 15
- UL508 (industrial control equipment) listed
- EN61000-6-2 (EN50082-2) industrial immunity level
Frequently asked questions about the Mean Well EDR-120-24
What is the output of the Mean Well EDR-120-24?
The EDR-120-24 is rated 24 VDC output, output current 5 AMP, 120W.
What input voltage does the EDR-120-24 accept?
The EDR-120-24 accepts an input of 90 to 264V AC 127 to 370V DC [DC input operation possible by connecting AC/L(+), AC/N(-)], as listed on this page.
What is the IP rating of the EDR-120-24?
The EDR-120-24 is listed as Non-Waterproof.
Where can I download the EDR-120-24 datasheet?
You can download it from the datasheet section on this page: EDR-120-24 datasheet.
Is the EDR-120-24 genuine, and do you provide a GST invoice?
Yes. Voltkart is an authorised dealer of Mean Well, so you receive genuine Mean Well products, and every order comes with a GST invoice.
Can I order the EDR-120-24 in bulk for OEM or wholesale use?
Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.
