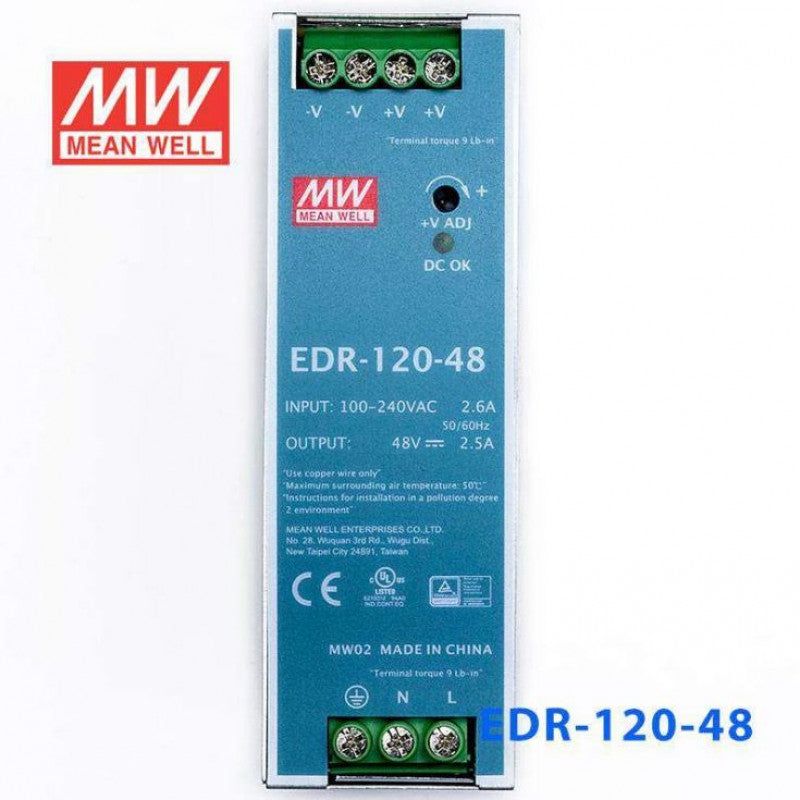

Mean Well EDR-120-48 DIN Rail SMPS | 48V 2.5A 120W Industrial Power Supply
The Mean Well EDR-120-48 is a compact and highly reliable 48V 2.5A DIN Mounted SMPS designed for industrial automation, control panels, PLC systems, communication equipment, security systems, and factory automation applications. Delivering 120W of regulated output power, this industrial-grade DIN Rail Power Supply combines high efficiency, a slim design, and comprehensive protection features, making it an excellent choice for OEMs, panel builders, and system integrators.
Part of the trusted Mean Well EDR Series, the EDR-120-48 accepts a universal input voltage of 90–264VAC or 127–370VDC and provides a stable 48VDC output at 2.5A. Its slim 40mm-wide metal housing saves valuable DIN rail space while allowing efficient heat dissipation through natural air convection. With an efficiency of up to 88.5%, the power supply minimizes heat generation and energy consumption, making it ideal for continuous industrial operation. The output voltage can be adjusted between 48V and 55V, providing flexibility for different applications. It also incorporates built-in short circuit, overload, over-voltage, and over-temperature protection, ensuring maximum safety and long service life.
The EDR-120-48 complies with industrial standards and is suitable for installation on TS-35/7.5 and TS-35/15 DIN rails. Its rugged construction and dependable performance make it a preferred power supply for industrial control cabinets, machine automation, instrumentation, and process control systems.
Key Features
• Genuine Mean Well EDR Series DIN Rail Power Supply
• Output Voltage: 48VDC
• Output Current: 2.5A
• Rated Output Power: 120W
• Universal AC Input: 90–264VAC
• Slim 40mm DIN Rail mounting design
• High efficiency up to 88.5%
• Adjustable output voltage (48–55VDC)
• Built-in Short Circuit, Overload, Over Voltage & Over Temperature protection
• Cooling by natural air convection
• Industrial-grade reliability
Technical Specifications
• Model: EDR-120-48
• Brand: Mean Well
• Series: EDR Series
• Product Type: DIN Mounted SMPS / Industrial Power Supply
• Input Voltage: 90–264VAC / 127–370VDC
• Output Voltage: 48VDC
• Output Current: 2.5A
• Rated Power: 120W
• Efficiency: Up to 88.5%
• Output Voltage Adjustment: 48–55VDC
• Mounting: TS-35/7.5 or TS-35/15 DIN Rail
• Cooling Method: Natural Air Convection

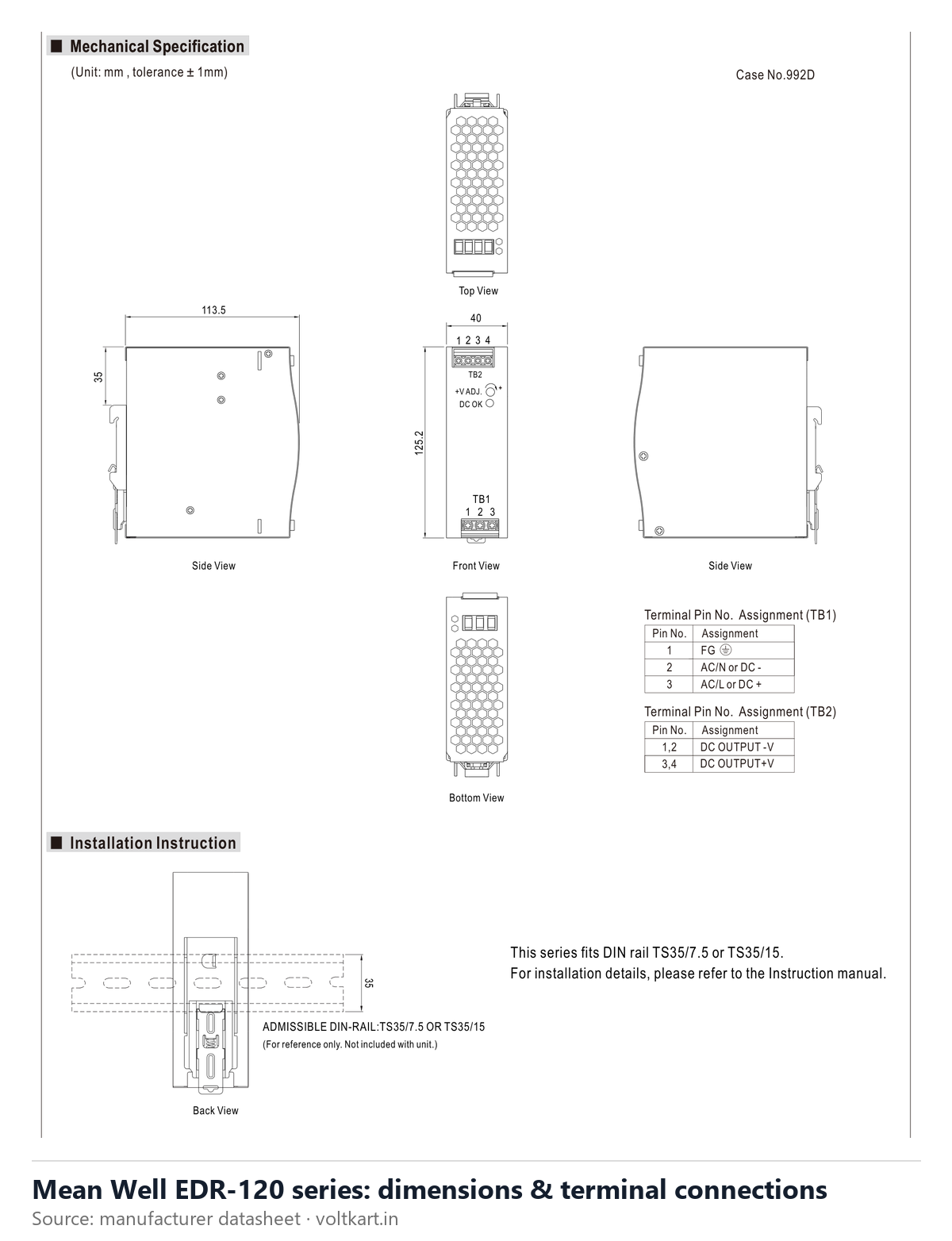

• Dimensions: 40 × 125.2 × 113.5 mm
• Operating Temperature: -20°C to +60°C
Applications
• Industrial control panels
• PLC automation systems
• Factory automation equipment
• Process control systems
• Communication equipment
• Security and surveillance systems
• Instrumentation panels
• CNC machines
• Conveyor automation systems
• OEM industrial machinery
Why Buy From Voltkart?
• Authorised Mean Well distributor in India
• Genuine Mean Well products with manufacturer warranty
• GST invoice provided with every order
• Pan India delivery in 5–7 days
• Bulk pricing available on WhatsApp
• Technical support for product selection and replacement
Frequently Asked Questions
Q: What is the output rating of the Mean Well EDR-120-48?
A: The EDR-120-48 delivers a regulated 48VDC output at 2.5A, providing a maximum output power of 120W.
Q: What protection features are included in the EDR-120-48?
A: The power supply includes built-in short circuit, overload, over-voltage, and over-temperature protection, ensuring reliable operation in demanding industrial environments.
Q: Where is the Mean Well EDR-120-48 commonly used?
A: The EDR-120-48 is widely used in industrial control panels, PLC systems, factory automation, CNC machines, communication equipment, instrumentation panels, and OEM machinery that require a stable 48VDC DIN Rail power supply.
