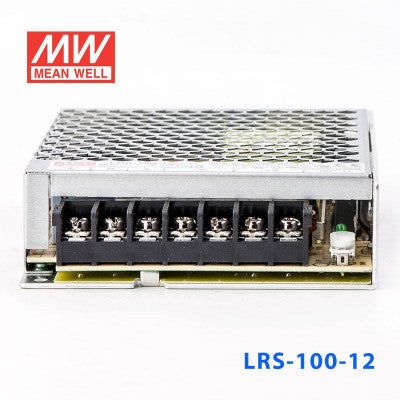

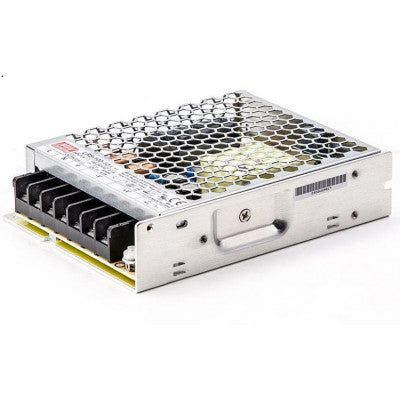

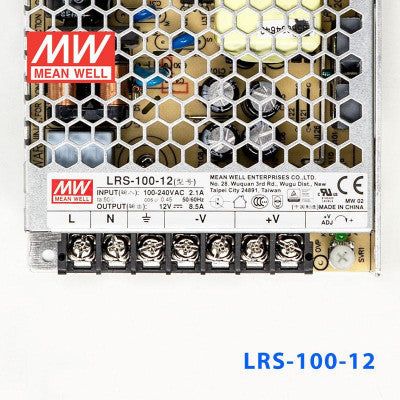

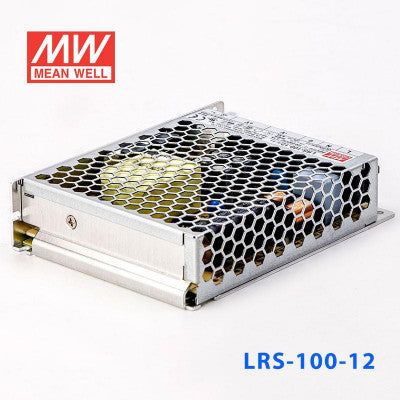

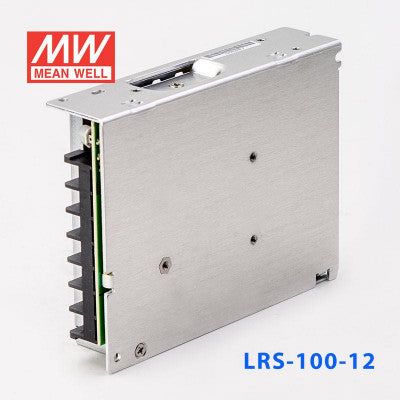

Mean Well LRS-100-12 SMPS 12V 8.5A 100W Industrial Power Supply

The MEAN WELL LRS-100-12 is a compact and highly reliable 100W single-output switching power supply designed for industrial automation, electrical panels, LED systems, CNC machines, and control equipment. This enclosed AC-DC SMPS provides a stable 12V DC output with 8.5A current capacity and supports universal AC input from 85V to 264V AC, making it suitable for industrial and commercial applications worldwide.

The Mean Well LRS-100-12 features a slim low-profile 30mm design that saves panel space while offering excellent heat dissipation through its metal mesh casing. Built with high efficiency up to 91%, this industrial SMPS delivers long operational life, low no-load power consumption, and stable performance even in demanding environments. The power supply includes protection against short circuit, overload, and overvoltage for enhanced system safety and reliability.

Key Features

• 12V DC output, 8.5A current
• 100W enclosed switching power supply
• Universal AC input: 85~264V AC
• Slim low-profile 30mm design
• High efficiency up to 91%
• Built-in overload, short circuit & overvoltage protection
• Cooling by free air convection
• Reliable operation up to 70°C ambient temperature
• Suitable for industrial automation applications

Applications

• Industrial control panels
• PLC and automation systems
• CCTV and security systems
• LED lighting and signage applications
• CNC machines and factory automation
• Electrical and electronic equipment
• Conveyor systems and process automation

Why Buy from Voltkart?

Authorised Mean Well distributor in India. GST invoice provided. Pan India delivery in 5-7 days. Bulk pricing available on WhatsApp.

Frequently Asked Questions (FAQ)

What is the output voltage and current of Mean Well LRS-100-12?

The Mean Well LRS-100-12 provides a regulated 12V DC output with maximum output current of 8.5A and total output power of 100W.

What is the input voltage range of LRS-100-12?

This SMPS supports universal AC input from 85V to 264V AC and DC input from 120V to 373V DC, making it suitable for global industrial applications.

Does Mean Well LRS-100-12 have overload and short circuit protection?

Yes, the LRS-100-12 includes built-in protections against short circuit, overload, and overvoltage to ensure safe and reliable operation.

What is the efficiency of Mean Well LRS-100-12?

The Mean Well LRS-100-12 offers high efficiency up to 91%, resulting in lower heat generation and improved energy savings.

Can the output voltage of LRS-100-12 be adjusted?

Yes, the output voltage can be adjusted from approximately 10.2V to 13.8V DC using the built-in voltage adjustment feature.

Key Specifications:-

• Output Voltage           12V

• Type                             Enclosed Type

• Approx. Wattage         102W

• Features                       Standard

• Series                           LRS(Reliable)

• Mechanical Form         Enclosed
• IP Level                        Non-Waterproof

• Input Voltage              100-240V auto-select
