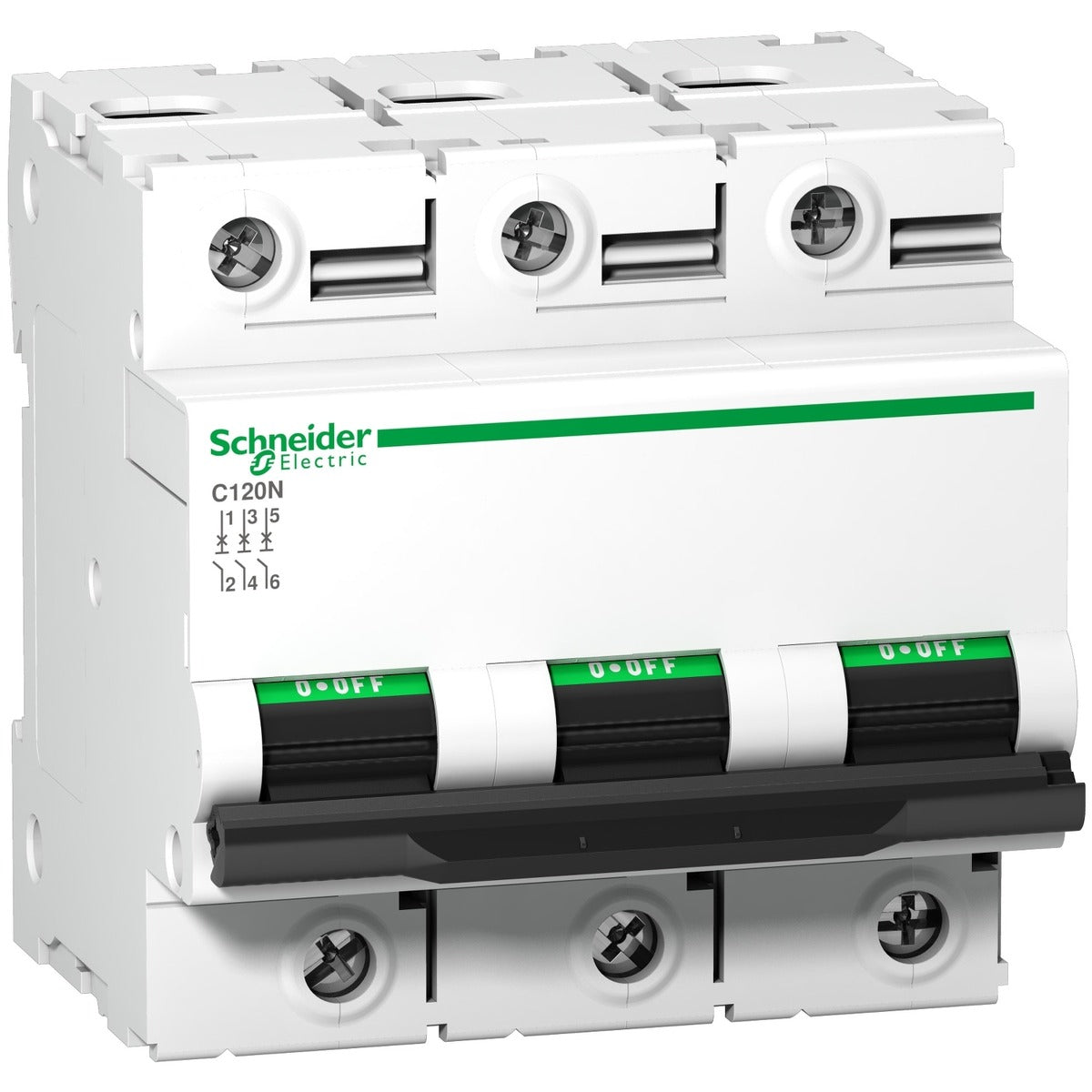

Schneider 80 amp, three pole mcb, C curve, C120N 10kA

Q: What is the in rated current of the A9N18365?

80 A, as published by Schneider Electric.

Q: What is the poles description of the A9N18365?

3P, as published by Schneider Electric.

Q: What is the curve code of the A9N18365?

C, as published by Schneider Electric.

Q: Where can I download the A9N18365 datasheet?

You can download the official PDF datasheet here: A9N18365 datasheet (PDF) on this page.

Q: Is the A9N18365 genuine, and do you provide a GST invoice?

Yes. Voltkart stocks genuine Schneider Electric products, and every order comes with a GST invoice.

Q: Can I order the A9N18365 in bulk for OEM or panel-building use?

Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.

Rs. 8,163.00

~~Rs. 19,216.00~~ Rs. 8,163.00

58% off

Incl. all taxes • Shipping calculated at checkout.

Price excl. GST Rs. 6,917.80

GST @ 18% included in above product price

Quantity

GST Invoice PAN India Delivery Fast Dispatch

Need bulk pricing? Get exclusive rates for large orders

Chat on WhatsApp Request a formal quote

🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere

Check delivery date

Works well with

Schneider MCCB 1000 amp, 4 pole 50ka, LV510241 Rs. 120,298

Schneider MCCB 1000 amp, 3 pole 50ka, LV510231 Rs. 86,849

Schneider MCCB 800 amp, 4 pole 50ka, LV508241 Rs. 83,130

Schneider MCCB 800 amp, 3 pole 50ka, LV508231 Rs. 66,580

Description

A9N18365 is a Schneider Electric miniature circuit breaker (MCB). Schneider lists it as: Miniature circuit-breaker, Acti9 C120N, 3P, 80 A, C curve, 10000 A (IEC 60898-1), 10 kA (IEC 60947-2). The C120N is Schneider’s higher-rating Acti9 MCB range, for feeders above 63A.

In rated current

80 A

Poles description

3P

Curve code

C

Breaking capacity (IEC 60898-1)

10 kA

Technical specifications

Make	Schneider Electric
Model	A9N18365
Product name	Acti9 C120
Product or component type	Miniature circuit-breaker
Device application	Distribution
Poles description	3P
Number of protected poles	3
In rated current	80 A at 30 °C
Network type	AC
Trip unit technology	Thermal-magnetic
Curve code	C
Breaking capacity	10000 A Icn at 400 V AC 50/60 Hz conforming to EN/IEC 60898-1; 6 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2; 20 kA Icu at 220...240 V AC 50/60 Hz...
Suitability for isolation	Yes conforming to IEC 60947-2
Standards	EN/IEC 60898-1; EN/IEC 60947-2
Product certifications	EAC
Network frequency	50/60 Hz
Ue rated operational voltage	<= 375 V DC; 380...415 V AC 50/60 Hz
Ics rated service breaking capacity	7500 A 75 % conforming to EN/IEC 60898-1 - 400 V AC 50/60 Hz; 4.5 kA 75 % conforming to EN/IEC 60947-2 - 440 V AC 50/60 Hz
Ui rated insulation voltage	500 V AC 50/60 Hz conforming to EN/IEC 60947-2
Uimp rated impulse withstand voltage	6 kV conforming to EN/IEC 60947-2
Contact position indicator	Yes
Control type	Toggle
Mounting mode	Clip-on
Mounting support	35 mm symmetrical DIN rail
Height	81 mm
Depth	73 mm
Width	81 mm
Net weight	0.615 kg
Colour	White
IP degree of protection	IP20 conforming to IEC 60529
