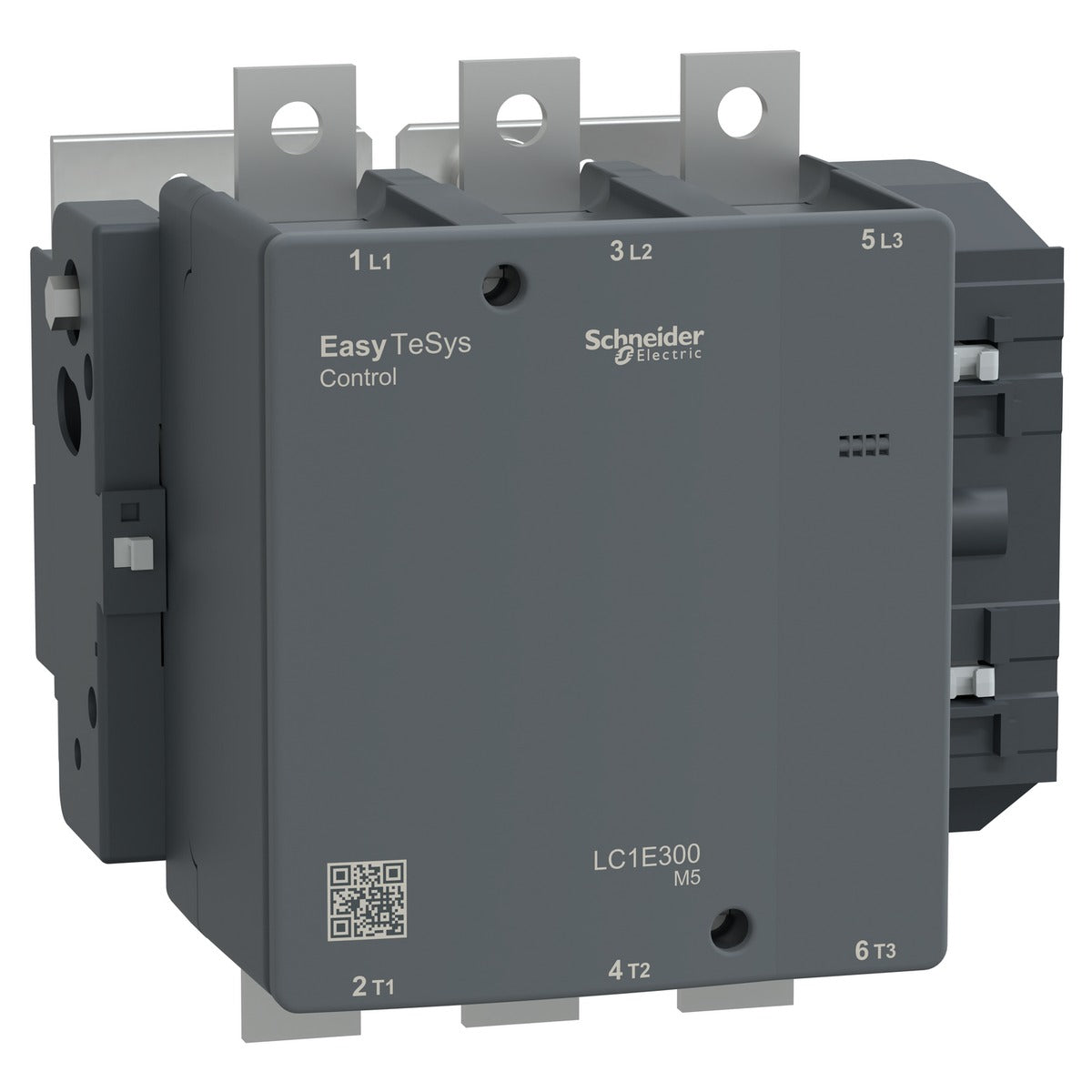

Schneider LC1E300, 300Amp Contactor, coil voltage 220vac

Q: What is the ac-3 rated current of the LC1E300?

300 A, as published by Schneider Electric.

Q: What is the uc control circuit voltage of the LC1E300?

220 V AC 50 Hz, as published by Schneider Electric.

Q: What is the poles description of the LC1E300?

3P, as published by Schneider Electric.

Q: Where can I download the LC1E300 datasheet?

You can download the official PDF datasheet here: LC1E300 datasheet (PDF) on this page.

Q: Is the LC1E300 genuine, and do you provide a GST invoice?

Yes. Voltkart stocks genuine Schneider Electric products, and every order comes with a GST invoice.

Q: Can I order the LC1E300 in bulk for OEM or panel-building use?

Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.

Rs. 56,106.00

~~Rs. 127,815.00~~ Rs. 56,106.00

56% off

Incl. all taxes • Shipping calculated at checkout.

Price excl. GST Rs. 47,547.46

GST @ 18% included in above product price

Quantity

GST Invoice PAN India Delivery Fast Dispatch

Need bulk pricing? Get exclusive rates for large orders

Chat on WhatsApp Request a formal quote

🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere

Check delivery date

Works well with

Schneider LC1D09, 9Amp Contactor Rs. 1,421

Schneider LC1E1810, 18Amp Contactor, coil voltage 220vac Rs. 1,400

Schneider LRE22 Over Load Relay Rs. 2,030

Schneider LC1D40, 40Amp Contactor Rs. 6,830

Description

LC1E300 is a Schneider Electric Easy TeSys (LC1E) contactor. Schneider lists it as: Easy TeSys contactor 3P(3 NO) - AC-3 - <= 440 V 300A - 220 V AC coil.

AC-3 rated current

300 A

Uc control circuit voltage

220 V AC 50 Hz

Poles description

3P

Utilisation category

AC-3

Technical specifications

Make	Schneider Electric
Model	LC1E300
Range of product	Easy TeSys Control
Product or component type	Contactor
Contactor application	Motor control; Resistive load
Utilisation category	AC-3; AC-3e; AC-1
Poles description	3P
Ue rated operational voltage	Power circuit: <= 690 V AC 50/60 Hz
Ie rated operational current	300 A (at <55 °C) at <= 440 V AC AC-3 for power circuit; 265 A (at <55 °C) at <= 440 V AC AC-3e for power circuit; 320 A (at <40 °C) at <= 440 V AC AC-1 for power circuit
Uc control circuit voltage	220 V AC 50 Hz
Motor power kW	90 kW at 220/230 V AC 50/60 Hz; 160 kW at 380/400 V AC 50/60 Hz
Pole contact composition	3 NO
Ith conventional free air thermal current	320 A (at 40 °C) for power circuit
Rated breaking capacity	2400 A at 440 V for power circuit conforming to IEC 60947
Power dissipation per pole	27 W AC-3; 31 W AC-1
Ui rated insulation voltage	690 V conforming to IEC 60947-4-1
Uimp rated impulse withstand voltage	8 kV coil not connected to the power circuit conforming to IEC 60947
Mechanical durability	5000000 cycles
Electrical durability	400000 cycles AC-1; 500000 cycles AC-3
Operating time	40...65 ms on closing; 100...170 ms on opening
Maximum operating rate	1200 cyc/h 55 °C
Connections - terminals	Power circuit: cable with lug 1 1…4 mm² - external diameter: 240 mm - cable stiffness: flexible without cable end; Power circuit: bars 2 1…4 mm² - cable stiffness:...
Auxiliary contact composition	Without
Mounting support	Plate
Standards	EN/IEC 60947-1; EN/IEC 60947-4-1; GB/T 14048.1; GB/T 14048.4
Product certifications	CB Scheme; CCC; CE; EAC
IP degree of protection	IP00 conforming to IEC 60529
Permissible ambient air temperature around the device	-20…70 °C at Uc; -60…80 °C storage; -5…55 °C operation
