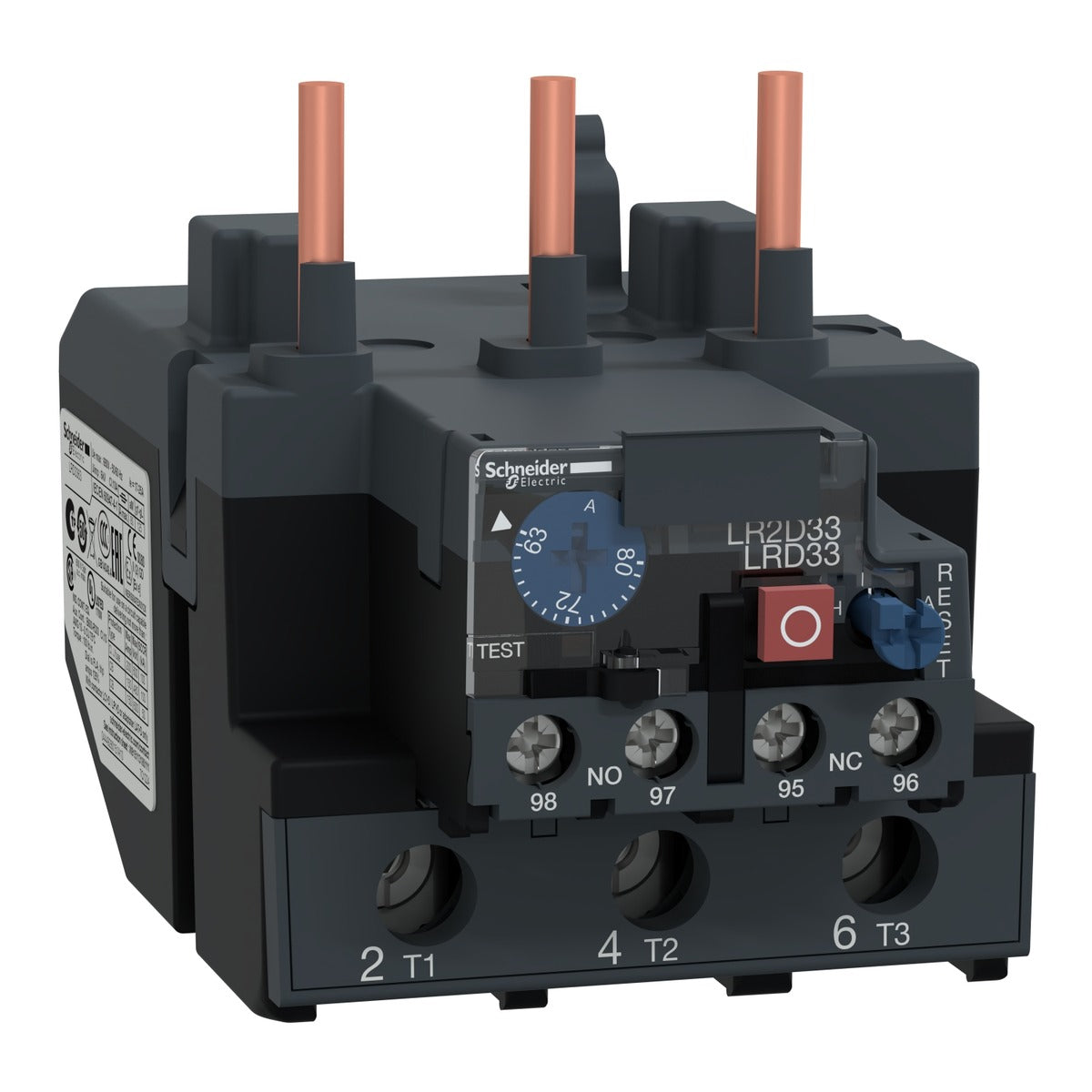

Schneider LRD3363 Over Load Relay 63-80Amp

Rs. 7,418.00

~~Rs. 16,900.00~~ Rs. 7,418.00

56% off

Incl. all taxes • Shipping calculated at checkout.

Price excl. GST Rs. 6,286.44

GST @ 18% included in above product price

Quantity

GST Invoice PAN India Delivery Fast Dispatch

Need bulk pricing? Get exclusive rates for large orders

Chat on WhatsApp Request a formal quote

🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere

Check delivery date

Works well with

Schneider LC1D09, 9Amp Contactor Rs. 1,421

Schneider LC1E1810, 18Amp Contactor, coil voltage 220vac Rs. 1,400

Schneider LRE22 Over Load Relay Rs. 2,030

Schneider LC1D40, 40Amp Contactor Rs. 6,830

Description

LRD3363 is a Schneider Electric TeSys Deca thermal overload relay. Schneider lists it as: TeSys LRD thermal overload relays - 63...80 A - class 10A.

Thermal protection adjustment range

63…80 A

Thermal overload class

Class 10A conforming to IEC 60947-4-1

Product or component type

Differential thermal overload relay

Network type

DC

Technical specifications

Make	Schneider Electric
Model	LRD3363
Product name	TeSys LRD; TeSys Deca
Product or component type	Differential thermal overload relay
Relay application	Motor protection
Product compatibility	LC1D80; LC1D95
Network type	DC; AC
Thermal overload class	Class 10A conforming to IEC 60947-4-1
Thermal protection adjustment range	63…80 A
Ui rated insulation voltage	Power circuit: 1000 V conforming to IEC 60947-4-1; Power circuit: 600 V conforming to CSA; Power circuit: 600 V conforming to UL
Network frequency	0...400 Hz
Mounting support	Plate, with specific accessories; Rail, with specific accessories
Tripping threshold	1.14 +/- 0.06 Ir conforming to IEC 60947-4-1
Auxiliary contact composition	1 NO + 1 NC
Ith conventional free air thermal current	5 A for signalling circuit
Ue rated operational voltage	1000 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1
Uimp rated impulse withstand voltage	6 kV conforming to IEC 60947-1
Control type	Red push-button: stop; Blue push-button: reset
Connections - terminals	Power circuit: screw clamp terminals 1 cable(s) 4…35 mm² flexible without cable end; Power circuit: screw clamp terminals 1 cable(s) 4…35 mm² flexible with cable end
Height	81 mm
Width	70 mm
Depth	115 mm
Net weight	0.51 kg
IP degree of protection	IP20 conforming to IEC 60529
Ambient air temperature for operation	-20…60 °C without derating conforming to IEC 60947-4-1
Standards	EN/IEC 60947-4-1; EN/IEC 60947-5-1; UL 60947-4-1; UL 60947-5-1
Product certifications	IEC; UL; CSA; CCC
