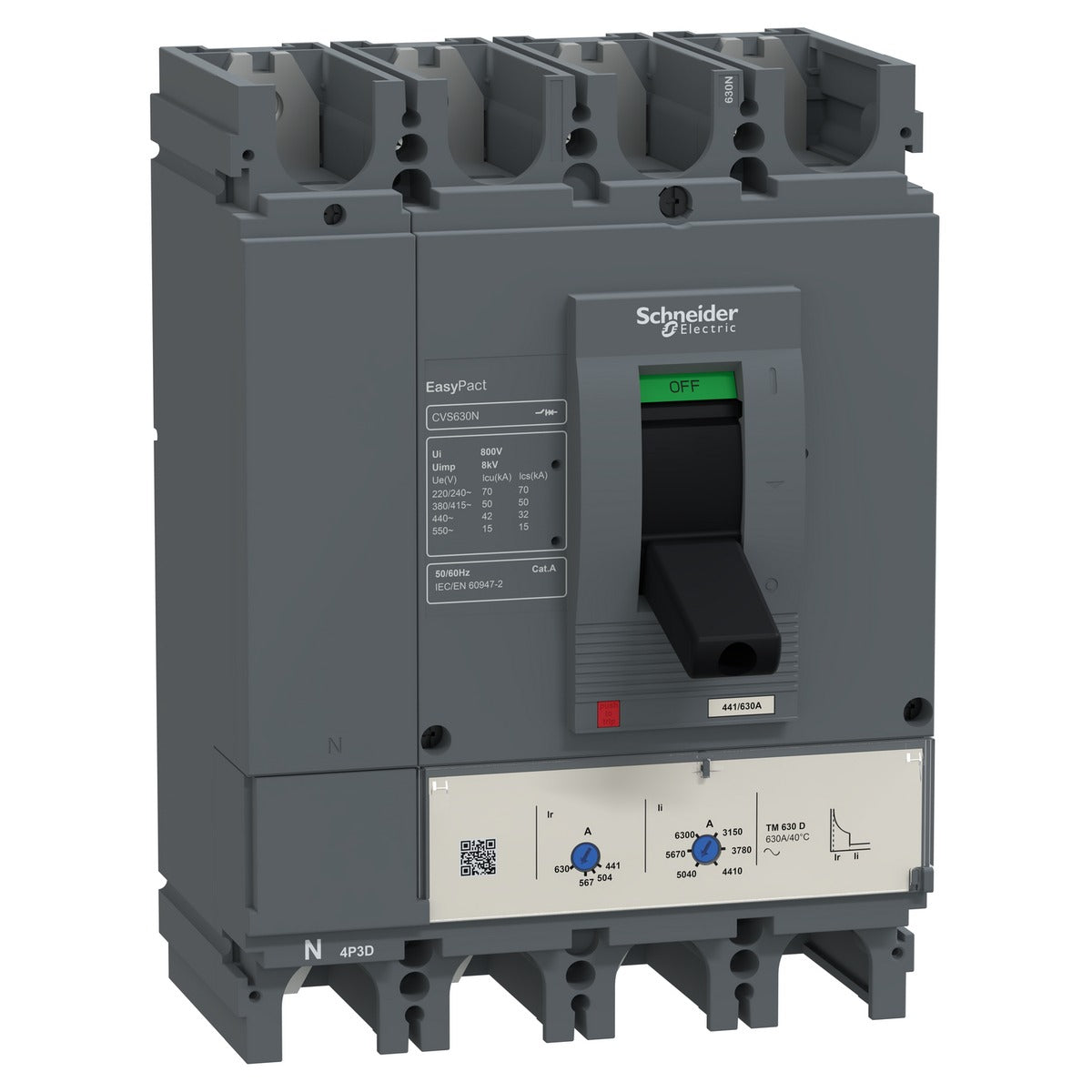

Schneider MCCB 500 amp, 4 pole 50ka, LV563318

Rs. 47,071.00

~~Rs. 94,170.00~~ Rs. 47,071.00

50% off

Incl. all taxes • Shipping calculated at checkout.

Price excl. GST Rs. 39,890.68

GST @ 18% included in above product price

Quantity

GST Invoice PAN India Delivery Fast Dispatch

Need bulk pricing? Get exclusive rates for large orders

Chat on WhatsApp Request a formal quote

🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere

Check delivery date

Works well with

Schneider LC1D09, 9Amp Contactor Rs. 1,421

Schneider LC1E1810, 18Amp Contactor, coil voltage 220vac Rs. 1,400

Schneider 20 ampere single pole mcb, c curve Rs. 220

Schneider 40 amp, double pole mcb, C curve Rs. 931

Description

LV563318 is a Schneider Electric EasyPact CVS moulded case circuit breaker (MCCB). Schneider lists it as: Circuit breaker EasyPact CVS630N, 50 kA at 415 VAC, 500 A rating thermal magnetic TM-D trip unit, 4P 3d.

In rated current

500 A

Poles description

4P

Trip unit technology

Thermal-magnetic

Breaking capacity (Icu, 415V)

50 kA

Technical specifications

Make	Schneider Electric
Model	LV563318
Range of product	EasyPact CVS400...630
Product name	EasyPact CVS
Product or component type	Circuit breaker
Device application	Distribution
Poles description	4P
Protected poles description	3D
Earth leakage protection (Vigi add on)	Without
In rated current	500 A at 40 °C
Network type	AC
Utilisation category	Category A
Icu Breaking capacity	70 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2; 50 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2; 42 kA Icu at 440 V AC 50/60 Hz conforming to...
Trip unit name	TM-D
Trip unit technology	Thermal-magnetic
Trip unit rating	500 A at 40 °C
Protection type	Overload protection (thermal); Short-circuit protection (magnetic)
Uimp rated impulse withstand voltage	8 kV conforming to EN/IEC 60947-2
Network frequency	50/60 Hz
Breaking capacity code	N
Ics rated service breaking capacity	70 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2; 50 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
Neutral position	Left
Mechanical durability	15000 cycles
Electrical durability	4000 cycles 415 V In conforming to IEC 60947-2
Control type	Toggle
Thermal protection adjustment range	350…500 A
Neutral protection setting	No protection (3D)
Long time pick-up adjustment type Ir	Adjustable
Long time pick-up adjustment range	0.7...1 x In
Long time delay adjustment type	Fixed
