UNISON

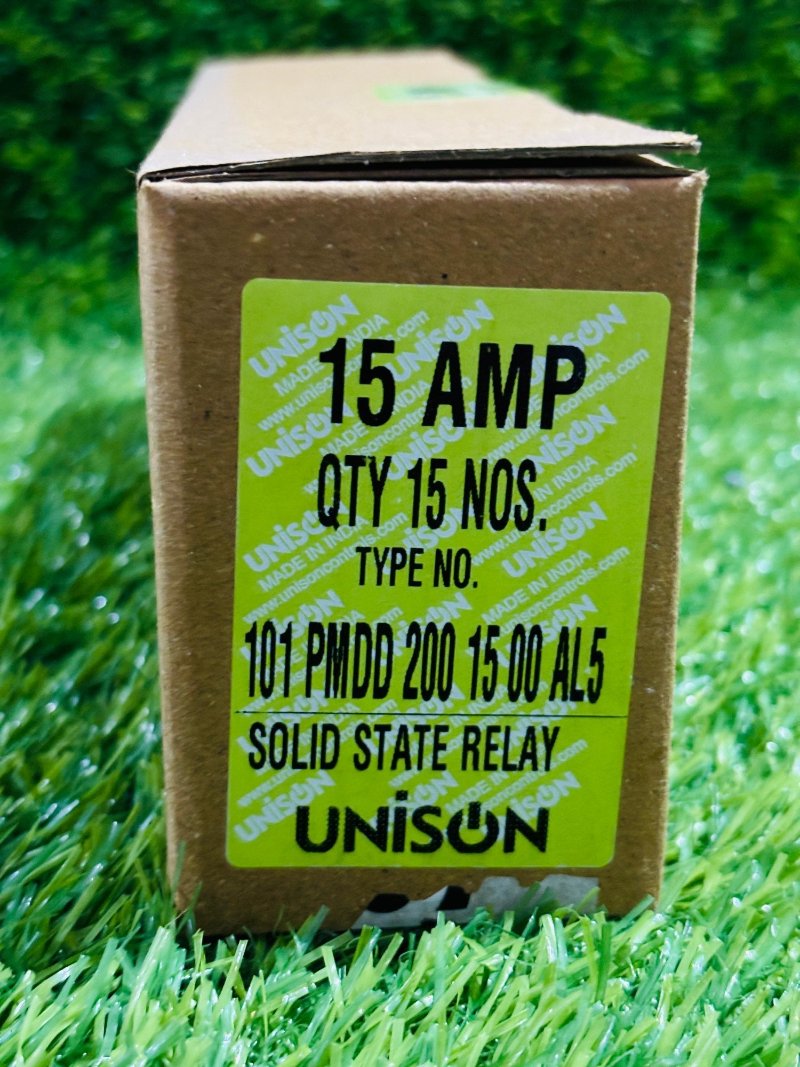

101 PMDD 200 15 00, Unison SSR Dc to Dc 15amp
Incl. all taxes • Shipping calculated at checkout.
🚚 Delivered within 5 to 7 Days
Couldn't load pickup availability
Description
Product Specification
| Model Name/Number | UNI 101 PMDD 200 15 00 AL5 |
| Current | 15 Amp |
| Type | Solid State Relay |
| Usage/Application | Industrial |
| Brand | Unison |
| Parts | SSR |
| Voltage Type | DC |
| Power | 4-32 V DC TO 5-200 V DC |
| Phase | Single Phase |
| I Deal In | New Only |
| Country of Origin | Made in India |
| Minimum Order Quantity | 1 |
Product Description
- DC Output Switching SSR - POWER MOSFET
- Input : 4-32VDC/4-20mA
- Input Green LED Indication
- Output : 5-200VDC, 15Amp
- Body insulation : 2.5kV for 1min
- I/P. to O/P. insulation : 2.5kV for 1min
- ON State Voltage Drop : ≤1Vdc
- Turn ON time : 1.7 mS
- Turn OFF time : 50 μS
- No Leakage Current at output side
Product Description
The Unison 101 PMDD 200 15 00 is a 15 Amp DC to DC Solid State Relay (SSR) designed for fast, reliable, and maintenance-free switching of DC loads in industrial automation and electronic control systems. Unlike conventional electromechanical relays, this SSR uses Power MOSFET technology, enabling high-speed switching without moving contacts. This results in silent operation, extended service life, and excellent resistance to vibration and mechanical wear, making it ideal for demanding industrial environments.
The relay accepts a 4–32 VDC (or 4–20 mA) control input and switches 5–200 VDC loads up to 15 Amps. It is fully compatible with PLCs, industrial controllers, microcontrollers, and DC automation systems. The SSR features optical isolation between the input and output circuits, providing improved electrical safety and protecting sensitive control equipment from load-side disturbances. With no output leakage current, it is particularly suitable for applications requiring precise DC switching.
The 101 PMDD 200 15 00 is widely used for controlling DC motors, solenoid valves, battery-powered equipment, DC pumps, LED lighting systems, and renewable energy applications. Its compact panel-mount design allows easy integration into electrical control panels, while the built-in green LED status indicator provides quick visual confirmation of the relay's operating status.
For continuous operation at the rated load current, a suitable heat sink is recommended to ensure efficient heat dissipation and maximize the relay's operating life.
Key Features
- Model: 101 PMDD 200 15 00
- Brand: Unison
- DC to DC Solid State Relay
- Rated Load Current: 15 Amp
- Power MOSFET output
- Control Input: 4–32 VDC / 4–20 mA
- Output Voltage: 5–200 VDC
- No moving contacts
- Silent, maintenance-free operation
- No output leakage current
- Optically isolated input and output
- Green LED input indication
- Fast switching speed

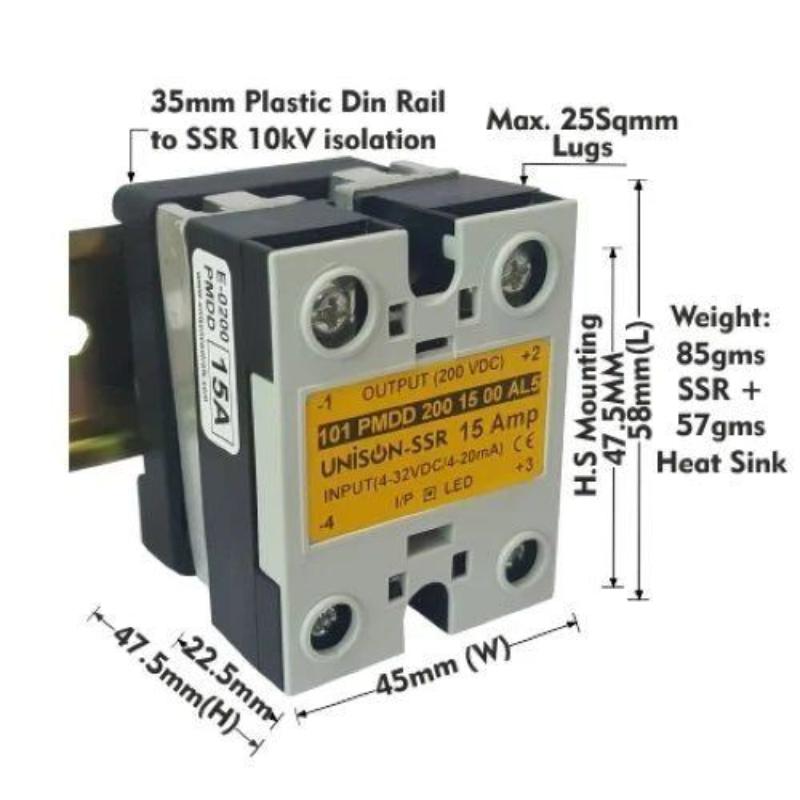

- Panel-mount design
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 101 PMDD 200 15 00 |
| Brand | Unison |
| Relay Type | DC to DC SSR |
| Rated Current | 15 Amp |
| Control Input | 4–32 VDC / 4–20 mA |
| Output Voltage | 5–200 VDC |
| Output Device | Power MOSFET |
| ON State Voltage Drop | ≤1 VDC |
| Turn ON Time | 1.7 ms |
| Turn OFF Time | 50 µs |
| Body Insulation | 2.5 kV |
| Input to Output Isolation | 2.5 kV |
| Output Leakage Current | Nil |
| Mounting | Panel Mount |
For continuous operation at full load, use an appropriately rated heat sink.
Applications
The Unison 101 PMDD 200 15 00 is ideal for:
- DC motor switching
- Solenoid valve control
- Battery charging and battery management systems
- DC pump control
- LED lighting control
- Renewable energy and solar power systems
- Industrial automation panels
- PLC-controlled DC loads
- Test benches and laboratory equipment
- Electronic manufacturing machinery
Why Buy from Voltkart?
- Genuine Unison Solid State Relays
- GST Invoice provided
- Pan India delivery
- Bulk pricing available for OEMs, machine builders, and panel manufacturers
- Expert technical support for product selection
- Trusted supplier of industrial automation products
Frequently Asked Questions
1. What type of loads can this SSR switch?
The 101 PMDD 200 15 00 is designed to switch DC loads from 5–200 VDC up to 15 Amps, making it suitable for DC motors, solenoid valves, pumps, battery systems, and other DC-powered equipment.
2. What control input is required?
The relay operates with a 4–32 VDC or 4–20 mA control input, allowing direct connection to PLCs, industrial controllers, and automation systems.
3. Does this relay require a heat sink?
Yes. For continuous operation at the rated 15 Amp load, a suitable heat sink is recommended to ensure proper heat dissipation and long-term reliability.
