G-68 SSR Heat Sink, up to 26A, DIN Rail Mount
Regular price
Rs. 180.00
Regular price
Sale price
Rs. 180.00
Incl. all taxes • Shipping calculated at checkout.
Minimum order value is Rs 1,001. Add other items to reach it.
Price excl. GST
Rs. 152.54
GST @ 18% included in above product price
GST Invoice
PAN India Delivery
Fast Dispatch
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Works well with
Mean Well LRS-350-24 SMPS - 24V 14.6A - 350.4W Metal Power Supply
Rs. 2,270
Selec PID500-T-2-0-00, 48*48 PID, Current(4-20ma) output
Rs. 2,630
Description

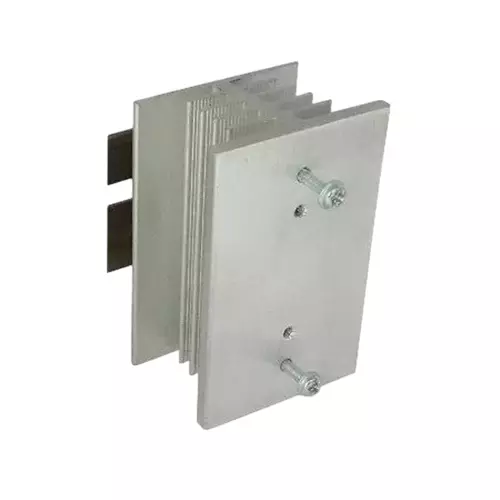

G-68 is a compact aluminium heat sink for panel/DIN-rail mounted single-phase solid state relays (SSRs) -- not tied to any one SSR brand, this is the same physical size/rating sold non-branded.
Dimensions
44 x 68 x 32mm (W x L x H)
Current rating
Up to 26A @ 40°C
Thermal resistance
2.5°C/W
Mounting
35mm DIN rail
Technical specifications
| Model | G-68 |
| Material | Aluminium |
| Dimensions (W x L x H) | 44 x 68 x 32mm |
| Weight | ~95g |
| Current rating | Up to 26A @ 40°C |
| Thermal resistance (RθSA) | 2.5°C/W |
| Mounting | 35mm plastic DIN rail, 10kV isolation |
| Suitable for | Single-phase panel-mount SSRs of matching footprint, up to 26A load current |
Frequently asked questions
What current rating is this heat sink good for?
Up to 26A at 40°C ambient temperature.
How is it mounted?
On a 35mm DIN rail; the SSR then mounts flat onto the heat sink's face plate.
Do you provide a GST invoice?
Yes, every order from Voltkart comes with a GST invoice.
Not sure if this fits your SSR?
Send us your SSR's model and current rating and we'll confirm.
