Description

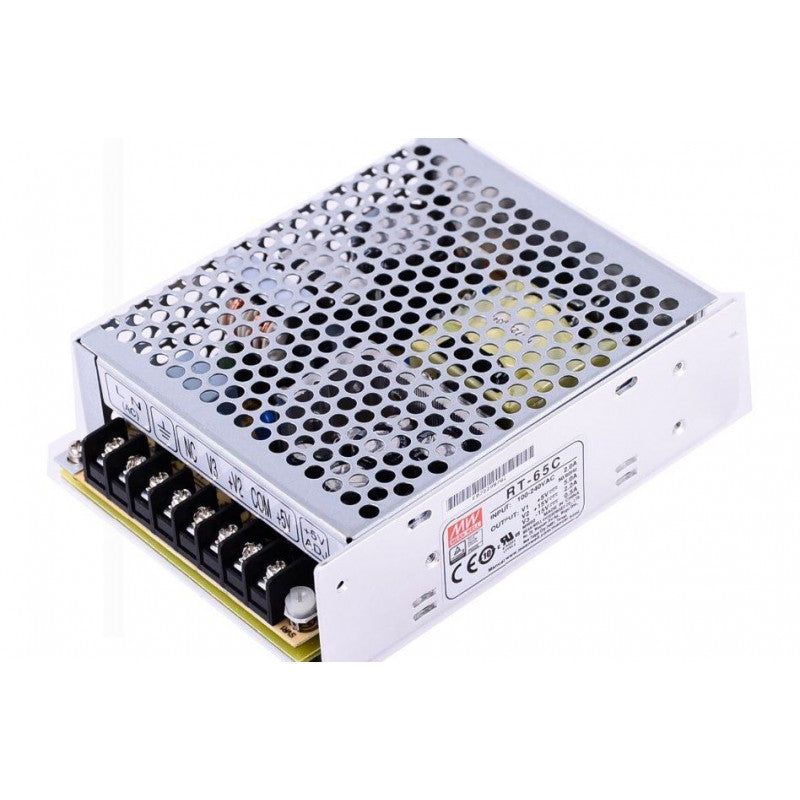

RT-65C, an enclosed power supply from Mean Well, rated 5 VDC at 5 A + 15 VDC at 2.2 A + - 15 VDC at 500 mA, 65 W output power.
Outputs
5 VDC at 5 A + 15 VDC at 2.2 A + - 15 VDC at 500 mA
Power
65 W
Input voltage
88 to 264V AC 125 to 373V DC (Withstand 300V AC surge for 5sec. Without damage)
Approvals
EN60950-1
Technical specifications
| Make | Mean Well |
| Model | RT-65C |
| Outputs | 5 VDC at 5 A + 15 VDC at 2.2 A + - 15 VDC at 500 mA |
| Input voltage | 88 to 264V AC 125 to 373V DC (Withstand 300V AC surge for 5sec. Without damage) |
| Product Category | Switching Power Supplies |
| Output Voltage-Channel 1 | 5 VDC |
| Output Voltage-Channel 2 | 15 VDC |
| Number of Outputs | 3 Output |
| Output Power | 65 W |
| Open Frame/Enclosed | Enclosed |
| Output Current-Channel 1 | 5 A |
| Output Current-Channel 2 | 2.2 A |
| Industry | Industrial |
| Mounting Style | Chassis |
| Length | 129 mm |
| Width | 98 mm |
| Height | 38 mm |
| Approvals | EN60950-1 |
| Output Current-Channel 3 | 500 mA |
| Output Voltage-Channel 3 | - 15 VDC |
| Subcategory | AC-DC Power Supply |
| Unit Weight | 440 g |
Frequently asked questions about the Mean Well RT-65C
What is the output of the Mean Well RT-65C?
The RT-65C is rated 5 VDC at 5 A + 15 VDC at 2.2 A + - 15 VDC at 500 mA output, 65 W.
What input voltage does the RT-65C accept?
The RT-65C accepts an input of 88 to 264V AC 125 to 373V DC (Withstand 300V AC surge for 5sec. Without damage), as listed on this page.
What certifications does the RT-65C have?
Mean Well lists: EN60950-1.
How is the RT-65C mounted?
Mounting style: Chassis.
Where can I download the RT-65C datasheet?
You can download it from the datasheet section on this page: RT-65C datasheet.
Is the RT-65C genuine, and do you provide a GST invoice?
Yes. Voltkart is an authorised dealer of Mean Well, so you receive genuine Mean Well products, and every order comes with a GST invoice.
Can I order the RT-65C in bulk for OEM or wholesale use?
Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.
