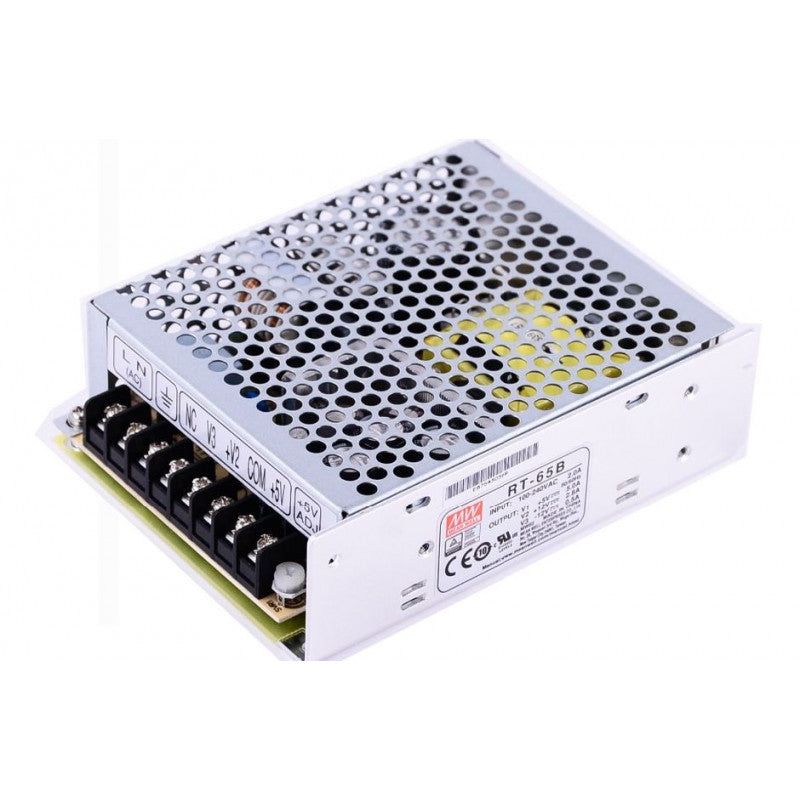

Mean Well RT-65B 65W Triple Output 5V 5A, 12V 2.8A, -12V 0.5A
Regular price
₹2,257
Regular price
₹4,000
Sale price
₹2,257
Incl. all taxes • Shipping calculated at checkout.
Price excl. GST
₹1,912.71
GST @ 18% included in above product price
Authorized Dealer
GST Invoice
PAN India Delivery
Fast Dispatch
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Works well with
Unison 901 ZDA 60 90 01 CU2, SSR Dc to Ac, 90amp (heat sink not included)
₹1,350
Delta DVP14SS211R PLC 8DI/6DO relay Outpput
₹7,550
EAPL B1DCA-X Cyclic Timer
₹1,425
Unison 901 ZDA 48 40 01 AL5, SSR Dc to Ac, 40amp
₹605
Description
RT-65B, an enclosed power supply from Mean Well, rated 5 VDC at 5 A + 12 VDC at 2.8 A + - 12 VDC at 500 mA, 65 W output power.
Outputs
5 VDC at 5 A + 12 VDC at 2.8 A + - 12 VDC at 500 mA
Power
65 W
Input voltage
88 to 264V AC 125 to 373V DC (Withstand 300V AC surge for 5sec. Without damage)
Approvals
EN60950-1
Technical specifications
| Make | Mean Well |
| Model | RT-65B |
| Outputs | 5 VDC at 5 A + 12 VDC at 2.8 A + - 12 VDC at 500 mA |
| Input voltage | 88 to 264V AC 125 to 373V DC (Withstand 300V AC surge for 5sec. Without damage) |
| Product Category | Switching Power Supplies |
| Output Voltage-Channel 1 | 5 VDC |
| Output Voltage-Channel 2 | 12 VDC |
| Number of Outputs | 3 Output |
| Output Power | 65 W |
| Open Frame/Enclosed | Enclosed |
| Output Current-Channel 1 | 5 A |
| Output Current-Channel 2 | 2.8 A |
| Industry | Industrial |
| Mounting Style | Chassis |
| Length | 129 mm |
| Width | 98 mm |
| Height | 38 mm |
| Approvals | EN60950-1 |
| Output Current-Channel 3 | 500 mA |
| Output Voltage-Channel 3 | - 12 VDC |
| Subcategory | AC-DC Power Supply |
| Unit Weight | 440 g |
Frequently asked questions about the Mean Well RT-65B
What is the output of the Mean Well RT-65B?
The RT-65B is rated 5 VDC at 5 A + 12 VDC at 2.8 A + - 12 VDC at 500 mA output, 65 W.
What input voltage does the RT-65B accept?
The RT-65B accepts an input of 88 to 264V AC 125 to 373V DC (Withstand 300V AC surge for 5sec. Without damage), as listed on this page.
What certifications does the RT-65B have?
Mean Well lists: EN60950-1.
How is the RT-65B mounted?
Mounting style: Chassis.
Where can I download the RT-65B datasheet?
You can download it from the datasheet section on this page: RT-65B datasheet.
Is the RT-65B genuine, and do you provide a GST invoice?
Yes. Voltkart is an authorised dealer of Mean Well, so you receive genuine Mean Well products, and every order comes with a GST invoice.
Can I order the RT-65B in bulk for OEM or wholesale use?
Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.
Compare and explore more Mean Well products
- RT-65C - 5 VDC at 5 A + 15 VDC at 2.2 A + - 15 VDC at 500 mA
- RT-65D - 5 VDC at 4 A + 24 VDC at 1.5 A + 12 VDC at 1 A
