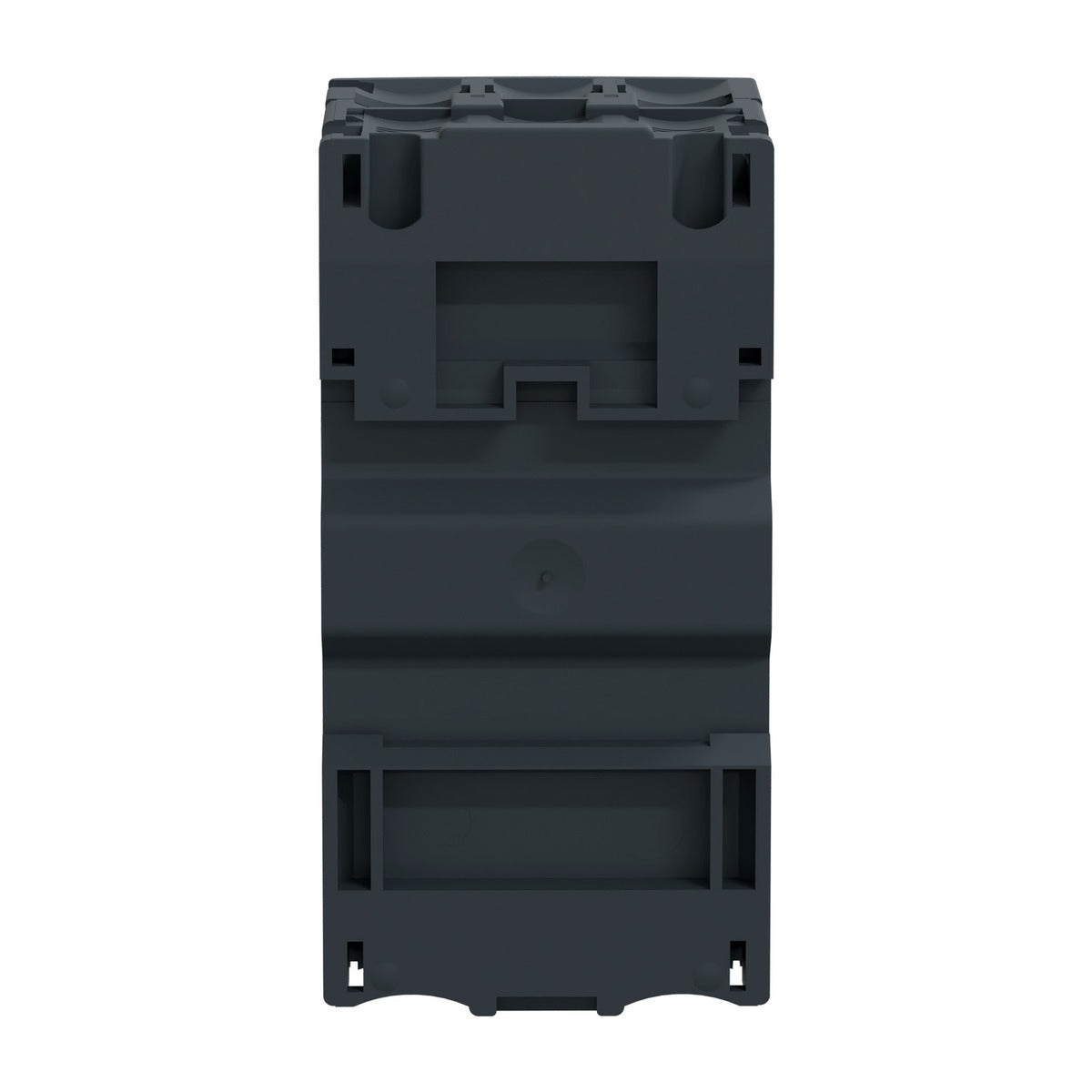

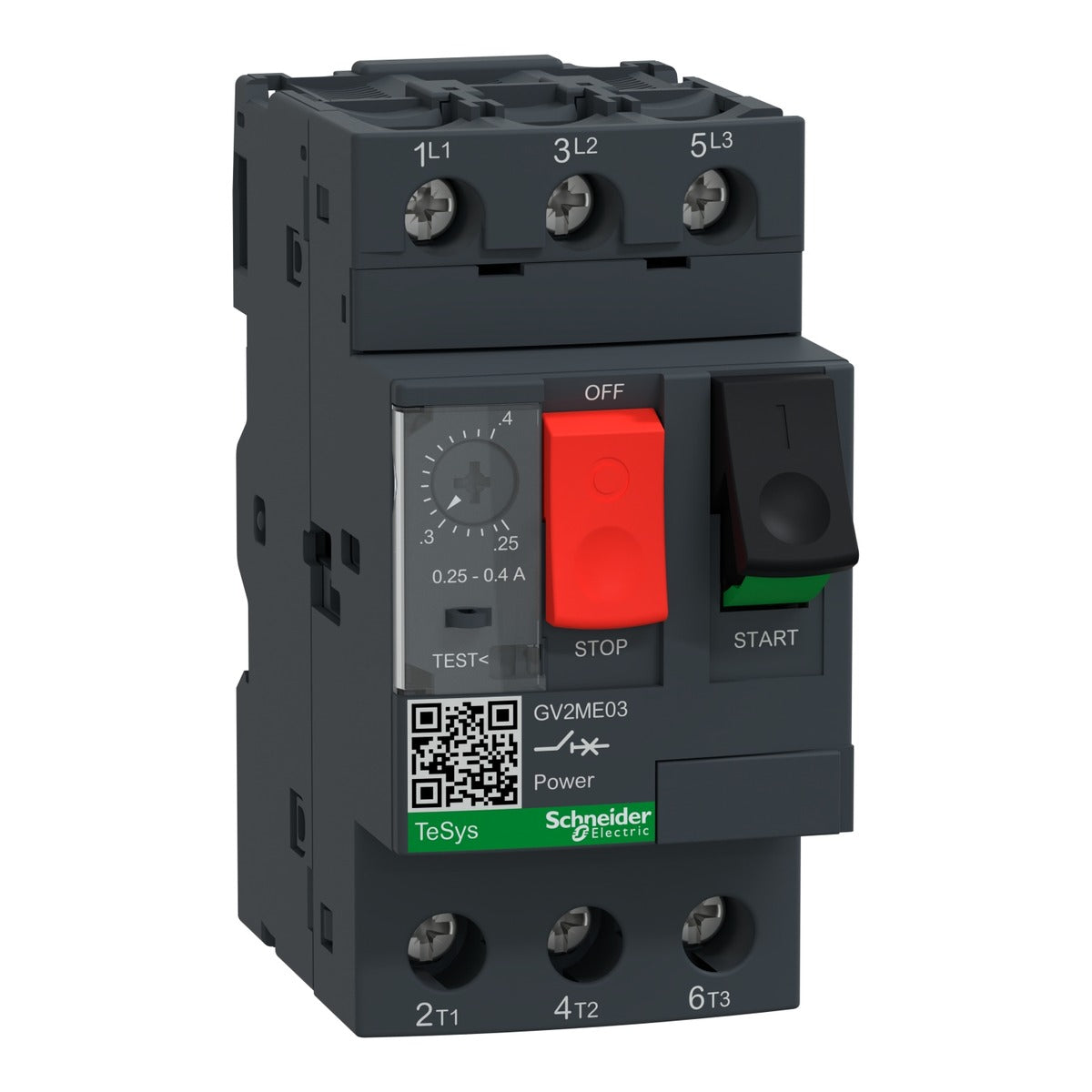

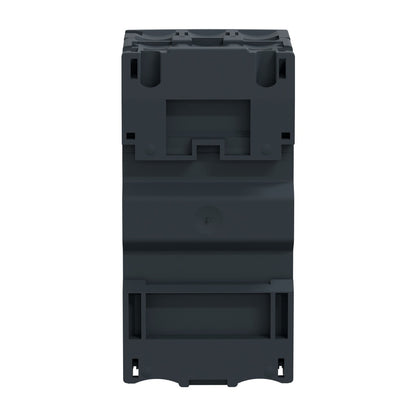

Schneider MPCB GV2ME03 Range 0.25-0.4A

Rs. 4,289.00

~~Rs. 9,770.00~~ Rs. 4,289.00

56% off

Incl. all taxes • Shipping calculated at checkout.

Price excl. GST Rs. 3,634.75

GST @ 18% included in above product price

Quantity

GST Invoice PAN India Delivery Fast Dispatch

Need bulk pricing? Get exclusive rates for large orders

Chat on WhatsApp Request a formal quote

🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere

Check delivery date

Works well with

Schneider LC1D09, 9Amp Contactor Rs. 1,421

Schneider LC1E1810, 18Amp Contactor, coil voltage 220vac Rs. 1,400

Schneider LC1D40, 40Amp Contactor Rs. 6,830

Schneider Lc1e series 1no 1nc top mounted block Laen11 Rs. 450

Description

GV2ME03 is a Schneider Electric TeSys GV2 motor protection circuit breaker (MPCB). Schneider lists it as: Motor circuit breaker, TeSys GV2, 3P, 0.25-0.4 A, thermal magnetic, screw clamp terminals.

Thermal protection adjustment range

0.25…0.4 A conforming to IEC 60947-2

Breaking capacity

100 kA Icu

Poles description

3P

Trip unit technology

Thermal-magnetic

Technical specifications

Make	Schneider Electric
Model	GV2ME03
Product name	TeSys GV2
Product or component type	Motor circuit breaker
Device application	Motor protection
Trip unit technology	Thermal-magnetic
Poles description	3P
Network frequency	50/60 Hz conforming to IEC 60947-2
Motor power kW	0.12 kW at 400/415 V AC 50/60 Hz; 0.18 kW at 400/415 V AC 50/60 Hz
Breaking capacity	100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2; 100 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
Ics rated service short-circuit breaking capacity	100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2; 100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
Control type	Push-button
Thermal protection adjustment range	0.25…0.4 A conforming to IEC 60947-2
Ith conventional free air thermal current	0.4 A conforming to IEC 60947-2
Ue rated operational voltage	690 V AC 50/60 Hz conforming to IEC 60947-2
Ui rated insulation voltage	690 V AC 50/60 Hz conforming to IEC 60947-2
Uimp rated impulse withstand voltage	6 kV conforming to IEC 60947-2
Power dissipation per pole	2.5 W
Mechanical durability	100000 cycles
Electrical durability	100000 cycles for AC-3 at 415 V In; 100000 cycles for AC-3e at 415 V In
Standards	EN/IEC 60947-2; EN/IEC 60947-4-1; UL 60947-4-1; CSA C22.2 No 60947-4-1
Product certifications	CB Scheme; CE; UKCA; CCC
IP degree of protection	IP20 conforming to IEC 60529
Ambient air temperature for operation	-20…60 °C
