MPCB Price List: Schneider GV2ME Motor Protection Breakers
Schneider MPCB price on Voltkart: GV2ME motor protection circuit breakers from ₹4,289 to ₹10,074, covering motors from 0.25 A to 32 A full-load current, including GST.
A motor protection circuit breaker (MPCB) combines adjustable overload protection and short-circuit protection for a motor in one device, with a push-button on/off. We stock genuine Schneider GV2ME MPCBs with a GST invoice. Prices checked 17 November 2026. Reviewed by Amit, Voltkart.
Schneider GV2ME MPCB price list (incl. GST)
| Model | Setting range (motor FLC) | Price |
|---|---|---|
| Schneider GV2ME03 | 0.25–0.4 A | ₹4,289 |
| Schneider GV2ME04 | 0.4–0.63 A | ₹4,570 |
| Schneider GV2ME05 | 0.63–1 A | ₹4,570 |
| Schneider GV2ME06 | 1–1.6 A | ₹4,670 |
| Schneider GV2ME07 | 1.5–2.5 A | ₹4,670 |
| Schneider GV2ME08 | 2.5–4 A | ₹4,830 |
| Schneider GV2ME10 | 4–6.3 A | ₹4,830 |
| Schneider GV2ME14 | 6–10 A | ₹4,830 |
| Schneider GV2ME16 | 9–14 A | ₹5,410 |
| Schneider GV2ME20 | 13–18 A | ₹5,850 |
| Schneider GV2ME21 | 17–23 A | ₹6,220 |
| Schneider GV2ME22 | 20–25 A | ₹6,220 |
| Schneider GV2ME32 | 24–32 A | ₹10,074 |
Click a model to open the product. The product page always shows the live price and stock.
How to choose an MPCB
- Setting range: the motor's nameplate full-load current must fall within the range.
- Starter: add a contactor for remote or automatic control.
- Alternative: a contactor with a thermal overload relay and a separate MCB.
Related: MCBs · MCCBs · motor overload sizing guide.
Not sure which size? Enter your motor kW in the free motor starter & VFD calculator to get the matching overload relay, contactor, MPCB and VFD.
Which MPCB for my motor? (415 V, 3-phase)
Pick the GV2ME whose setting range contains the motor's full-load current, then set the dial to the nameplate current.
| Motor | Typical full-load current | MPCB (setting range) | Price |
|---|---|---|---|
| 0.37 kW (0.5 HP) | 1.1 A | GV2ME06 (1.0-1.6A) | ₹4,670 |
| 0.75 kW (1 HP) | 1.8 A | GV2ME07 (1.5-2.5A) | ₹4,670 |
| 1.5 kW (2 HP) | 3.5 A | GV2ME08 (2.5-4A) | ₹4,830 |
| 2.2 kW (3 HP) | 5 A | GV2ME10 (4-6.3A) | ₹4,830 |
| 3.7 kW (5 HP) | 7.5 A | GV2ME14 (6-10A) | ₹4,830 |
| 5.5 kW (7.5 HP) | 11 A | GV2ME16 (9-14A) | ₹5,410 |
| 7.5 kW (10 HP) | 15 A | GV2ME20 (13-18A) | ₹5,850 |
| 11 kW (15 HP) | 22 A | GV2ME22 (20-25A) | ₹6,220 |
| 15 kW (20 HP) | 29 A | GV2ME32 (24-32A) | ₹10,074 |
Typical currents for 4-pole IE2 motors; always use the current on your motor's nameplate. For a contactor and overload relay pair instead, see the motor starter chart.
Full-load currents for every motor size from 0.37 to 75 kW are in the motor full-load current chart.
Frequently asked questions
Which MPCB for a 1 HP motor, and what is the price?
A 1 HP (0.75 kW) three-phase motor draws about 1.8 A at 415 V, so use a Schneider GV2ME07 MPCB, which costs ₹4,670 on Voltkart including GST. Set its dial to the current on the motor nameplate.
Which MPCB for a 2 HP motor, and what is the price?
A 2 HP (1.5 kW) three-phase motor draws about 3.5 A at 415 V, so use a Schneider GV2ME08 MPCB, which costs ₹4,830 on Voltkart including GST. Set its dial to the current on the motor nameplate.
Which MPCB for a 3 HP motor, and what is the price?
A 3 HP (2.2 kW) three-phase motor draws about 5 A at 415 V, so use a Schneider GV2ME10 MPCB, which costs ₹4,830 on Voltkart including GST. Set its dial to the current on the motor nameplate.
Which MPCB for a 5 HP motor, and what is the price?
A 5 HP (3.7 kW) three-phase motor draws about 7.5 A at 415 V, so use a Schneider GV2ME14 MPCB, which costs ₹4,830 on Voltkart including GST. Set its dial to the current on the motor nameplate.
Which MPCB for a 7.5 HP motor, and what is the price?
A 7.5 HP (5.5 kW) three-phase motor draws about 11 A at 415 V, so use a Schneider GV2ME16 MPCB, which costs ₹5,410 on Voltkart including GST. Set its dial to the current on the motor nameplate.
Which MPCB for a 10 HP motor, and what is the price?
A 10 HP (7.5 kW) three-phase motor draws about 15 A at 415 V, so use a Schneider GV2ME20 MPCB, which costs ₹5,850 on Voltkart including GST. Set its dial to the current on the motor nameplate.
Which MPCB for a 15 HP motor, and what is the price?
A 15 HP (11 kW) three-phase motor draws about 22 A at 415 V, so use a Schneider GV2ME22 MPCB, which costs ₹6,220 on Voltkart including GST. Set its dial to the current on the motor nameplate.
Which MPCB for a 20 HP motor, and what is the price?
A 20 HP (15 kW) three-phase motor draws about 29 A at 415 V, so use a Schneider GV2ME32 MPCB, which costs ₹10,074 on Voltkart including GST. Set its dial to the current on the motor nameplate.
What is the price of a Schneider MPCB?
On Voltkart a Schneider GV2ME MPCB costs from ₹4,289 (0.25–0.4 A) to ₹10,074 (24–32 A), including GST.
How do I select an MPCB for a motor?
Choose the GV2ME whose setting range includes the full-load current on the motor nameplate, then set the dial to that current. For example, a motor with a 7.5 A FLC needs the GV2ME14 (6–10 A). The free motor starter calculator does this for you.
What is the difference between an MPCB and an MCB?
An MCB has a fixed trip rating and protects cables. An MPCB has an adjustable overload setting matched to the motor plus short-circuit protection, so it protects the motor itself, including against a lost phase.
Do I still need a contactor with an MPCB?
Yes, for remote or automatic start/stop. The MPCB protects the motor and the contactor switches it from push buttons, a timer or a PLC. For manual direct-on-line starting, the MPCB alone can start and stop the motor.
Not sure which model you need? Send the part number or your application on WhatsApp at 8800754881 (Mon–Sat, 12:30–7 pm) and we will help you choose. For bulk or OEM quantities, ask for a quote on the same number.
13 products
-
Schneider MPCB GV2ME22 Range 20-25A
No reviews56% offRegular price ₹6,220Regular price₹14,165Sale price ₹6,220In stock · Fast dispatch
-
Schneider MPCB GV2ME21 Range 17-23A
No reviews56% offRegular price ₹6,220Regular price₹14,165Sale price ₹6,220In stock · Fast dispatch
Need bulk quantities or project pricing? Get exclusive rates on large orders.
WhatsApp Us-
Schneider MPCB GV2ME32 Range 24-32A
No reviews56% offRegular price ₹10,074Regular price₹22,950Sale price ₹10,074In stock · Fast dispatch
Need bulk quantities or project pricing? Get exclusive rates on large orders.
WhatsApp Us-
Schneider MPCB GV2ME05 Range 0.63-1A
No reviews56% offRegular price ₹4,570Regular price₹10,410Sale price ₹4,570In stock · Fast dispatch
Need bulk quantities or project pricing? Get exclusive rates on large orders.
WhatsApp Us-

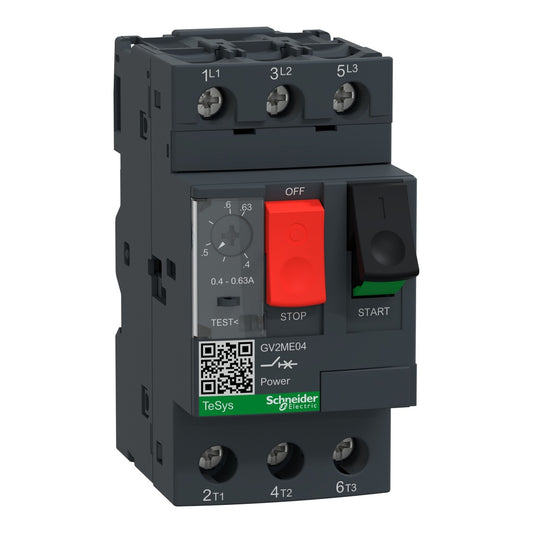

Schneider MPCB GV2ME04 Range 0.4-0.63A
No reviews56% offRegular price ₹4,570Regular price₹10,410Sale price ₹4,570In stock · Fast dispatch
-
Schneider MPCB GV2ME03 Range 0.25-0.4A
No reviews56% offRegular price ₹4,289Regular price₹9,770Sale price ₹4,289In stock · Fast dispatch
-
Schneider MPCB GV2ME20 Range 13-18A
No reviews56% offRegular price ₹5,850Regular price₹13,270Sale price ₹5,850In stock · Fast dispatch
-
Schneider MPCB GV2ME16 Range 9-14A
No reviews56% offRegular price ₹5,410Regular price₹12,320Sale price ₹5,410In stock · Fast dispatch
-
Schneider MPCB GV2ME14 Range 6-10A
No reviews56% offRegular price ₹4,830Regular price₹11,000Sale price ₹4,830In stock · Fast dispatch
-
Schneider MPCB GV2ME10 Range 4-6.3A
No reviews56% offRegular price ₹4,830Regular price₹11,000Sale price ₹4,830In stock · Fast dispatch
-
Schneider MPCB GV2ME08 Range 2.5-4A
No reviews56% offRegular price ₹4,830Regular price₹11,000Sale price ₹4,830In stock · Fast dispatch
-
Schneider MPCB GV2ME07 Range 1.5-2.5A
No reviews56% offRegular price ₹4,670Regular price₹10,630Sale price ₹4,670In stock · Fast dispatch
-
Schneider MPCB GV2ME06 Range 1.0-1.6A
No reviews56% offRegular price ₹4,670Regular price₹10,630Sale price ₹4,670In stock · Fast dispatch
