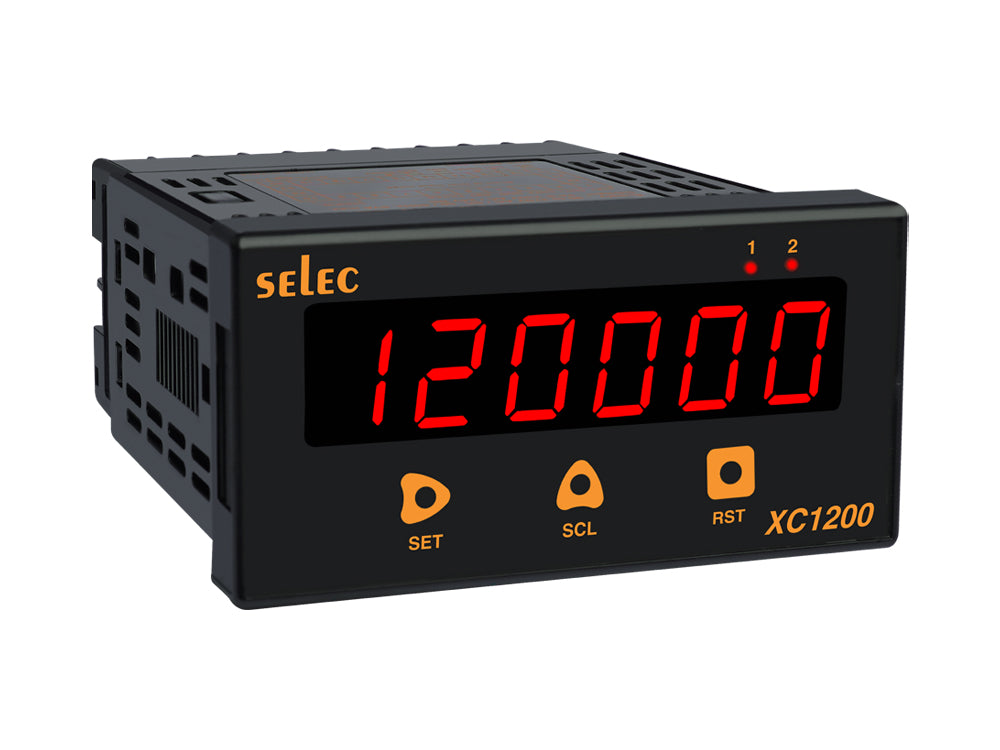

SELEC XC1200 , Digital preset Counter 48*96
SELEC XC1200 , Digital preset Counter 48*96
Regular price
Rs. 3,771.00
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
6 Digit LED display programmable counter with rate indicator, multi directional counting, 2 C/O SPDT relay output, 48 x 96mm, 90 to 270V AC/DC supply
BRIEF SPECIFICATIONS
| Display Type | LED |
| Display Configuration | 6 Digits Counter, 5 Digits RPM Indicator |
| Relay Contact | 2 C/O DPDT |
| Range | Total: Least Count: 0.0001 , 0.001, 0.01, 0.1 Rate: 4 to 99999 |
| Operating Modes | On Delay, Interval , Auto reset, Time pulse repeat |
| Reset | Front (user selectable), Remote |
| Counting Direction | Up, Down, Bi-directional, Quadrature |
| Features | Memory Retention, 2 Set Points, Programmable Input Scaling |
| Sensor type | NPN, PNP, potential free contacts, encoder |
| Input Speed | a) 0 to 30Hz b) 0 to 2.5kHz c) 0 to 5kHz |
| Supply Voltage | 90 to 270V AC / DC |
| Size | 48 x 96mm |
| Mounting Type | Panel mount |
| Certification | CE |
