Autonics

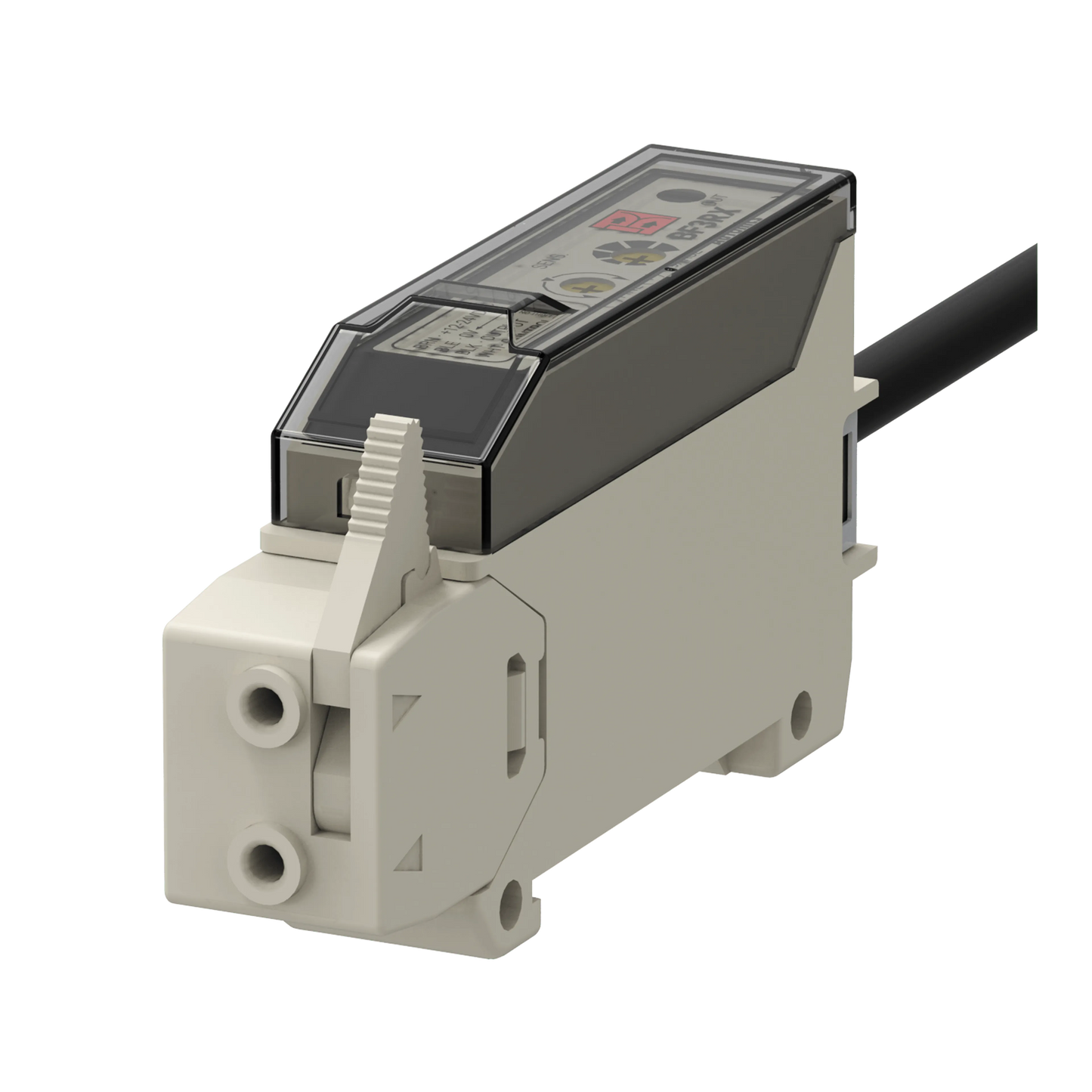

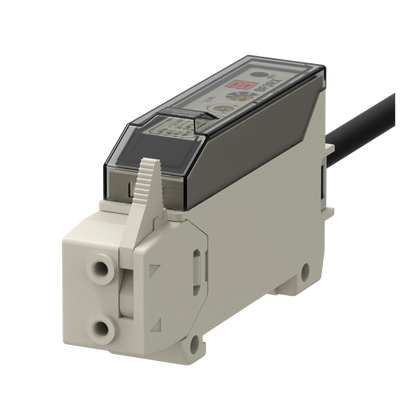

Autonics Fiber optic amplifier unit BF3RX-P PNP NO
Regular price
Rs. 2,510.00
Regular price
Rs. 3,500.00
Sale price
Rs. 2,510.00
28% OFF
Excl. GST: Rs. 2,127.12
28% OFF
Taxes included.
Shipping calculated at checkout.
🚚 Delivered within 5 to 7 Days
- Type : Built-in twin volume type
- Light source : Red LED(660nm)
- Response time : Max. 1ms
- Power supply : 12-24VDC ±10%(ripple P-P: max. 10%)
- Operation mode : Light ON/Dark ON(set by control wire)
- Control output : PNP open collector
- Type : Built-in twin volume type
- Light source : Red LED(660nm)
- Response time : Max. 1ms
- Power supply : 12-24VDC ±10%(ripple P-P: max. 10%)
- Operation mode : Light ON/Dark ON(set by control wire)
- Control output : PNP open collector
| Type |
Built-in twin volume type |
| Light source |
Red LED(660nm) |
| Response time |
Max. 1ms |
| Power supply |
12-24VDC ±10%(ripple P-P: max. 10%) |
| Current consumption |
Max. 40mA |
| Operation mode |
Light ON/Dark ON(set by control wire) |
| Control output |
PNP open collector |
| Sensitivity adjustment |
Sensitivity adjuster(coarse adjustment, fine adjustment) |
| Environment_Ambient illumination |
Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature |
-10 to 50℃, storage: -25 to 70℃ |
| Environment_Ambient humidity |
35 to 85% RH, storage: 35 to 85% RH |
| Material |
Case: Acrylonitrile butadiene styrene, Cover: Polycarbonate |
| Cable specification |
Ø5mm, 4-wire, 2m
(AWG24, core diameter: 0.08mm, number of cores: 40, insulator out diameter: Ø1mm) |
| Accessories |
Sensitivity adjuster driver, Mounting bracket, Bolts, Nuts |
| Weight |
Approx. 90g |
