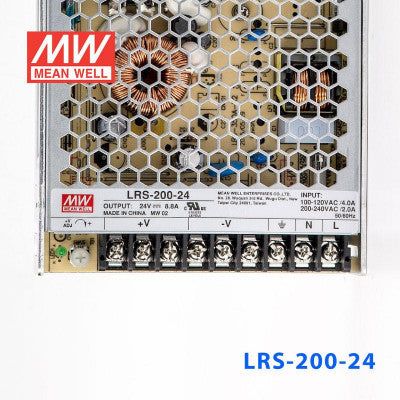

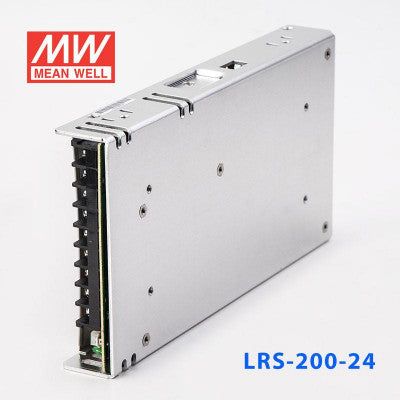

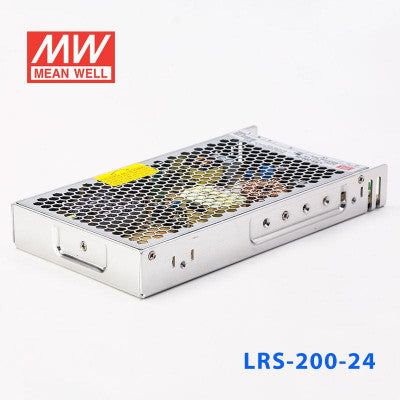

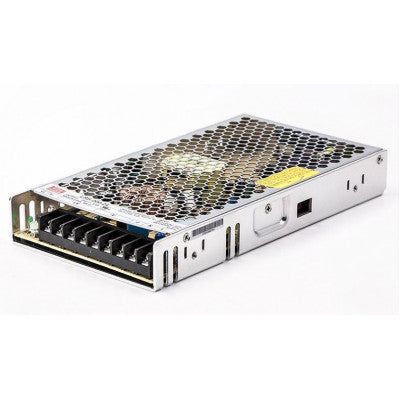

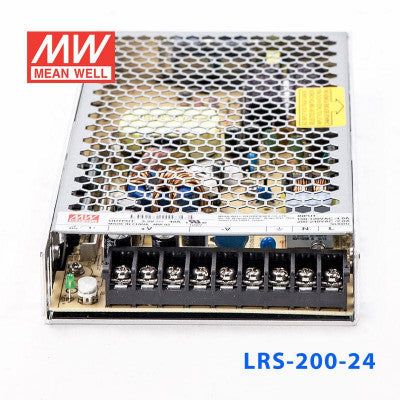

Mean Well LRS-200-24 SMPS - 24V 8.8A - 211.2W Metal Power Supply
Regular price
Rs. 1,922.00
Regular price
Rs. 3,100.00
Sale price
Rs. 1,922.00
Incl. all taxes • Shipping calculated at checkout.
Price excl. GST
Rs. 1,628.81
GST @ 18% included in above product price
Authorized Dealer
GST Invoice
PAN India Delivery
Fast Dispatch
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Works well with
Unison 901 ZDA 60 90 01 CU2, SSR Dc to Ac, 90amp (heat sink not included)
Rs. 1,350
Delta DVP14SS211R PLC 8DI/6DO relay Outpput
Rs. 7,550
EAPL B1DCA-X Cyclic Timer
Rs. 1,425
Unison 901 ZDA 48 40 01 AL5, SSR Dc to Ac, 40amp
Rs. 605
Description
LRS-200-24, an enclosed power supply from Mean Well, rated 24 VDC output at 8.8 AMP, 211.2W output power.
Output voltage
24 VDC
Output current
8.8 AMP
Power
211.2W
Input voltage
90 to 132V AC / 180 to 264V AC by switch 240 to 370V DC (switch on 230V AC)
Technical specifications
| Make | Mean Well |
| Model | LRS-200-24 |
| Output voltage | 24 VDC |
| Output current | 8.8 AMP |
| Input voltage | 90 to 132V AC / 180 to 264V AC by switch 240 to 370V DC (switch on 230V AC) |
| Type | Enclosed Type |
| Features | Standard |
| Series | LRS(Reliable) |
| Mechanical Form | Enclosed |
| IP Level | Non-Waterproof |
Frequently asked questions about the Mean Well LRS-200-24
What is the output of the Mean Well LRS-200-24?
The LRS-200-24 is rated 24 VDC output, output current 8.8 AMP, 211.2W.
What input voltage does the LRS-200-24 accept?
The LRS-200-24 accepts an input of 90 to 132V AC / 180 to 264V AC by switch 240 to 370V DC (switch on 230V AC), as listed on this page.
What is the IP rating of the LRS-200-24?
The LRS-200-24 is listed as Non-Waterproof.
Where can I download the LRS-200-24 datasheet?
You can download it from the datasheet section on this page: LRS-200-24 datasheet.
Is the LRS-200-24 genuine, and do you provide a GST invoice?
Yes. Voltkart is an authorised dealer of Mean Well, so you receive genuine Mean Well products, and every order comes with a GST invoice.
Can I order the LRS-200-24 in bulk for OEM or wholesale use?
Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.
Compare and explore more Mean Well products
- LRS-200-12 - 12 VDC at 17 AMP
- LRS-200-5 - 5 VDC at 40 AMP
- LRS-200-48 - 48 VDC at 4.4 AMP
Need help choosing the right model?
Voltkart is an authorised dealer of Mean Well. Share your load details and we will help you pick the correct power supply.
