Description

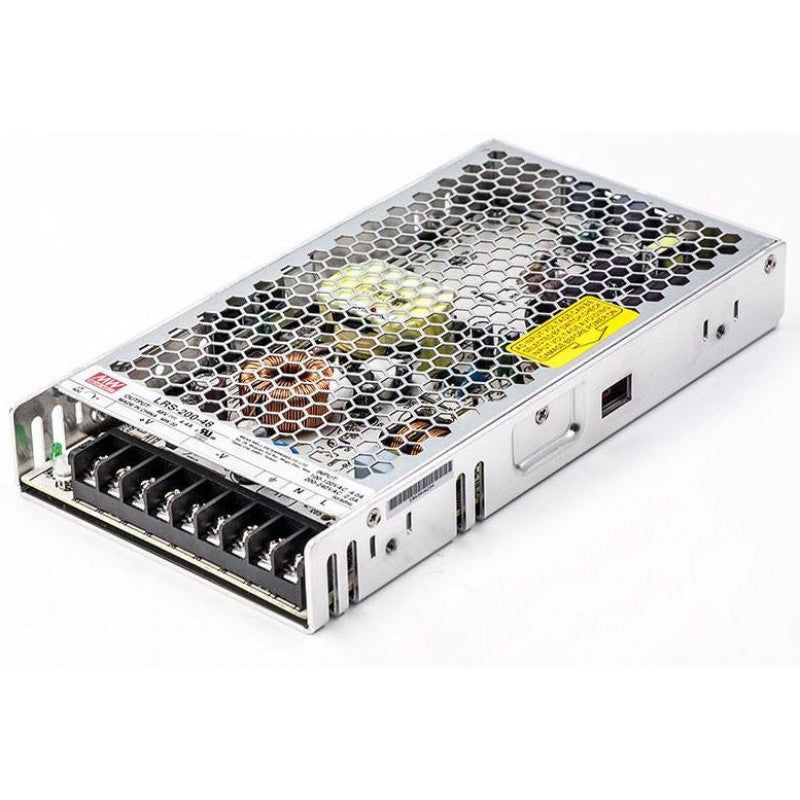

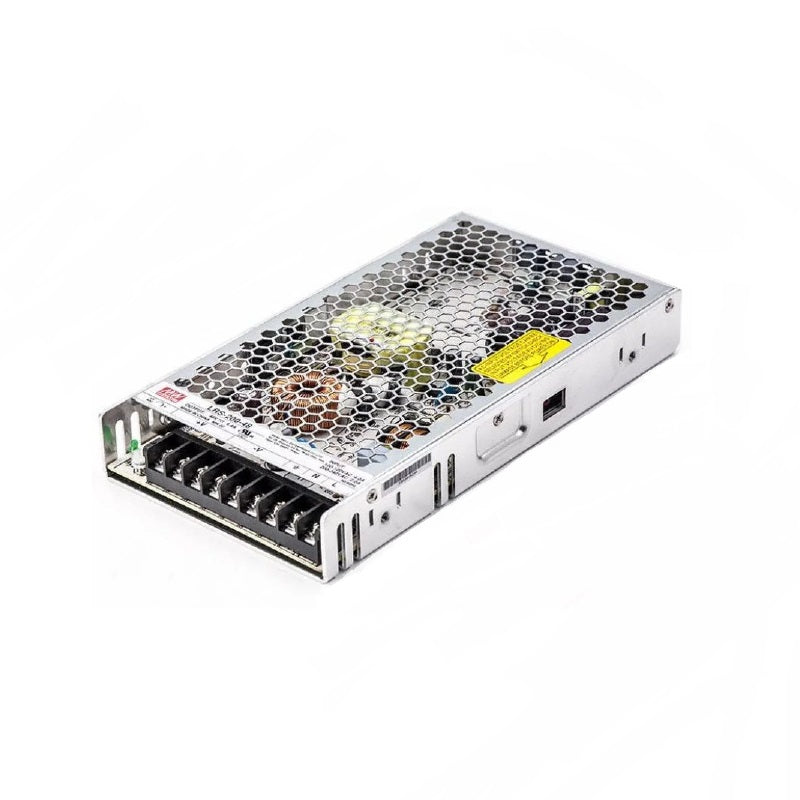

LRS-200-48, an enclosed power supply from Mean Well, rated 48 VDC output at 4.4 AMP, 211.2W output power.
Output voltage
48 VDC
Output current
4.4 AMP
Power
211.2W
Input voltage
90 to 132V AC / 180 to 264V AC by switch 240 to 370V DC (switch on 230V AC)
Technical specifications
| Make | Mean Well |
| Model | LRS-200-48 |
| Output voltage | 48 VDC |
| Output current | 4.4 AMP |
| Input voltage | 90 to 132V AC / 180 to 264V AC by switch 240 to 370V DC (switch on 230V AC) |
| Product Category | Switching Power Supplies |
| Output Voltage-Channel 1 | 48 VDC |
| Number of Outputs | 1 Output |
| Open Frame/Enclosed | Enclosed |
| Output Current-Channel 1 | 4.4 A |
| Industry | Industrial |
| Mounting Style | Chassis |
| Length | 215 mm |
| Width | 115 mm |
| Height | 30 mm |
| Approvals | UL60950-1 |
| Input Frequency | 47 Hz to 63 Hz |
| Isolation Voltage | 3 kV |
| Load Regulation | Regulated |
| Subcategory | AC-DC Power Supply |
| Unit Weight | 660 g |
Notable features
- LRS-200-48 Datasheet
Frequently asked questions about the Mean Well LRS-200-48
What is the output of the Mean Well LRS-200-48?
The LRS-200-48 is rated 48 VDC output, output current 4.4 AMP, 211.2W.
What input voltage does the LRS-200-48 accept?
The LRS-200-48 accepts an input of 90 to 132V AC / 180 to 264V AC by switch 240 to 370V DC (switch on 230V AC), as listed on this page.
What certifications does the LRS-200-48 have?
Mean Well lists: UL60950-1.
How is the LRS-200-48 mounted?
Mounting style: Chassis.
Where can I download the LRS-200-48 datasheet?
You can download it from the datasheet section on this page: LRS-200-48 datasheet.
Is the LRS-200-48 genuine, and do you provide a GST invoice?
Yes. Voltkart is an authorised dealer of Mean Well, so you receive genuine Mean Well products, and every order comes with a GST invoice.
Can I order the LRS-200-48 in bulk for OEM or wholesale use?
Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.
