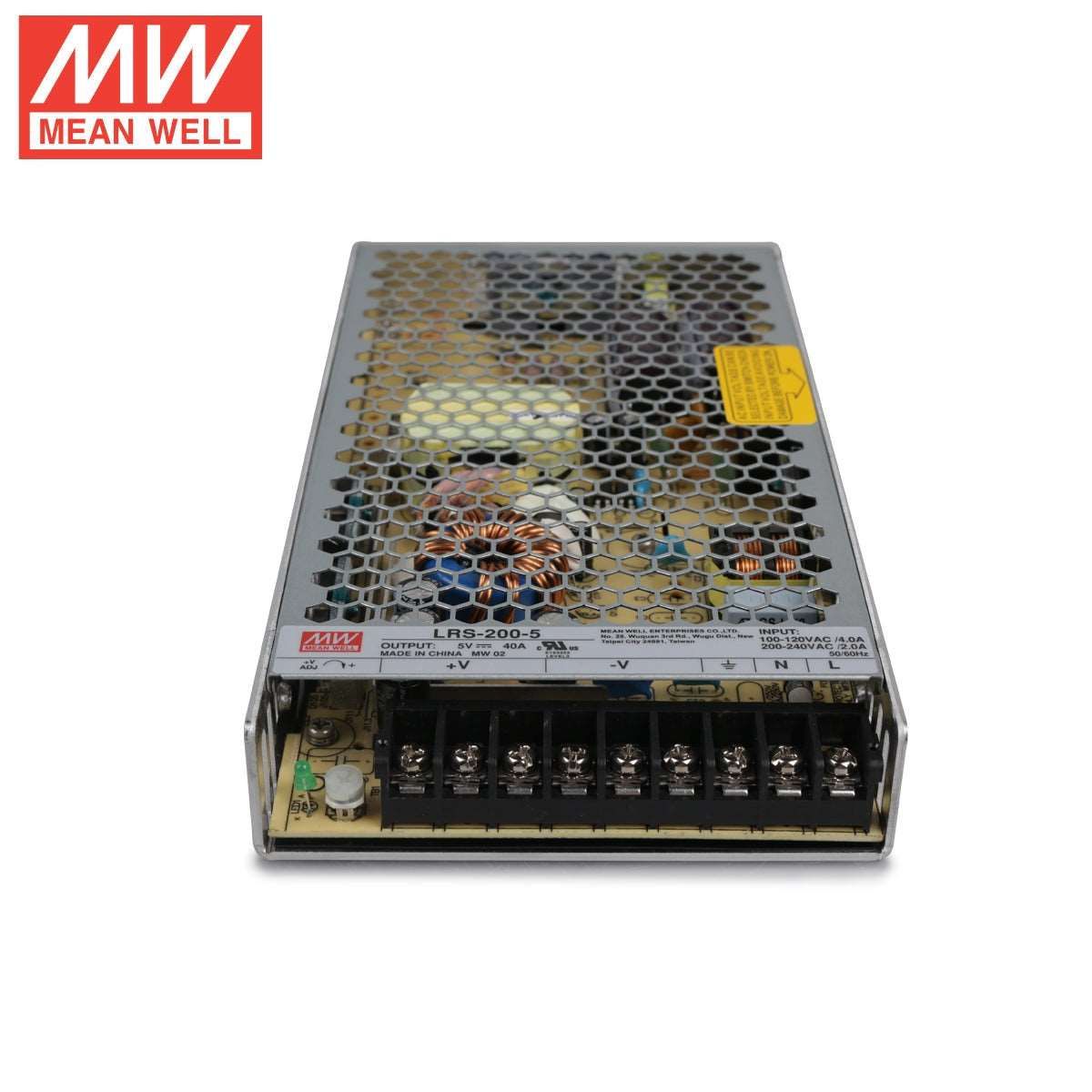

Mean Well LRS-200-5 5V 40A 200W Enclosed SMPS Power Supply
Regular price
₹2,560
Regular price
₹4,400
Sale price
₹2,560
Incl. all taxes • Shipping calculated at checkout.
Price excl. GST
₹2,169.49
GST @ 18% included in above product price
Authorized Dealer
GST Invoice
PAN India Delivery
Fast Dispatch
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Works well with
Mean Well RD-125B AC-DC Power Supply | Multi-Voltage Output 5V-4.6AMP & 24V-4.6AMP
₹3,186
Mean Well RD-125A 125W Dual Output 5V 7.7A, 12V 7.7A
₹3,186
Mean Well LRS-100-5 SMPS - 5V 18A - 90W Metal Power Supply
₹1,706
Unison 101 ZDA 48 25 01, SSR Dc to Ac, 25amp
₹302
Unison 901 ZDA 48 25 01 AL5, SSR Dc to Ac, 25amp
₹450
Selec UNIX-1-230V, PLC
₹4,490
Description
LRS-200-5, an enclosed power supply from Mean Well, rated 5 VDC output at 40 AMP, 200W output power.
Output voltage
5 VDC
Output current
40 AMP
Power
200W
Input voltage
90 to 132V AC / 180 to 264V AC by switch 240 to 370V DC (switch on 230V AC)
Technical specifications
| Make | Mean Well |
| Model | LRS-200-5 |
| Output voltage | 5 VDC |
| Output current | 40 AMP |
| Input voltage | 90 to 132V AC / 180 to 264V AC by switch 240 to 370V DC (switch on 230V AC) |
| Product Category | Switching Power Supplies |
| Output Voltage-Channel 1 | 5 VDC |
| Number of Outputs | 1 Output |
| Open Frame/Enclosed | Enclosed |
| Output Current-Channel 1 | 40 A |
| Industry | Industrial |
| Mounting Style | Chassis |
| Length | 215 mm |
| Width | 115 mm |
| Height | 30 mm |
| Approvals | UL60950-1 |
| Input Frequency | 47 Hz to 63 Hz |
| Isolation Voltage | 3 kV |
| Load Regulation | Regulated |
| Subcategory | AC-DC Power Supply |
| Unit Weight | 660 g |
Notable features
- LRS-200-5 Datasheet
Frequently asked questions about the Mean Well LRS-200-5
What is the output of the Mean Well LRS-200-5?
The LRS-200-5 is rated 5 VDC output, output current 40 AMP, 200W.
What input voltage does the LRS-200-5 accept?
The LRS-200-5 accepts an input of 90 to 132V AC / 180 to 264V AC by switch 240 to 370V DC (switch on 230V AC), as listed on this page.
What certifications does the LRS-200-5 have?
Mean Well lists: UL60950-1.
How is the LRS-200-5 mounted?
Mounting style: Chassis.
Where can I download the LRS-200-5 datasheet?
You can download it from the datasheet section on this page: LRS-200-5 datasheet.
Is the LRS-200-5 genuine, and do you provide a GST invoice?
Yes. Voltkart is an authorised dealer of Mean Well, so you receive genuine Mean Well products, and every order comes with a GST invoice.
Can I order the LRS-200-5 in bulk for OEM or wholesale use?
Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.
Compare and explore more Mean Well products
- LRS-200-24 - 24 VDC at 8.8 AMP
- LRS-200-12 - 12 VDC at 17 AMP
- LRS-200-48 - 48 VDC at 4.4 AMP
Need help choosing the right model?
Voltkart is an authorised dealer of Mean Well. Share your load details and we will help you pick the correct power supply.
