Mean Well
-
Mean Well RD-125A 125W Dual Output 5V 7.7A, 12V 7.7A
Regular price
₹3,186
Regular price
Sale price
₹3,186
Incl. all taxes • Shipping calculated at checkout.
Price excl. GST
₹2,700.00
GST @ 18% included in above product price
Authorised Distributor
GST Invoice
PAN India Delivery
Fast Dispatch
1-year manufacturer warranty · Burnt or wiring damage not covered · Warranty terms
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Works well with
Mean Well RD-125B AC-DC Power Supply | Multi-Voltage Output 5V-4.6AMP & 24V-4.6AMP
₹3,186
Mean Well LRS-100-5 SMPS - 5V 18A - 90W Metal Power Supply
₹1,706
Mean Well LRS-75-5 5V 14A 70W Enclosed SMPS Power Supply
₹1,415
Unison 101 ZDA 48 25 01, SSR DC to AC, 25 Amp
₹302
Unison 901 ZDA 48 25 01 AL5, SSR DC to AC, 25 Amp
₹450
Selec UNIX-1-230V, PLC
₹4,490
Description

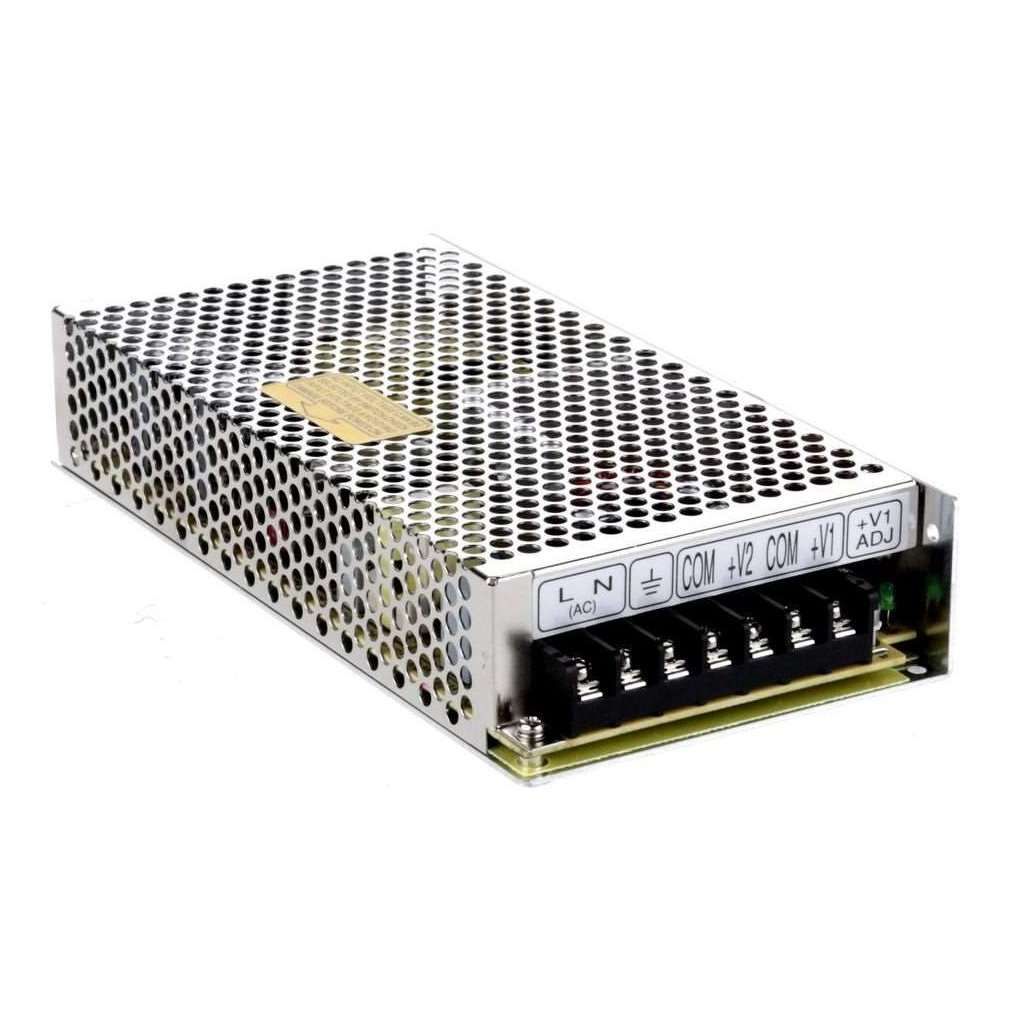

RD-125A, an enclosed power supply from Mean Well, rated 5 VDC at 7.7 A, 12 VDC at 7.7 A, 125 W output power.
Outputs
5 VDC at 7.7 A, 12 VDC at 7.7 A
Power
125 W
Input voltage
88 to 132V AC / 176 to 264V AC selected by switch 248 to 373V DC(Withstand 300V AC surge for 5sec. Without damage)
Approvals
EN60950-1
Technical specifications
| Make | Mean Well |
| Model | RD-125A |
| Outputs | 5 VDC at 7.7 A, 12 VDC at 7.7 A |
| Input voltage | 88 to 132V AC / 176 to 264V AC selected by switch 248 to 373V DC(Withstand 300V AC surge for 5sec. Without damage) |
| Product Category | Switching Power Supplies |
| Output Voltage-Channel 1 | 5 VDC |
| Output Voltage-Channel 2 | 12 VDC |
| Number of Outputs | 2 Output |
| Output Power | 125 W |
| Open Frame/Enclosed | Enclosed |
| Output Current-Channel 1 | 7.7 A |
| Industry | Industrial |
| Mounting Style | Chassis |
| Length | 199 mm |
| Width | 98 mm |
| Height | 38 mm |
| Approvals | EN60950-1 |
| Subcategory | AC-DC Power Supply |
| Unit Weight | 700 g |
Frequently asked questions about the Mean Well RD-125A
What is the output of the Mean Well RD-125A?
The RD-125A is rated 5 VDC at 7.7 A + 12 VDC output, 125 W.
What input voltage does the RD-125A accept?
The RD-125A accepts an input of 88 to 132V AC / 176 to 264V AC selected by switch 248 to 373V DC(Withstand 300V AC surge for 5sec. Without damage), as listed on this page.
What certifications does the RD-125A have?
Mean Well lists: EN60950-1.
How is the RD-125A mounted?
Mounting style: Chassis.
Where can I download the RD-125A datasheet?
You can download it from the datasheet section on this page: RD-125A datasheet.
Is the RD-125A genuine, and do you provide a GST invoice?
Yes. Voltkart is an authorised dealer of Mean Well, so you receive genuine Mean Well products, and every order comes with a GST invoice.
Can I order the RD-125A in bulk for OEM or wholesale use?
Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.
Compare and explore more Mean Well products
- RD-125B - 5 VDC at 4.6 A + 24 VDC
- RD-125-1224 - 12 VDC at 3.7 A + 24 VDC
Need help choosing the right model?
Voltkart is an authorised dealer of Mean Well. Share your load details and we will help you pick the correct power supply.
Output currents: 5 VDC at 7.7 A; 12 VDC at 7.7 A.
