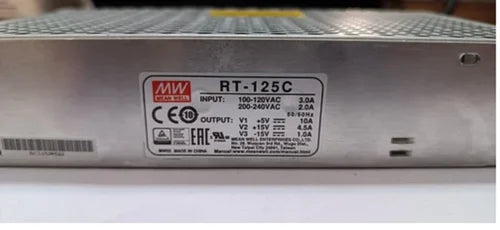

Mean Well RT-125C 132.5W Triple Output 5V 10A, 15V 4.5A, -15V 1A
Price excl. GST
₹2,608.47
GST @ 18% included in above product price
Couldn't load pickup availability
1-year manufacturer warranty · Burnt or wiring damage not covered · Warranty terms
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Works well with
Mean Well RD-125B AC-DC Power Supply | Multi-Voltage Output 5V-4.6AMP & 24V-4.6AMP
₹3,186
Mean Well RD-125A 125W Dual Output 5V 7.7A, 12V 7.7A
₹3,186
Mean Well LRS-100-5 SMPS - 5V 18A - 90W Metal Power Supply
₹1,706
Unison 101 ZDA 48 25 01, SSR DC to AC, 25 Amp
₹302
Unison 901 ZDA 48 25 01 AL5, SSR DC to AC, 25 Amp
₹450
Selec UNIX-1-230V, PLC
₹4,490
Description
RT-125C, an enclosed power supply from Mean Well, rated 5 VDC at 10 A, 15 VDC at 4.5 A, -15 VDC at 1 A, 132.5 W output power.
Outputs
5 VDC at 10 A, 15 VDC at 4.5 A, -15 VDC at 1 A
Power
132.5 W
Input voltage
88 to 132V AC / 176 to 264V AC selected by switch 248 to 373V DC(Withstand 300V AC surge for 5sec. Without damage)
Approvals
EN60950-1
Technical specifications
| Make | Mean Well |
| Model | RT-125C |
| Outputs | 5 VDC at 10 A, 15 VDC at 4.5 A, -15 VDC at 1 A |
| Input voltage | 88 to 132V AC / 176 to 264V AC selected by switch 248 to 373V DC(Withstand 300V AC surge for 5sec. Without damage) |
| Product Category | Switching Power Supplies |
| Output Voltage-Channel 1 | 5 VDC |
| Output Voltage-Channel 2 | 15 VDC |
| Number of Outputs | 3 Output |
| Output Power | 132.5 W |
| Open Frame/Enclosed | Enclosed |
| Output Current-Channel 1 | 10 A |
| Output Current-Channel 2 | 4.5 A |
| Industry | Industrial |
| Mounting Style | Chassis |
| Length | 199 mm (7.835 in) |
| Width | 98 mm (3.858 in) |
| Height | 38 mm (1.496 in) |
| Approvals | EN60950-1 |
| Output Current-Channel 3 | 1 A |
| Output Voltage-Channel 3 | - 15 VDC |
| Subcategory | Power Supplies |
| Part # Aliases | LM100-10C051515-30 |
| Unit Weight | 700 g |
Frequently asked questions about the Mean Well RT-125C
What is the output of the Mean Well RT-125C?
The RT-125C is rated 5 VDC at 10 A + 15 VDC at 4.5 A + - 15 VDC at 1 A output, 132.5 W.
What input voltage does the RT-125C accept?
The RT-125C accepts an input of 88 to 132V AC / 176 to 264V AC selected by switch 248 to 373V DC(Withstand 300V AC surge for 5sec. Without damage), as listed on this page.
What certifications does the RT-125C have?
Mean Well lists: EN60950-1.
How is the RT-125C mounted?
Mounting style: Chassis.
Where can I download the RT-125C datasheet?
You can download it from the datasheet section on this page: RT-125C datasheet.
Is the RT-125C genuine, and do you provide a GST invoice?
Yes. Voltkart is an authorised dealer of Mean Well, so you receive genuine Mean Well products, and every order comes with a GST invoice.
Can I order the RT-125C in bulk for OEM or wholesale use?
Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.
Compare and explore more Mean Well products
- RT-125B - 5 VDC at 12 A + 12 VDC at 5 A + - 12 VDC at 1 A
- RT-125D - 5 VDC at 8 A + 24 VDC at 3 A + 12 VDC at 2 A
Need help choosing the right model?
Voltkart is an authorised dealer of Mean Well. Share your load details and we will help you pick the correct power supply.
Compare all Mean Well dual, triple and quad output SMPS →
Choose a Mean Well multi-output SMPS
Multi-output (multi-voltage) power supplies give two, three or four DC voltages from one unit: RD = dual output, RT = triple output, RQ = quad output. Pick the model whose voltages and currents cover all your loads.
- RD-35A: dual, 5 V 4 A, 12 V 1 A
- RD-35B: dual, 5 V 2.2 A, 24 V 1 A
- RD-50A: dual, 5 V 6 A, 12 V 2 A
- RD-50B: dual, 5 V 4 A, 24 V 1.4 A
- RD-65A: dual, 5 V 6 A, 12 V 3 A
- RD-65B: dual, 5 V 4 A, 24 V 2 A
- RD-125-1224: dual, 12 V 3.7 A, 24 V 3.7 A
- RD-125A: dual, 5 V 7.7 A, 12 V 7.7 A
- RD-125B: dual, 5 V 4.6 A, 24 V 4.6 A
- RT-50A: triple, 5 V 4 A, 12 V 2 A, -5 V 0.5 A
- RT-65D: triple, 5 V 4 A, 24 V 1.5 A, 12 V 1 A
- RT-125B: triple, 5 V 12 A, 12 V 5 A, -12 V 1 A
- RT-125C (this model): triple, 5 V 10 A, 15 V 4.5 A, -15 V 1 A
- RT-125D: triple, 5 V 8 A, 24 V 3 A, 12 V 2 A
- RQ-65B: quad, 5 V 6 A, 12 V 2 A, -5 V 0.5 A, -12 V 0.5 A
- RQ-65D: quad, 5 V 4 A, 12 V 1.5 A, 24 V 1 A, -12 V 0.5 A
- RQ-85C: quad, 5 V 7 A, 15 V 2.5 A, -5 V 0.5 A, -15 V 0.5 A
- RQ-125B: quad, 5 V 11 A, 12 V 4.5 A, -5 V 1 A, -12 V 0.5 A
- RQ-125D: quad, 5 V 8 A, 12 V 2.5 A, 24 V 2 A, -12 V 0.5 A
Prices for all of them: multi output SMPS price list (dual, triple and quad).
