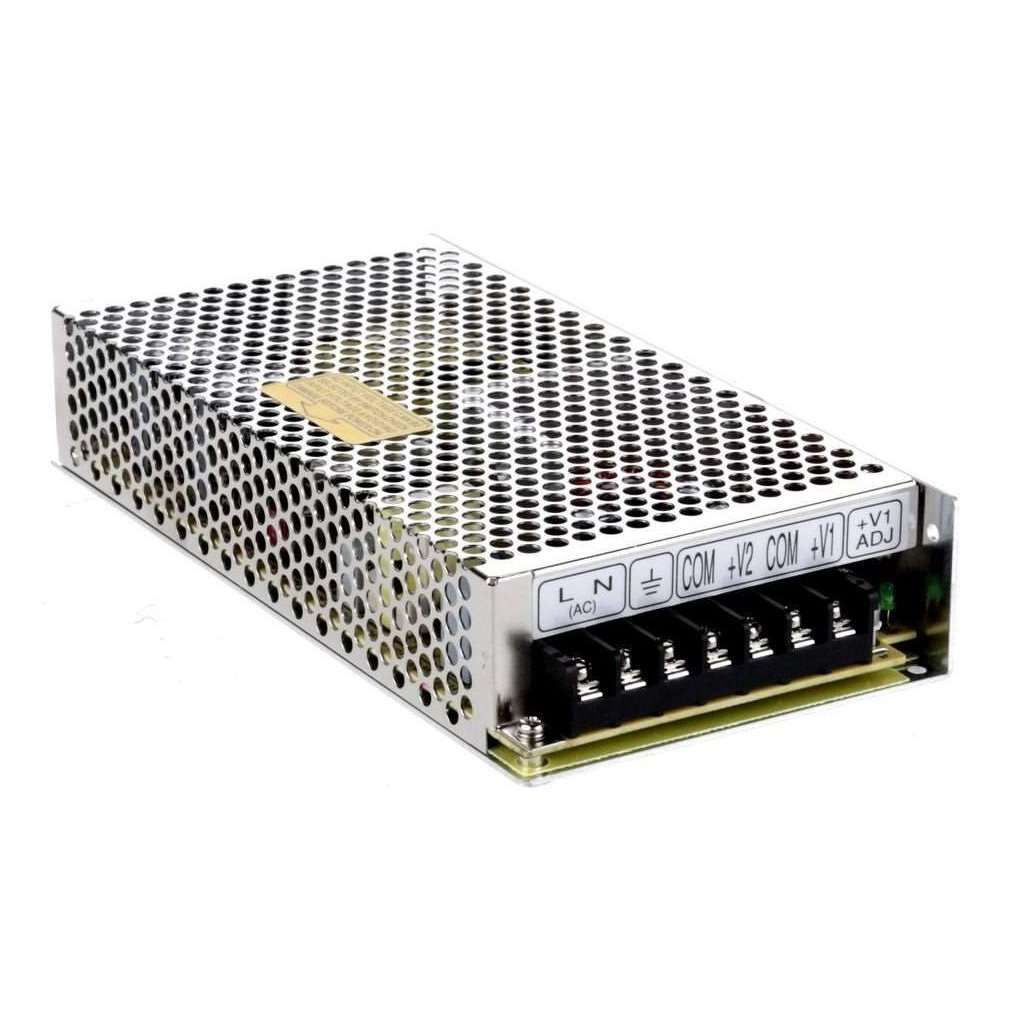

Mean Well RD-125-1224 133W Dual Output 12V 3.7A, 24V 3.7A
Price excl. GST
₹2,562.71
GST @ 18% included in above product price
Couldn't load pickup availability
1-year manufacturer warranty · Burnt or wiring damage not covered · Warranty terms
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Works well with
Mean Well EDR-120-12 SMPS 12V 10A 120W DIN Rail Power Supply
₹2,346
Mean Well LRS-150-12 SMPS - 12V 12.5A - 150W Metal Power Supply
₹1,739
Mean Well LRS-100-12 SMPS 12V 8.5A 100W Industrial Power Supply
₹1,242
Unison 101 ZDA 48 25 01, SSR DC to AC, 25 Amp
₹302
Unison 901 ZDA 48 25 01 AL5, SSR DC to AC, 25 Amp
₹450
Selec UNIX-1-230V, PLC
₹4,490
Description
RD-125-1224, an enclosed power supply from Mean Well, rated 12 VDC at 3.7 A, 24 VDC at 3.7 A, 133.2 W output power.
Outputs
12 VDC at 3.7 A, 24 VDC at 3.7 A
Power
133.2 W
Input voltage
88 to 132V AC / 176 to 264V AC selected by switch 248 to 373V DC(Withstand 300V AC surge for 5sec. Without damage)
Approvals
EN60950-1
Technical specifications
| Make | Mean Well |
| Model | RD-125-1224 |
| Outputs | 12 VDC at 3.7 A, 24 VDC at 3.7 A |
| Input voltage | 88 to 132V AC / 176 to 264V AC selected by switch 248 to 373V DC(Withstand 300V AC surge for 5sec. Without damage) |
| Product Category | Switching Power Supplies |
| Output Voltage-Channel 1 | 12 VDC |
| Output Voltage-Channel 2 | 24 VDC |
| Number of Outputs | 2 Output |
| Output Power | 133.2 W |
| Open Frame/Enclosed | Enclosed |
| Output Current-Channel 1 | 3.7 A |
| Industry | Industrial |
| Mounting Style | Chassis |

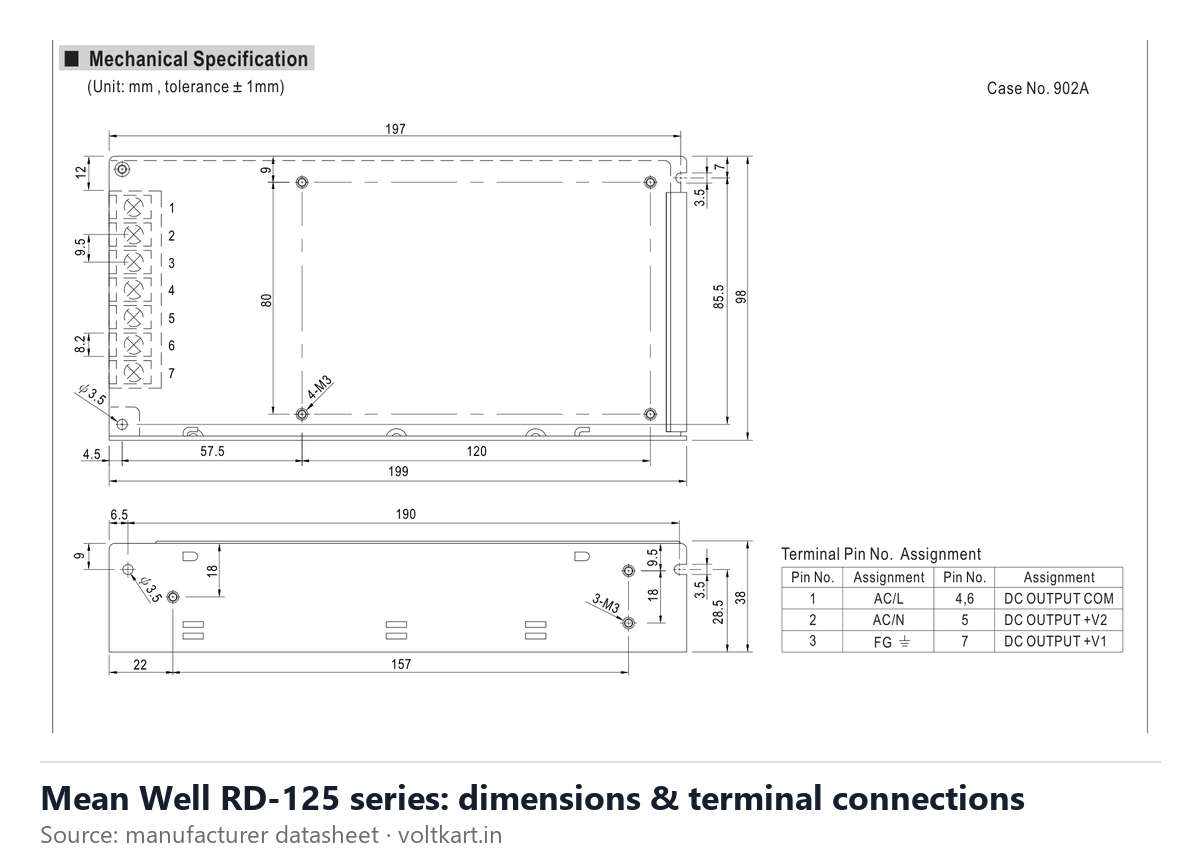

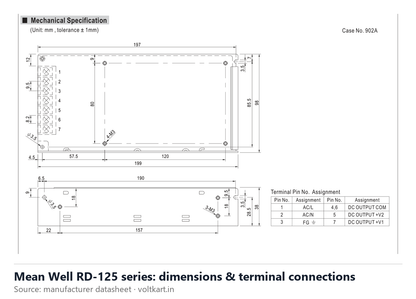

| Length | 199 mm |
| Width | 98 mm |
| Height | 38 mm |
| Approvals | EN60950-1 |
| Subcategory | AC-DC Power Supply |
| Unit Weight | 700 g |
Frequently asked questions about the Mean Well RD-125-1224
What is the output of the Mean Well RD-125-1224?
The RD-125-1224 is rated 12 VDC at 3.7 A + 24 VDC output, 133.2 W.
What input voltage does the RD-125-1224 accept?
The RD-125-1224 accepts an input of 88 to 132V AC / 176 to 264V AC selected by switch 248 to 373V DC(Withstand 300V AC surge for 5sec. Without damage), as listed on this page.
What certifications does the RD-125-1224 have?
Mean Well lists: EN60950-1.
How is the RD-125-1224 mounted?
Mounting style: Chassis.
Where can I download the RD-125-1224 datasheet?
You can download it from the datasheet section on this page: RD-125-1224 datasheet.
Is the RD-125-1224 genuine, and do you provide a GST invoice?
Yes. Voltkart is an authorised dealer of Mean Well, so you receive genuine Mean Well products, and every order comes with a GST invoice.
Can I order the RD-125-1224 in bulk for OEM or wholesale use?
Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.
Compare and explore more Mean Well products
Need help choosing the right model?
Voltkart is an authorised dealer of Mean Well. Share your load details and we will help you pick the correct power supply.
Output currents: 12 VDC at 3.7 A; 24 VDC at 3.7 A.
Compare all Mean Well dual, triple and quad output SMPS →
Choose a Mean Well multi-output SMPS
Multi-output (multi-voltage) power supplies give two, three or four DC voltages from one unit: RD = dual output, RT = triple output, RQ = quad output. Pick the model whose voltages and currents cover all your loads.
- RD-35A: dual, 5 V 4 A, 12 V 1 A
- RD-35B: dual, 5 V 2.2 A, 24 V 1 A
- RD-50A: dual, 5 V 6 A, 12 V 2 A
- RD-50B: dual, 5 V 4 A, 24 V 1.4 A
- RD-65A: dual, 5 V 6 A, 12 V 3 A
- RD-65B: dual, 5 V 4 A, 24 V 2 A
- RD-125-1224 (this model): dual, 12 V 3.7 A, 24 V 3.7 A
- RD-125A: dual, 5 V 7.7 A, 12 V 7.7 A
- RD-125B: dual, 5 V 4.6 A, 24 V 4.6 A
- RT-50A: triple, 5 V 4 A, 12 V 2 A, -5 V 0.5 A
- RT-65D: triple, 5 V 4 A, 24 V 1.5 A, 12 V 1 A
- RT-125B: triple, 5 V 12 A, 12 V 5 A, -12 V 1 A
- RT-125C: triple, 5 V 10 A, 15 V 4.5 A, -15 V 1 A
- RT-125D: triple, 5 V 8 A, 24 V 3 A, 12 V 2 A
- RQ-65B: quad, 5 V 6 A, 12 V 2 A, -5 V 0.5 A, -12 V 0.5 A
- RQ-65D: quad, 5 V 4 A, 12 V 1.5 A, 24 V 1 A, -12 V 0.5 A
- RQ-85C: quad, 5 V 7 A, 15 V 2.5 A, -5 V 0.5 A, -15 V 0.5 A
- RQ-125B: quad, 5 V 11 A, 12 V 4.5 A, -5 V 1 A, -12 V 0.5 A
- RQ-125D: quad, 5 V 8 A, 12 V 2.5 A, 24 V 2 A, -12 V 0.5 A
Prices for all of them: multi output SMPS price list (dual, triple and quad).
