Mean Well
-
Mean Well RQ125D 125W Quad Output SMPS 5V 8A, 12V 2.5A, 24V 2A, -12V 0.5A
Incl. GST
Couldn't load pickup availability
1-year manufacturer warranty · Burnt or wiring damage not covered · Warranty terms
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Works well with
Mean Well RD-125B AC-DC Power Supply | Multi-Voltage Output 5V-4.6AMP & 24V-4.6AMP
₹3,186
Mean Well RD-125A 125W Dual Output 5V 7.7A, 12V 7.7A
₹3,186
Mean Well LRS-100-5 SMPS - 5V 18A - 90W Metal Power Supply
₹1,706
Unison 101 ZDA 48 25 01, SSR DC to AC, 25 Amp
₹302
Unison 901 ZDA 48 25 01 AL5, SSR DC to AC, 25 Amp
₹450
Selec UNIX-1-230V, PLC
₹4,490
Description

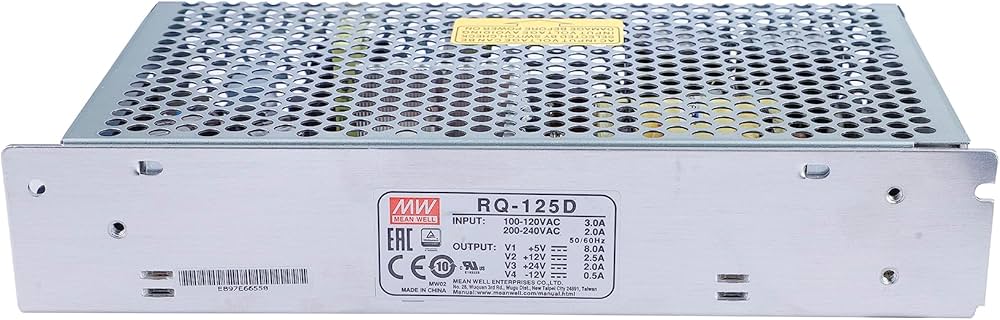

RQ125D, an enclosed power supply from Mean Well, rated 5 VDC at 8 A, 12 VDC at 2.5 A, 24 VDC at 2 A, -12 VDC at 500 mA, 125 W output power.
Technical specifications
| Make | Mean Well |
| Model | RQ125D |
| Outputs | 5 VDC at 8 A, 12 VDC at 2.5 A, 24 VDC at 2 A, -12 VDC at 500 mA |
| Input voltage | 88 to 132V AC / 176 to 264V AC selected by switch 248 to 373V DC(Withstand 300V AC surge for 5sec. Without damage) |
| Product Category | Switching Power Supplies |
| Output Voltage-Channel 1 | 5 VDC |
| Output Voltage-Channel 2 | 12 VDC |
| Number of Outputs | 4 Output |
| Output Power | 125 W |
| Open Frame/Enclosed | Enclosed |
| Output Current-Channel 1 | 8 A |
| Output Current-Channel 2 | 2.5 A |
| Industry | Industrial |
| Mounting Style | Chassis |
| Length | 199 mm (7.835 in) |
| Width | 98 mm (3.858 in) |
| Height | 38 mm (1.496 in) |
| Output Current-Channel 3 | 2 A |
| Output Current-Channel 4 | 500 mA |
| Output Voltage-Channel 3 | 24 VDC |
| Output Voltage-Channel 4 | - 12 VDC |
| Packaging | Bulk |
| Subcategory | Power Supplies |
| Unit Weight | 700 g |
Frequently asked questions about the Mean Well RQ125D
What is the output of the Mean Well RQ125D?
What input voltage does the RQ125D accept?
How is the RQ125D mounted?
Where can I download the RQ125D datasheet?
Is the RQ125D genuine, and do you provide a GST invoice?
Can I order the RQ125D in bulk for OEM or wholesale use?
Compare and explore more Mean Well products
- RQ125B - 5 VDC at 11 A + 12 VDC at 4.5 A + - 5 VDC at 1 A + - 12 VDC at 500 mA
Comparing 24V power supplies? See every model from 10 W to 960 W in the 24V SMPS price list.
Compare all Mean Well dual, triple and quad output SMPS →
Choose a Mean Well multi-output SMPS
Multi-output (multi-voltage) power supplies give two, three or four DC voltages from one unit: RD = dual output, RT = triple output, RQ = quad output. Pick the model whose voltages and currents cover all your loads.
- RD-35A: dual, 5 V 4 A, 12 V 1 A
- RD-35B: dual, 5 V 2.2 A, 24 V 1 A
- RD-50A: dual, 5 V 6 A, 12 V 2 A
- RD-50B: dual, 5 V 4 A, 24 V 1.4 A
- RD-65A: dual, 5 V 6 A, 12 V 3 A
- RD-65B: dual, 5 V 4 A, 24 V 2 A
- RD-125-1224: dual, 12 V 3.7 A, 24 V 3.7 A
- RD-125A: dual, 5 V 7.7 A, 12 V 7.7 A
- RD-125B: dual, 5 V 4.6 A, 24 V 4.6 A
- RT-50A: triple, 5 V 4 A, 12 V 2 A, -5 V 0.5 A
- RT-65D: triple, 5 V 4 A, 24 V 1.5 A, 12 V 1 A
- RT-125B: triple, 5 V 12 A, 12 V 5 A, -12 V 1 A
- RT-125C: triple, 5 V 10 A, 15 V 4.5 A, -15 V 1 A
- RT-125D: triple, 5 V 8 A, 24 V 3 A, 12 V 2 A
- RQ-65B: quad, 5 V 6 A, 12 V 2 A, -5 V 0.5 A, -12 V 0.5 A
- RQ-65D: quad, 5 V 4 A, 12 V 1.5 A, 24 V 1 A, -12 V 0.5 A
- RQ-85C: quad, 5 V 7 A, 15 V 2.5 A, -5 V 0.5 A, -15 V 0.5 A
- RQ-125B: quad, 5 V 11 A, 12 V 4.5 A, -5 V 1 A, -12 V 0.5 A
- RQ-125D (this model): quad, 5 V 8 A, 12 V 2.5 A, 24 V 2 A, -12 V 0.5 A
Prices for all of them: multi output SMPS price list (dual, triple and quad).
