Description

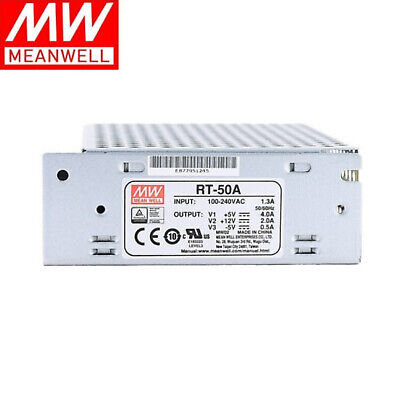

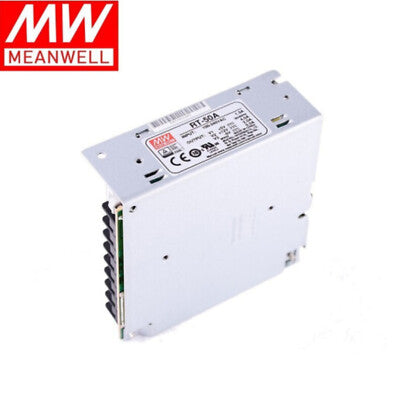

RT-50A, an enclosed power supply from Mean Well, rated 5 VDC at 4 A, 12 VDC at 2 A, -5 VDC at 500 mA, 46 W output power.
Outputs
5 VDC at 4 A, 12 VDC at 2 A, -5 VDC at 500 mA
Power
46 W
Input voltage
88 to 264V AC 125 to 373V DC (Withstand 300V AC surge for 5sec. Without damage)
Approvals
EN60950-1
Technical specifications
| Make | Mean Well |
| Model | RT-50A |
| Outputs | 5 VDC at 4 A, 12 VDC at 2 A, -5 VDC at 500 mA |
| Input voltage | 88 to 264V AC 125 to 373V DC (Withstand 300V AC surge for 5sec. Without damage) |
| Product Category | Switching Power Supplies |
| Output Voltage-Channel 1 | 5 VDC |
| Output Voltage-Channel 2 | 12 VDC |
| Number of Outputs | 3 Output |
| Output Power | 46 W |
| Open Frame/Enclosed | Enclosed |
| Output Current-Channel 1 | 4 A |
| Output Current-Channel 2 | 2 A |
| Industry | Industrial |
| Mounting Style | Chassis |
| Length | 99 mm (3.898 in) |
| Width | 97 mm (3.819 in) |
| Height | 36 mm (1.417 in) |
| Approvals | EN60950-1 |
| Output Current-Channel 3 | 500 mA |
| Output Voltage-Channel 3 | - 5 VDC |
| Subcategory | Power Supplies |
| Unit Weight | 410 g |
Frequently asked questions about the Mean Well RT-50A
What is the output of the Mean Well RT-50A?
The RT-50A is rated 5 VDC at 4 A + 12 VDC at 2 A + - 5 VDC at 500 mA output, 46 W.
What input voltage does the RT-50A accept?
The RT-50A accepts an input of 88 to 264V AC 125 to 373V DC (Withstand 300V AC surge for 5sec. Without damage), as listed on this page.
What certifications does the RT-50A have?
Mean Well lists: EN60950-1.
How is the RT-50A mounted?
Mounting style: Chassis.
Where can I download the RT-50A datasheet?
You can download it from the datasheet section on this page: RT-50A datasheet.
Is the RT-50A genuine, and do you provide a GST invoice?
Yes. Voltkart is an authorised dealer of Mean Well, so you receive genuine Mean Well products, and every order comes with a GST invoice.
Can I order the RT-50A in bulk for OEM or wholesale use?
Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.
Compare and explore more Mean Well products
Need help choosing the right model?
Voltkart is an authorised dealer of Mean Well. Share your load details and we will help you pick the correct power supply.
Compare all Mean Well dual, triple and quad output SMPS →
Choose a Mean Well multi-output SMPS
Multi-output (multi-voltage) power supplies give two, three or four DC voltages from one unit: RD = dual output, RT = triple output, RQ = quad output. Pick the model whose voltages and currents cover all your loads.
- RD-35A: dual, 5 V 4 A, 12 V 1 A
- RD-35B: dual, 5 V 2.2 A, 24 V 1 A
- RD-50A: dual, 5 V 6 A, 12 V 2 A
- RD-50B: dual, 5 V 4 A, 24 V 1.4 A
- RD-65A: dual, 5 V 6 A, 12 V 3 A
- RD-65B: dual, 5 V 4 A, 24 V 2 A
- RD-125-1224: dual, 12 V 3.7 A, 24 V 3.7 A
- RD-125A: dual, 5 V 7.7 A, 12 V 7.7 A
- RD-125B: dual, 5 V 4.6 A, 24 V 4.6 A
- RT-50A (this model): triple, 5 V 4 A, 12 V 2 A, -5 V 0.5 A
- RT-65C: triple, 5 V 5 A, 15 V 2.2 A, -15 V 0.5 A
- RT-65D: triple, 5 V 4 A, 24 V 1.5 A, 12 V 1 A
- RT-125B: triple, 5 V 12 A, 12 V 5 A, -12 V 1 A
- RT-125C: triple, 5 V 10 A, 15 V 4.5 A, -15 V 1 A
- RT-125D: triple, 5 V 8 A, 24 V 3 A, 12 V 2 A
- RQ-65B: quad, 5 V 6 A, 12 V 2 A, -5 V 0.5 A, -12 V 0.5 A
- RQ-65D: quad, 5 V 4 A, 12 V 1.5 A, 24 V 1 A, -12 V 0.5 A
- RQ-85C: quad, 5 V 7 A, 15 V 2.5 A, -5 V 0.5 A, -15 V 0.5 A
- RQ-125B: quad, 5 V 11 A, 12 V 4.5 A, -5 V 1 A, -12 V 0.5 A
- RQ-125D: quad, 5 V 8 A, 12 V 2.5 A, 24 V 2 A, -12 V 0.5 A
