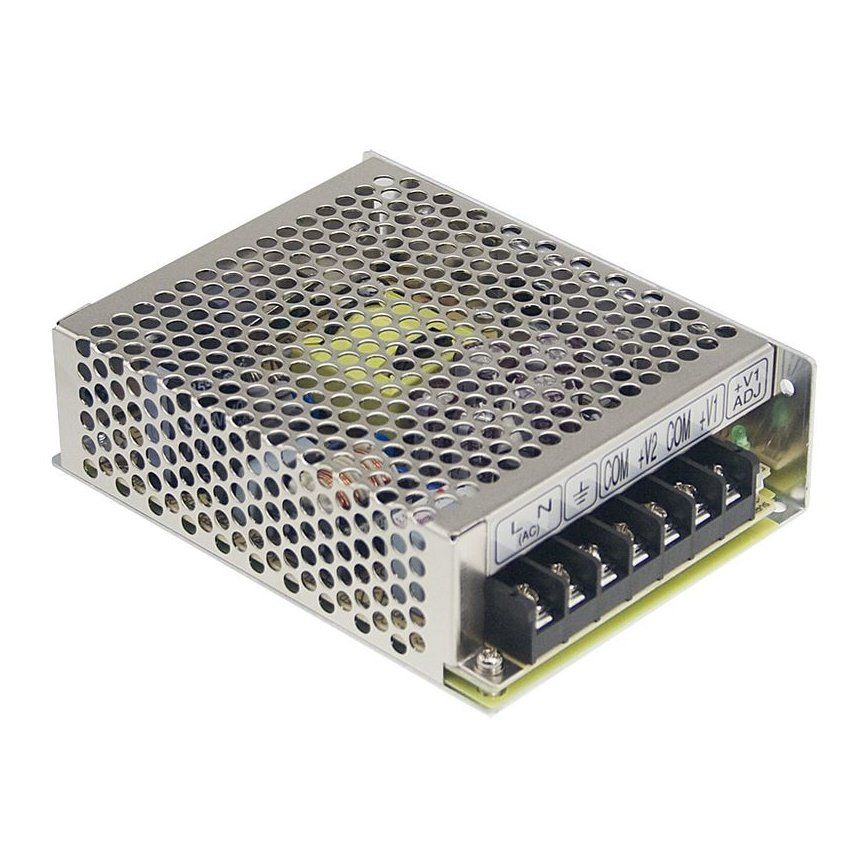

Mean Well RD-50B AC-DC Power Supply | Multi-Voltage Output 5V-4AMP & 24V-1.4AMP
Regular price
₹1,868
Regular price
₹3,200
Sale price
₹1,868
Incl. all taxes • Shipping calculated at checkout.
Price excl. GST
₹1,583.05
GST @ 18% included in above product price
Authorized Dealer
GST Invoice
PAN India Delivery
Fast Dispatch
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Works well with
Mean Well LRS-50-5 SMPS - 5V 10A - 50.4W Metal Power Supply
₹1,221
Mean Well RD-50A AC-DC Power Supply | Multi-Voltage Output 5V-6AMP & 12V-2AMP
₹1,868
Mean Well MDR-60-5 5V 10A 50W DIN Rail Power Supply
₹1,905
Unison 101 ZDA 48 25 01, SSR Dc to Ac, 25amp
₹302
Unison 901 ZDA 48 25 01 AL5, SSR Dc to Ac, 25amp
₹450
Selec UNIX-1-230V, PLC
₹4,490
Description
RD-50B, an enclosed power supply from Mean Well, rated 5 VDC at 4 A, 24 VDC at 1.4 A, 54 W output power.
Outputs
5 VDC at 4 A, 24 VDC at 1.4 A
Power
54 W
Input voltage
88 to 264V AC 125 to 373V DC (Withstand 300V AC surge for 5sec. Without damage)
Approvals
EN60950-1
Technical specifications
| Make | Mean Well |
| Model | RD-50B |
| Outputs | 5 VDC at 4 A, 24 VDC at 1.4 A |
| Input voltage | 88 to 264V AC 125 to 373V DC (Withstand 300V AC surge for 5sec. Without damage) |
| Product Category | Switching Power Supplies |
| Output Voltage-Channel 1 | 5 VDC |
| Output Voltage-Channel 2 | 24 VDC |
| Number of Outputs | 2 Output |
| Output Power | 54 W |
| Open Frame/Enclosed | Enclosed |
| Output Current-Channel 1 | 4 A |
| Output Current-Channel 2 | 1.4 A |
| Industry | Industrial |
| Mounting Style | Chassis |

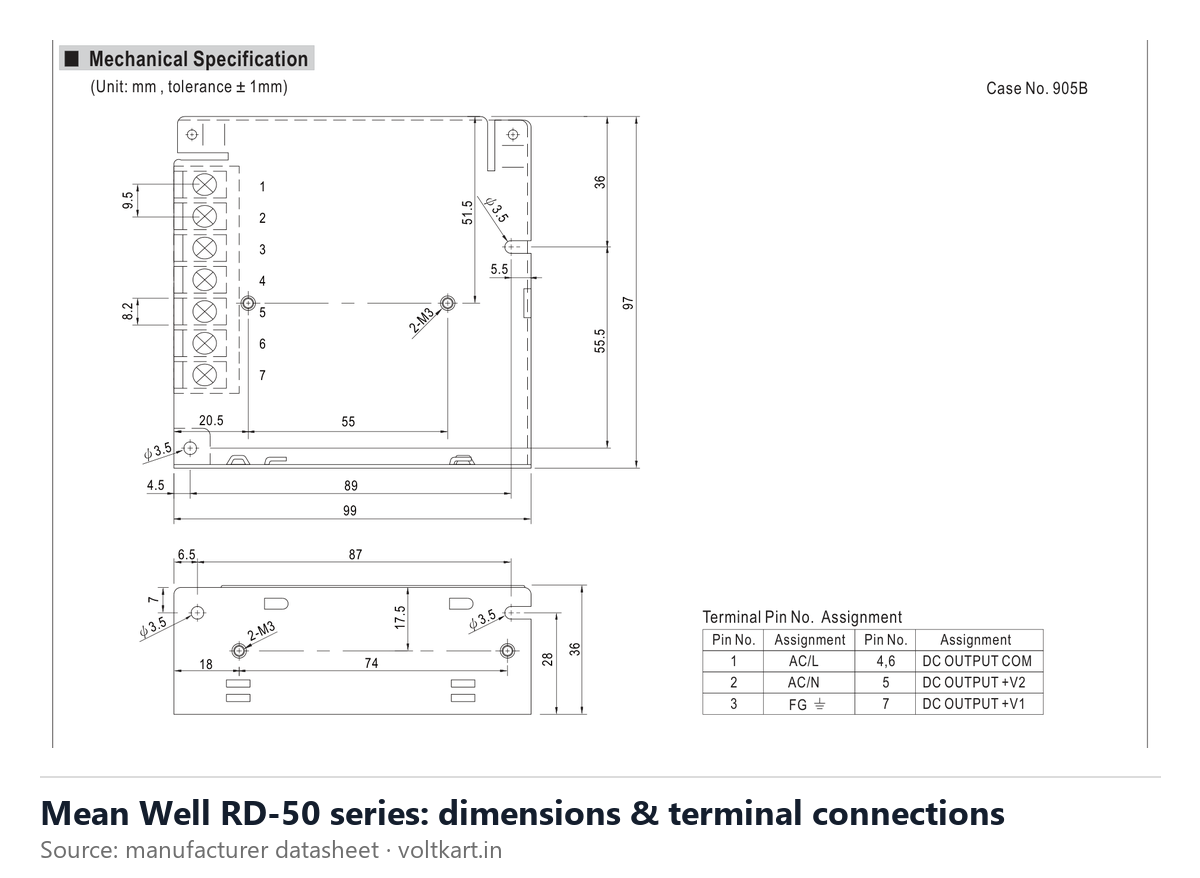

| Length | 99 mm |
| Width | 97 mm |
| Height | 36 mm |
| Approvals | EN60950-1 |
| Packaging | Bulk |
| Subcategory | AC-DC Power Supply |
| Unit Weight | 410 g |
Frequently asked questions about the Mean Well RD-50B
What is the output of the Mean Well RD-50B?
The RD-50B is rated 5 VDC at 4 A + 24 VDC at 1.4 A output, 54 W.
What input voltage does the RD-50B accept?
The RD-50B accepts an input of 88 to 264V AC 125 to 373V DC (Withstand 300V AC surge for 5sec. Without damage), as listed on this page.
What certifications does the RD-50B have?
Mean Well lists: EN60950-1.
How is the RD-50B mounted?
Mounting style: Chassis.
Where can I download the RD-50B datasheet?
You can download it from the datasheet section on this page: RD-50B datasheet.
Is the RD-50B genuine, and do you provide a GST invoice?
Yes. Voltkart is an authorised dealer of Mean Well, so you receive genuine Mean Well products, and every order comes with a GST invoice.
Can I order the RD-50B in bulk for OEM or wholesale use?
Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.
Compare and explore more Mean Well products
- RD-50A - 5 VDC at 6 A + 12 VDC at 2 A
Need help choosing the right model?
Voltkart is an authorised dealer of Mean Well. Share your load details and we will help you pick the correct power supply.
