Mean Well
-
Mean Well RD-35B 35W Dual Output 5V 2.2A, 24V 1A
Regular price
₹1,382
Regular price
Sale price
₹1,382
Incl. all taxes • Shipping calculated at checkout.
Free delivery on orders above ₹3,000 · Delivery charges
Price excl. GST
₹1,171.19
GST @ 18% included in above product price
1-year manufacturer warranty · Burnt or wiring damage not covered · Warranty terms
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Works well with
Mean Well LRS-35-5 5V 7A 35W Enclosed SMPS Power Supply
₹1,026
Mean Well MDR-40-5 5V 6A 30W DIN Rail Power Supply
₹1,642
Mean Well LRS-50-5 SMPS - 5V 10A - 50.4W Metal Power Supply
₹1,221
Unison 101 ZDA 48 25 01, SSR DC to AC, 25 Amp
₹302
Unison 901 ZDA 48 25 01 AL5, SSR DC to AC, 25 Amp
₹450
Selec UNIX-1-230V, PLC
₹4,490
Description

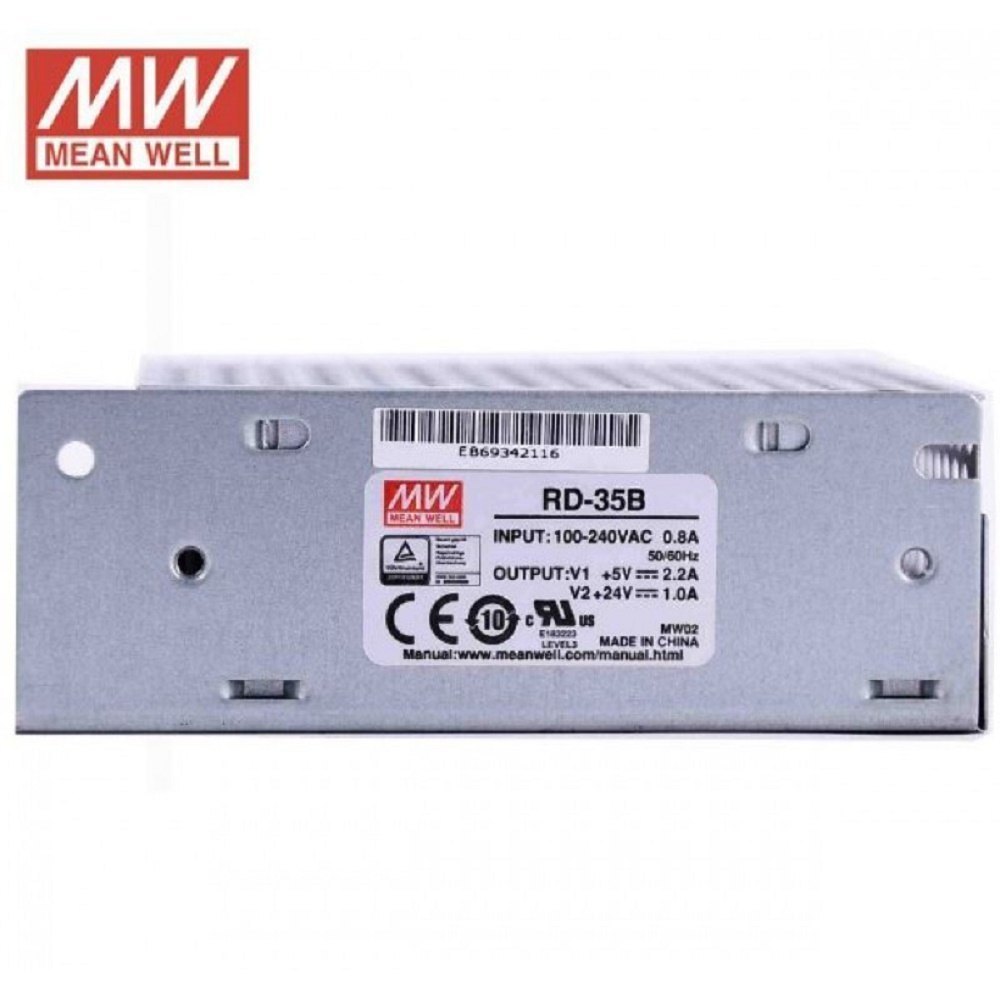

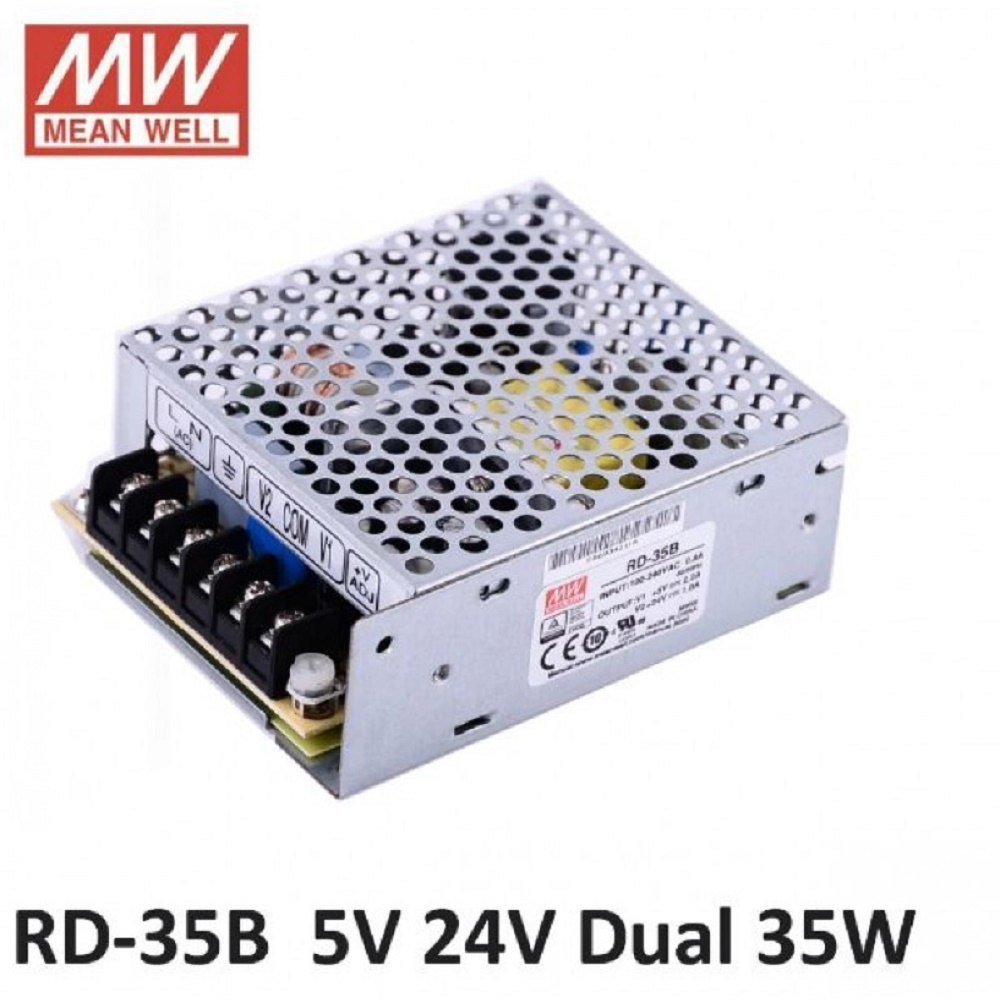

RD-35B, an enclosed power supply from Mean Well, rated 5 VDC at 2.2 A, 24 VDC at 1 A, 35 W output power.
Outputs
5 VDC at 2.2 A, 24 VDC at 1 A
Power
35 W
Input voltage
88 to 264V AC 125 to 373V DC (Withstand 300V AC surge for 5sec. Without damage)
Approvals
EN60950-1
Technical specifications
| Make | Mean Well |
| Model | RD-35B |
| Outputs | 5 VDC at 2.2 A, 24 VDC at 1 A |
| Input voltage | 88 to 264V AC 125 to 373V DC (Withstand 300V AC surge for 5sec. Without damage) |
| Product Category | Switching Power Supplies |
| Output Voltage-Channel 1 | 5 VDC |
| Output Voltage-Channel 2 | 24 VDC |
| Number of Outputs | 2 Output |
| Output Power | 35 W |
| Open Frame/Enclosed | Enclosed |
| Output Current-Channel 1 | 2.2 A |
| Output Current-Channel 2 | 1 A |
| Industry | Industrial |
| Mounting Style | Chassis |
| Length | 99 mm (3.898 in) |
| Width | 82 mm (3.228 in) |
| Height | 36 mm (1.417 in) |
| Approvals | EN60950-1 |
| Subcategory | Power Supplies |
| Part # Aliases | LM35-10D0524-10 |
| Unit Weight | 300 g |
Frequently asked questions about the Mean Well RD-35B
What is the output of the Mean Well RD-35B?
The RD-35B is rated 5 VDC at 2.2 A + 24 VDC at 1 A output, 35 W.
What input voltage does the RD-35B accept?
The RD-35B accepts an input of 88 to 264V AC 125 to 373V DC (Withstand 300V AC surge for 5sec. Without damage), as listed on this page.
What certifications does the RD-35B have?
Mean Well lists: EN60950-1.
How is the RD-35B mounted?
Mounting style: Chassis.
Where can I download the RD-35B datasheet?
You can download it from the datasheet section on this page: RD-35B datasheet.
Is the RD-35B genuine, and do you provide a GST invoice?
Yes. Voltkart is an authorised dealer of Mean Well, so you receive genuine Mean Well products, and every order comes with a GST invoice.
Can I order the RD-35B in bulk for OEM or wholesale use?
Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.
Compare and explore more Mean Well products
- RD-35A - 5 VDC at 4 A + 12 VDC at 1 A
Need help choosing the right model?
Voltkart is an authorised dealer of Mean Well. Share your load details and we will help you pick the correct power supply.
Compare all Mean Well dual, triple and quad output SMPS →
Choose a Mean Well multi-output SMPS
Multi-output (multi-voltage) power supplies give two, three or four DC voltages from one unit: RD = dual output, RT = triple output, RQ = quad output. Pick the model whose voltages and currents cover all your loads.
- RD-35A: dual, 5 V 4 A, 12 V 1 A
- RD-35B (this model): dual, 5 V 2.2 A, 24 V 1 A
- RD-50A: dual, 5 V 6 A, 12 V 2 A
- RD-50B: dual, 5 V 4 A, 24 V 1.4 A
- RD-65A: dual, 5 V 6 A, 12 V 3 A
- RD-65B: dual, 5 V 4 A, 24 V 2 A
- RD-125-1224: dual, 12 V 3.7 A, 24 V 3.7 A
- RD-125A: dual, 5 V 7.7 A, 12 V 7.7 A
- RD-125B: dual, 5 V 4.6 A, 24 V 4.6 A
- RT-50A: triple, 5 V 4 A, 12 V 2 A, -5 V 0.5 A
- RT-65C: triple, 5 V 5 A, 15 V 2.2 A, -15 V 0.5 A
- RT-65D: triple, 5 V 4 A, 24 V 1.5 A, 12 V 1 A
- RT-125B: triple, 5 V 12 A, 12 V 5 A, -12 V 1 A
- RT-125C: triple, 5 V 10 A, 15 V 4.5 A, -15 V 1 A
- RT-125D: triple, 5 V 8 A, 24 V 3 A, 12 V 2 A
- RQ-65B: quad, 5 V 6 A, 12 V 2 A, -5 V 0.5 A, -12 V 0.5 A
- RQ-65D: quad, 5 V 4 A, 12 V 1.5 A, 24 V 1 A, -12 V 0.5 A
- RQ-85C: quad, 5 V 7 A, 15 V 2.5 A, -5 V 0.5 A, -15 V 0.5 A
- RQ-125B: quad, 5 V 11 A, 12 V 4.5 A, -5 V 1 A, -12 V 0.5 A
- RQ-125D: quad, 5 V 8 A, 12 V 2.5 A, 24 V 2 A, -12 V 0.5 A
Prices for all of them: multi output SMPS price list (dual, triple and quad).
