Mean Well RD-50A AC-DC Power Supply | Multi-Voltage Output 5V-6AMP & 12V-2AMP
Regular price
Rs. 1,868.00
Regular price
Rs. 3,122.00
Sale price
Rs. 1,868.00
Incl. all taxes • Shipping calculated at checkout.
Price excl. GST
Rs. 1,583.05
GST @ 18% included in above product price
Authorized Dealer
GST Invoice
PAN India Delivery
Fast Dispatch
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Works well with
Unison 901 ZDA 60 90 01 CU2, SSR Dc to Ac, 90amp (heat sink not included)
Rs. 1,350
Delta DVP14SS211R PLC 8DI/6DO relay Outpput
Rs. 7,550
EAPL B1DCA-X Cyclic Timer
Rs. 1,425
Unison 901 ZDA 48 40 01 AL5, SSR Dc to Ac, 40amp
Rs. 605
Description

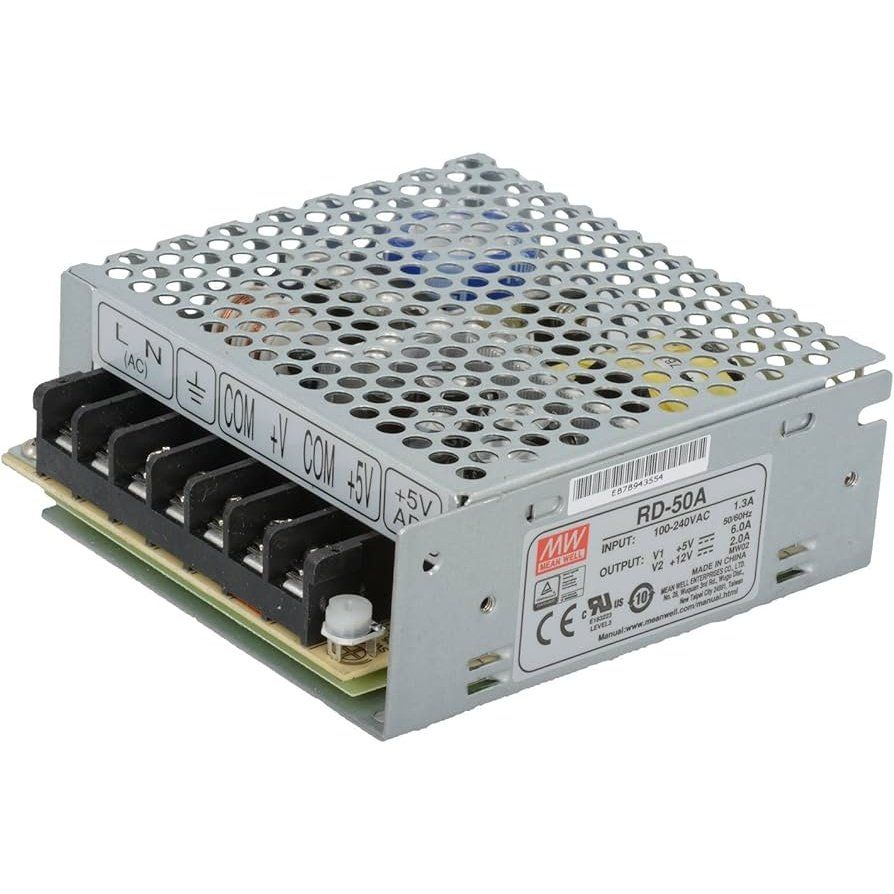

RD-50A, an enclosed power supply from Mean Well, rated 5 VDC at 6 A + 12 VDC at 2 A, 30 W output power.
Outputs
5 VDC at 6 A + 12 VDC at 2 A
Power
30 W
Input voltage
88 to 264V AC 125 to 373V DC (Withstand 300V AC surge for 5sec. Without damage)
Approvals
EN60950-1
Technical specifications
| Make | Mean Well |
| Model | RD-50A |
| Outputs | 5 VDC at 6 A + 12 VDC at 2 A |
| Input voltage | 88 to 264V AC 125 to 373V DC (Withstand 300V AC surge for 5sec. Without damage) |
| Product Category | Switching Power Supplies |
| Output Voltage-Channel 1 | 5 VDC |
| Output Voltage-Channel 2 | 12 VDC |
| Number of Outputs | 2 Output |
| Output Power | 30 W |
| Open Frame/Enclosed | Enclosed |
| Output Current-Channel 1 | 6 A |
| Output Current-Channel 2 | 2 A |
| Industry | Industrial |
| Mounting Style | Chassis |
| Length | 99 mm |
| Width | 97 mm |
| Height | 36 mm |
| Approvals | EN60950-1 |
| Subcategory | AC-DC Power Supply |
| Unit Weight | 410 g |
Frequently asked questions about the Mean Well RD-50A
What is the output of the Mean Well RD-50A?
The RD-50A is rated 5 VDC at 6 A + 12 VDC at 2 A output, 30 W.
What input voltage does the RD-50A accept?
The RD-50A accepts an input of 88 to 264V AC 125 to 373V DC (Withstand 300V AC surge for 5sec. Without damage), as listed on this page.
What certifications does the RD-50A have?
Mean Well lists: EN60950-1.
How is the RD-50A mounted?
Mounting style: Chassis.
Where can I download the RD-50A datasheet?
You can download it from the datasheet section on this page: RD-50A datasheet.
Is the RD-50A genuine, and do you provide a GST invoice?
Yes. Voltkart is an authorised dealer of Mean Well, so you receive genuine Mean Well products, and every order comes with a GST invoice.
Can I order the RD-50A in bulk for OEM or wholesale use?
Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.
Compare and explore more Mean Well products
- RD-50B - 5 VDC at 4 A + 24 VDC at 1.4 A
Need help choosing the right model?
Voltkart is an authorised dealer of Mean Well. Share your load details and we will help you pick the correct power supply.
