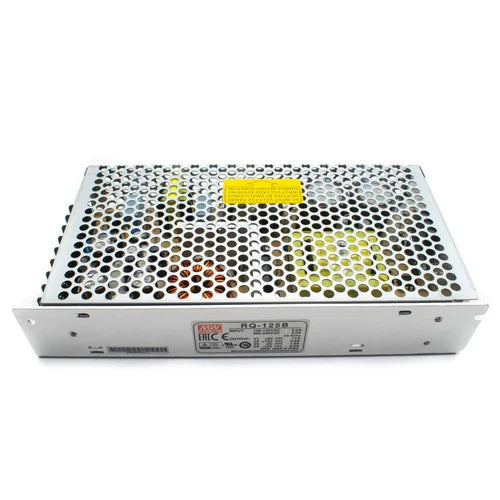

Mean Well RQ125B 125W Quad Output SMPS 5V 11A, 12V 4.5A, -5V 1A, -12V 0.5A
Regular price
₹3,402
Regular price
Sale price
₹3,402
Incl. all taxes • Shipping calculated at checkout.
Need a different current rating? Compare all 12V SMPS models and prices.
Price excl. GST
₹2,883.05
GST @ 18% included in above product price
1-year manufacturer warranty · Burnt or wiring damage not covered · Warranty terms
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Works well with
Mean Well RD-125B AC-DC Power Supply | Multi-Voltage Output 5V-4.6AMP & 24V-4.6AMP
₹3,186
Mean Well RD-125A 125W Dual Output 5V 7.7A, 12V 7.7A
₹3,186
Mean Well LRS-100-5 SMPS - 5V 18A - 90W Metal Power Supply
₹1,706
Unison 101 ZDA 48 25 01, SSR DC to AC, 25 Amp
₹302
Unison 901 ZDA 48 25 01 AL5, SSR DC to AC, 25 Amp
₹450
Selec UNIX-1-230V, PLC
₹4,490
Description
RQ125B, an enclosed power supply from Mean Well, rated 5 VDC at 11 A, 12 VDC at 4.5 A, -5 VDC at 1 A, -12 VDC at 500 mA, 125 W output power.
Outputs
5 VDC at 11 A, 12 VDC at 4.5 A, -5 VDC at 1 A, -12 VDC at 500 mA
Power
125 W
Input voltage
88 to 132V AC / 176 to 264V AC selected by switch 248 to 373V DC(Withstand 300V AC surge for 5sec. Without damage)
Mounting Style
Chassis
Technical specifications
| Make | Mean Well |
| Model | RQ125B |
| Outputs | 5 VDC at 11 A, 12 VDC at 4.5 A, -5 VDC at 1 A, -12 VDC at 500 mA |
| Input voltage | 88 to 132V AC / 176 to 264V AC selected by switch 248 to 373V DC(Withstand 300V AC surge for 5sec. Without damage) |
| Product Category | Switching Power Supplies |
| Output Voltage-Channel 1 | 5 VDC |
| Output Voltage-Channel 2 | 12 VDC |
| Number of Outputs | 4 Output |
| Output Power | 125 W |
| Open Frame/Enclosed | Enclosed |
| Output Current-Channel 1 | 11 A |
| Output Current-Channel 2 | 4.5 A |
| Industry | Industrial |
| Mounting Style | Chassis |
| Length | 199 mm (7.835 in) |
| Width | 98 mm (3.858 in) |
| Height | 38 mm (1.496 in) |
| Output Current-Channel 3 | 1 A |
| Output Current-Channel 4 | 500 mA |
| Output Voltage-Channel 3 | - 5 VDC |
| Output Voltage-Channel 4 | - 12 VDC |
| Packaging | Bulk |
| Subcategory | Power Supplies |
| Unit Weight | 700 g |
Frequently asked questions about the Mean Well RQ125B
What is the output of the Mean Well RQ125B?
The RQ125B is rated 5 VDC at 11 A + 12 VDC at 4.5 A + - 5 VDC at 1 A + - 12 VDC at 500 mA output, 125 W.
What input voltage does the RQ125B accept?
The RQ125B accepts an input of 88 to 132V AC / 176 to 264V AC selected by switch 248 to 373V DC(Withstand 300V AC surge for 5sec. Without damage), as listed on this page.
How is the RQ125B mounted?
Mounting style: Chassis.
Where can I download the RQ125B datasheet?
You can download it from the datasheet section on this page: RQ125B datasheet.
Is the RQ125B genuine, and do you provide a GST invoice?
Yes. Voltkart is an authorised dealer of Mean Well, so you receive genuine Mean Well products, and every order comes with a GST invoice.
Can I order the RQ125B in bulk for OEM or wholesale use?
Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.
Compare and explore more Mean Well products
- RQ125D - 5 VDC at 8 A + 12 VDC at 2.5 A + 24 VDC at 2 A + - 12 VDC at 500 mA
Need help choosing the right model?
Voltkart is an authorised dealer of Mean Well. Share your load details and we will help you pick the correct power supply.
Compare all Mean Well dual, triple and quad output SMPS →
Choose a Mean Well multi-output SMPS
Multi-output (multi-voltage) power supplies give two, three or four DC voltages from one unit: RD = dual output, RT = triple output, RQ = quad output. Pick the model whose voltages and currents cover all your loads.
- RD-35A: dual, 5 V 4 A, 12 V 1 A
- RD-35B: dual, 5 V 2.2 A, 24 V 1 A
- RD-50A: dual, 5 V 6 A, 12 V 2 A
- RD-50B: dual, 5 V 4 A, 24 V 1.4 A
- RD-65A: dual, 5 V 6 A, 12 V 3 A
- RD-65B: dual, 5 V 4 A, 24 V 2 A
- RD-125-1224: dual, 12 V 3.7 A, 24 V 3.7 A
- RD-125A: dual, 5 V 7.7 A, 12 V 7.7 A
- RD-125B: dual, 5 V 4.6 A, 24 V 4.6 A
- RT-50A: triple, 5 V 4 A, 12 V 2 A, -5 V 0.5 A
- RT-65C: triple, 5 V 5 A, 15 V 2.2 A, -15 V 0.5 A
- RT-65D: triple, 5 V 4 A, 24 V 1.5 A, 12 V 1 A
- RT-125B: triple, 5 V 12 A, 12 V 5 A, -12 V 1 A
- RT-125C: triple, 5 V 10 A, 15 V 4.5 A, -15 V 1 A
- RT-125D: triple, 5 V 8 A, 24 V 3 A, 12 V 2 A
- RQ-65B: quad, 5 V 6 A, 12 V 2 A, -5 V 0.5 A, -12 V 0.5 A
- RQ-65D: quad, 5 V 4 A, 12 V 1.5 A, 24 V 1 A, -12 V 0.5 A
- RQ-85C: quad, 5 V 7 A, 15 V 2.5 A, -5 V 0.5 A, -15 V 0.5 A
- RQ-125B (this model): quad, 5 V 11 A, 12 V 4.5 A, -5 V 1 A, -12 V 0.5 A
- RQ-125D: quad, 5 V 8 A, 12 V 2.5 A, 24 V 2 A, -12 V 0.5 A
Prices for all of them: multi output SMPS price list (dual, triple and quad).
