Mean Well
-

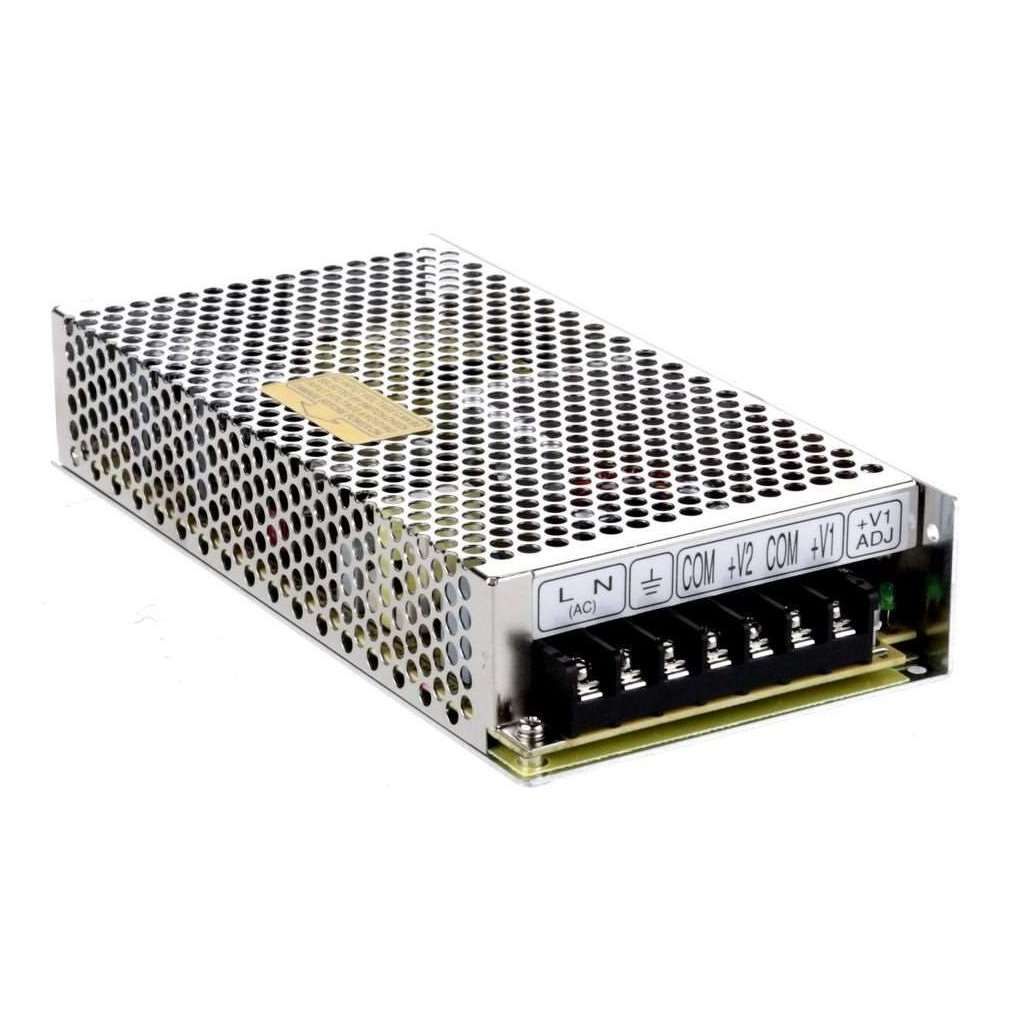

Mean Well RD-125B AC-DC Power Supply | Multi-Voltage Output 5V-4.6AMP & 24V-4.6AMP
Regular price
₹3,186
Regular price
Sale price
₹3,186
Incl. all taxes • Shipping calculated at checkout.
Need a different current rating? Compare all 24V SMPS models and prices.
Price excl. GST
₹2,700.00
GST @ 18% included in above product price
Authorised Distributor
GST Invoice
PAN India Delivery
Fast Dispatch
1-year manufacturer warranty · Burnt or wiring damage not covered · Warranty terms
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Works well with
Mean Well RD-125A 125W Dual Output 5V 7.7A, 12V 7.7A
₹3,186
Mean Well LRS-100-5 SMPS - 5V 18A - 90W Metal Power Supply
₹1,706
Mean Well LRS-75-5 5V 14A 70W Enclosed SMPS Power Supply
₹1,415
Unison 101 ZDA 48 25 01, SSR DC to AC, 25 Amp
₹302
Unison 901 ZDA 48 25 01 AL5, SSR DC to AC, 25 Amp
₹450
Selec UNIX-1-230V, PLC
₹4,490
Description
RD-125B, an enclosed power supply from Mean Well, rated 5 VDC at 4.6 A, 24 VDC at 4.6 A, 125 W output power.
Outputs
5 VDC at 4.6 A, 24 VDC at 4.6 A
Power
125 W
Input voltage
88 to 132V AC / 176 to 264V AC selected by switch 248 to 373V DC(Withstand 300V AC surge for 5sec. Without damage)
Approvals
EN60950-1
Technical specifications
| Make | Mean Well |
| Model | RD-125B |
| Outputs | 5 VDC at 4.6 A, 24 VDC at 4.6 A |
| Input voltage | 88 to 132V AC / 176 to 264V AC selected by switch 248 to 373V DC(Withstand 300V AC surge for 5sec. Without damage) |
| Product Category | Switching Power Supplies |
| Output Voltage-Channel 1 | 5 VDC |
| Output Voltage-Channel 2 | 24 VDC |
| Number of Outputs | 2 Output |
| Output Power | 125 W |
| Open Frame/Enclosed | Enclosed |
| Output Current-Channel 1 | 4.6 A |
| Industry | Industrial |
| Mounting Style | Chassis |
| Length | 199 mm |
| Width | 98 mm |
| Height | 38 mm |
| Approvals | EN60950-1 |
| Subcategory | AC-DC Power Supply |
| Unit Weight | 700 g |
Frequently asked questions about the Mean Well RD-125B
What is the output of the Mean Well RD-125B?
The RD-125B is rated 5 VDC at 4.6 A + 24 VDC output, 125 W.
What input voltage does the RD-125B accept?
The RD-125B accepts an input of 88 to 132V AC / 176 to 264V AC selected by switch 248 to 373V DC(Withstand 300V AC surge for 5sec. Without damage), as listed on this page.
What certifications does the RD-125B have?
Mean Well lists: EN60950-1.
How is the RD-125B mounted?
Mounting style: Chassis.
Where can I download the RD-125B datasheet?
You can download it from the datasheet section on this page: RD-125B datasheet.
Is the RD-125B genuine, and do you provide a GST invoice?
Yes. Voltkart is an authorised dealer of Mean Well, so you receive genuine Mean Well products, and every order comes with a GST invoice.
Can I order the RD-125B in bulk for OEM or wholesale use?
Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.
