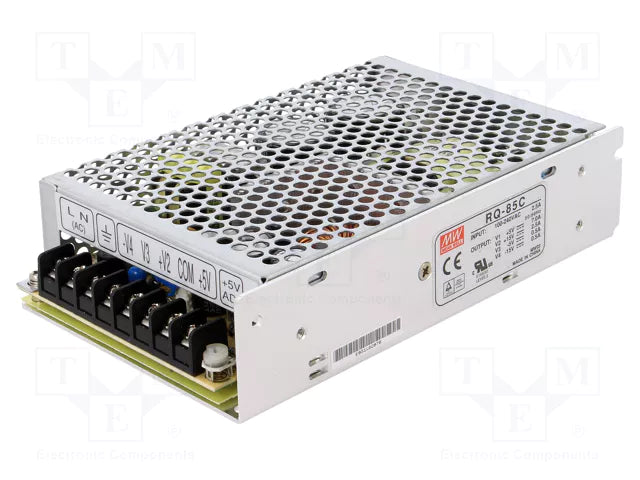

Mean Well RQ-85C 85W Quad Output 5V 7A, 15V 2.5A, -5V 0.5A, -15V 0.5A
Regular price
₹2,970
Regular price
₹5,000
Sale price
₹2,970
Incl. all taxes • Shipping calculated at checkout.
Price excl. GST
₹2,516.95
GST @ 18% included in above product price
Authorized Dealer
GST Invoice
PAN India Delivery
Fast Dispatch
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Works well with
Unison 901 ZDA 60 90 01 CU2, SSR Dc to Ac, 90amp (heat sink not included)
₹1,350
Delta DVP14SS211R PLC 8DI/6DO relay Outpput
₹7,550
EAPL B1DCA-X Cyclic Timer
₹1,425
Unison 901 ZDA 48 40 01 AL5, SSR Dc to Ac, 40amp
₹605
Description
RQ-85C, an enclosed power supply from Mean Well, rated 5 VDC at 7 A, 15 VDC at 2.5 A, -5 VDC at 500 mA, -15 VDC at 500 mA, 85 W output power.
Outputs
5 VDC at 7 A, 15 VDC at 2.5 A, -5 VDC at 500 mA, -15 VDC at 500 mA
Power
85 W
Input voltage
88 to 264V AC 125 to 373V DC (Withstand 300V AC surge for 5sec. Without damage)
Mounting Style
Chassis
Technical specifications
| Make | Mean Well |
| Model | RQ-85C |
| Outputs | 5 VDC at 7 A, 15 VDC at 2.5 A, -5 VDC at 500 mA, -15 VDC at 500 mA |
| Input voltage | 88 to 264V AC 125 to 373V DC (Withstand 300V AC surge for 5sec. Without damage) |
| Product Category | Switching Power Supplies |
| Output Voltage-Channel 1 | 5 VDC |
| Output Voltage-Channel 2 | 15 VDC |
| Number of Outputs | 4 Output |
| Output Power | 85 W |
| Open Frame/Enclosed | Enclosed |
| Output Current-Channel 1 | 7 A |
| Output Current-Channel 2 | 2.5 A |
| Industry | Industrial |
| Mounting Style | Chassis |

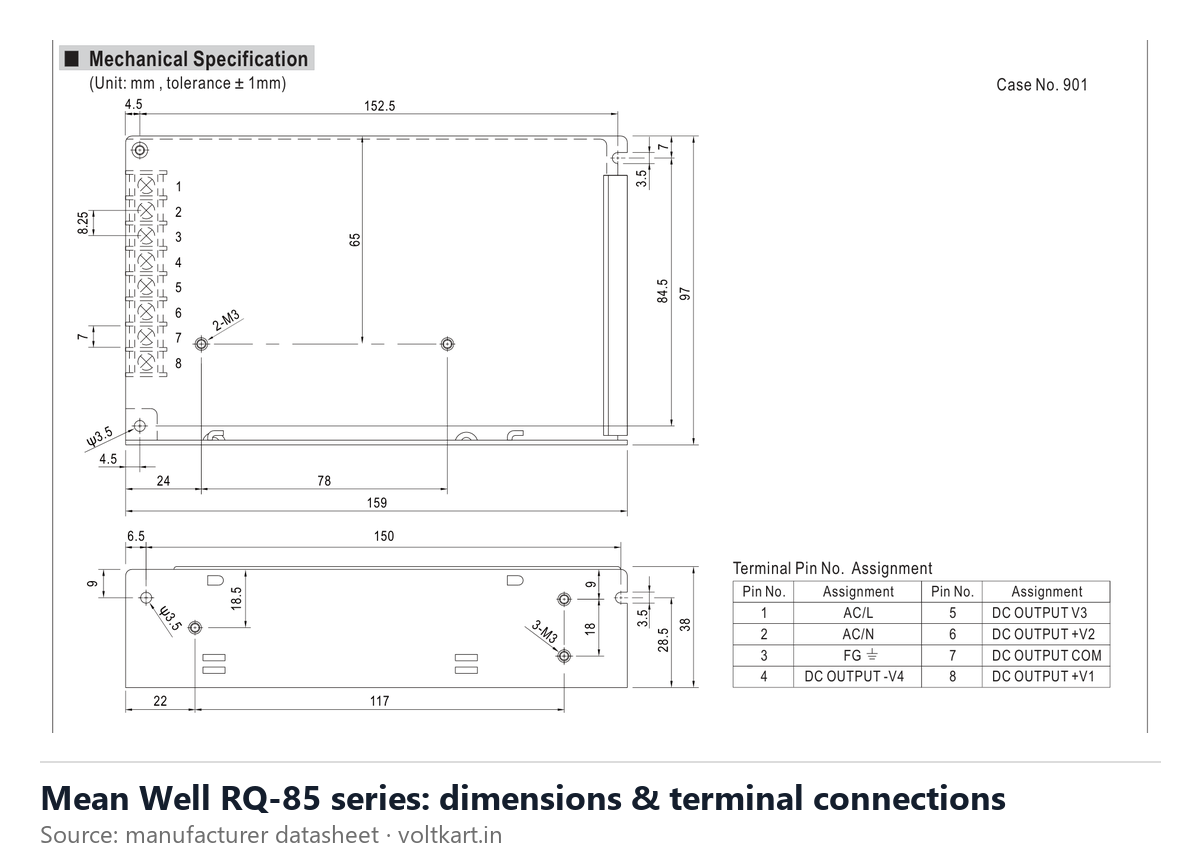

| Length | 159 mm (6.26 in) |
| Width | 97 mm (3.819 in) |
| Height | 38 mm (1.496 in) |
| Output Current-Channel 3 | 500 mA |
| Output Voltage-Channel 3 | - 5 VDC |
| Output Voltage-Channel 4 | - 15 VDC |
| Subcategory | Power Supplies |
| Unit Weight | 600 g |
Frequently asked questions about the Mean Well RQ-85C
What is the output of the Mean Well RQ-85C?
The RQ-85C is rated 5 VDC at 7 A + 15 VDC at 2.5 A + - 5 VDC at 500 mA + - 15 VDC output, 85 W.
What input voltage does the RQ-85C accept?
The RQ-85C accepts an input of 88 to 264V AC 125 to 373V DC (Withstand 300V AC surge for 5sec. Without damage), as listed on this page.
How is the RQ-85C mounted?
Mounting style: Chassis.
Where can I download the RQ-85C datasheet?
You can download it from the datasheet section on this page: RQ-85C datasheet.
Is the RQ-85C genuine, and do you provide a GST invoice?
Yes. Voltkart is an authorised dealer of Mean Well, so you receive genuine Mean Well products, and every order comes with a GST invoice.
Can I order the RQ-85C in bulk for OEM or wholesale use?
Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.
Compare and explore more Mean Well products
Need help choosing the right model?
Voltkart is an authorised dealer of Mean Well. Share your load details and we will help you pick the correct power supply.
Output currents: 5 VDC at 7 A; 15 VDC at 2.5 A; -5 VDC at 0.5 A; -15 VDC at 0.5 A.
