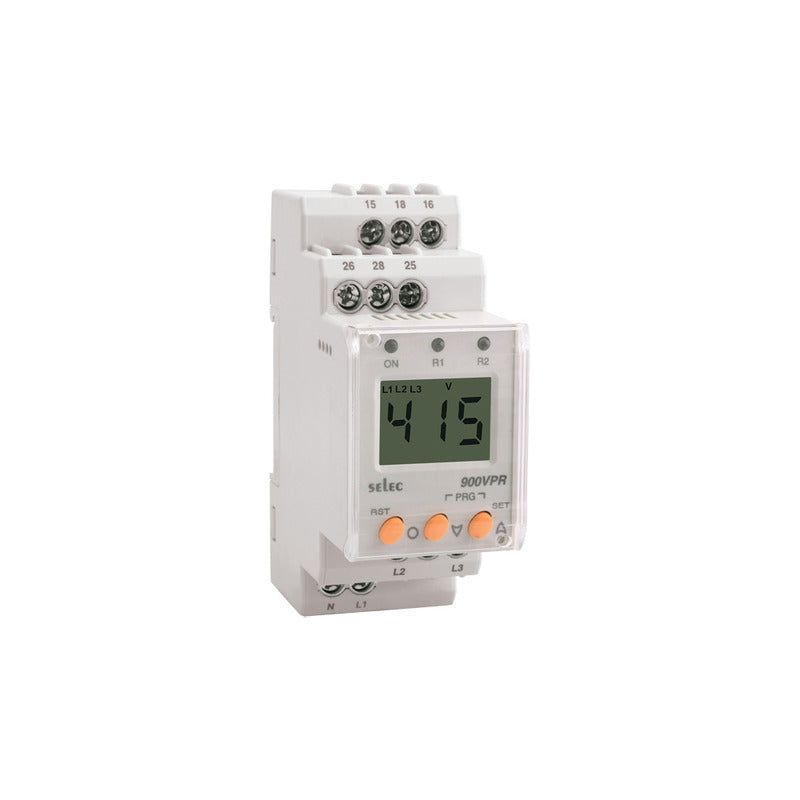

SELEC 900VPR-2-280/520V, Digital Voltage Protection Relay

SELEC 900VPR-2-280/520V, Digital Voltage Protection Relay

Regular price Rs. 1,377.00
Regular price Rs. 2,482.00 Sale price Rs. 1,377.00

Price (Exclusive of GST): Rs. 1,166.95

Sale Sold out
Taxes included. Shipping calculated at checkout.

3Ø-3W, 3Ø-4W, Under / Over voltage, Phase failure, Phase sequence, Phase asymmetry, Under / Over frequency, 2 x 1 C/O, Self powered

BRIEF SPECIFICATIONS

,
Measuring Parameter Under Voltage, Over Voltage, Under Frequency, Over Frequency, Phase Asymmetry, Phase Failure, Phase Sequence
Electrical Connection 3Ø-3W, 3Ø-4W
Display 3 digits Liquid Crystal Display without backlight

Time Ranges
Trip Time Delay : 0-99.9 sec,
Power ON Delay : 2-99.9 sec,
Delay ON Release : 0-99.9sec,
Response Time : < 200ms
Accuracy Trip Voltage: ±1% of Set Value
Output Contact 2 x 1C/O (SPDT)
Output Rating NC: 3A@250V AC, NO: 5A@250V AC (Res)
Operating Voltage 280 to 520V AC (L-L),
160 to 300V AC (L-N)

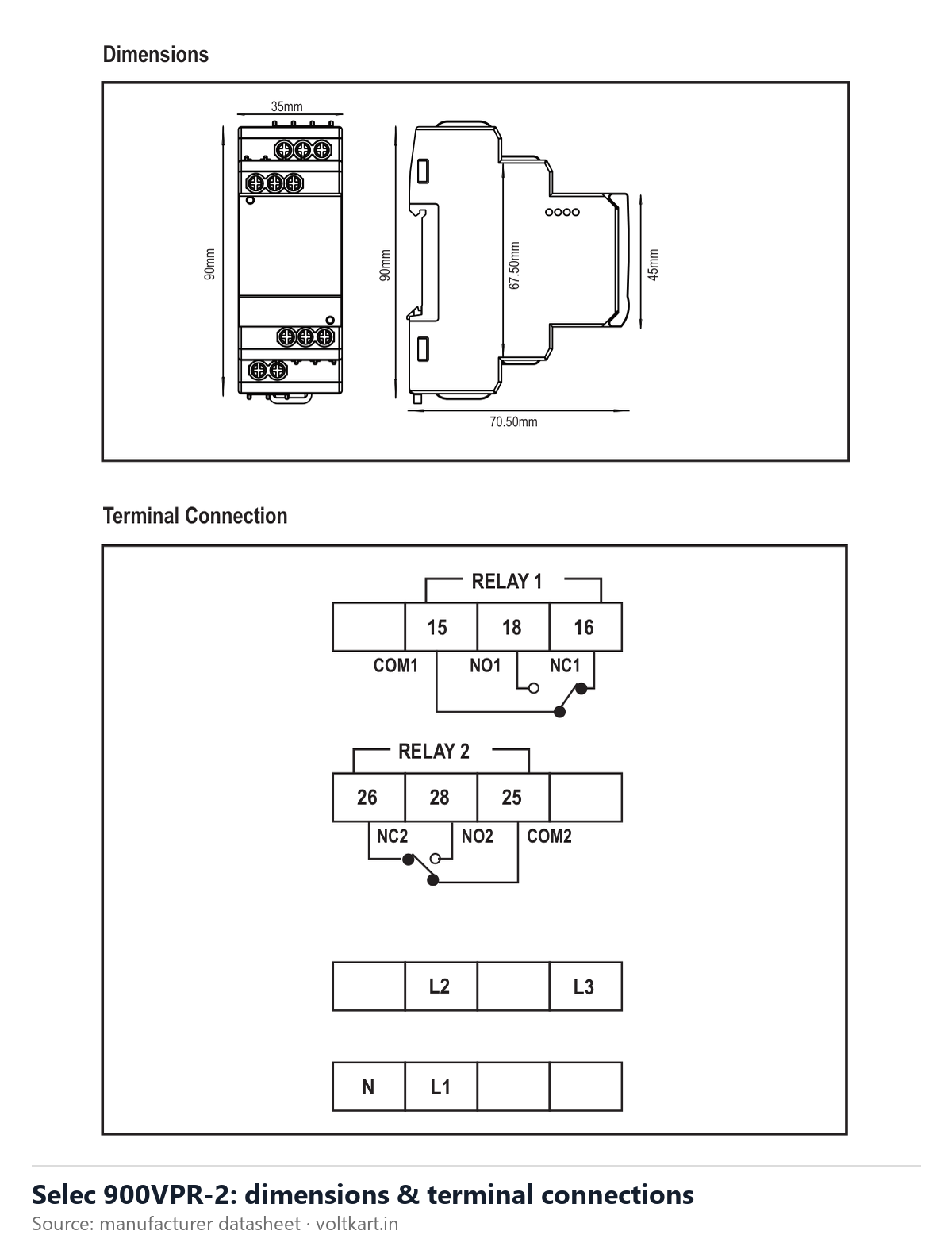

Size 35mm
Mounting Type DIN Rail Mount
Certification CE & UL



View Datasheet
